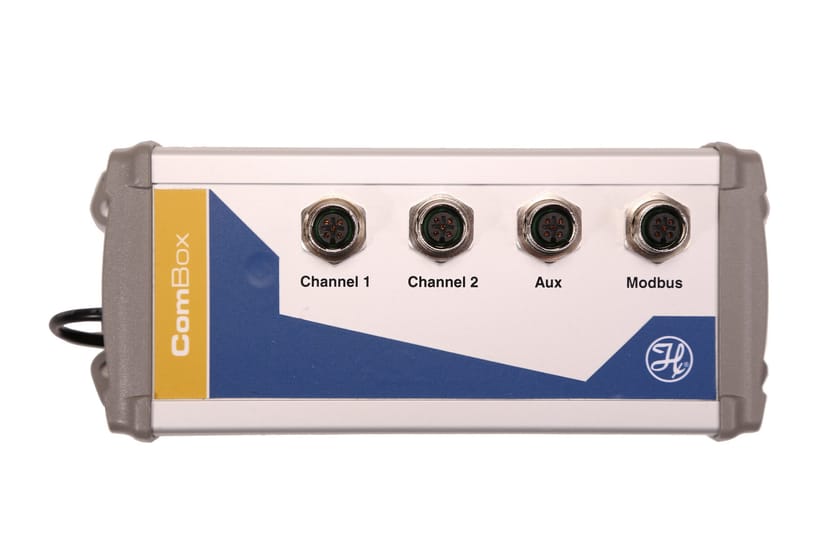

The 2-channel Cell Density ComBox is a USB device that allows you to connect up to two cell density sensors to a Windows PC via its USB port. This is a discontinued product; replacement products can be found in the related products below.
Product Specifications
| Housing Material |
Housing Material
Aluminium, anodized
|
|---|---|
| Measuring Channels |
Measuring Channels
2
|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
190 x 85 x 56 mm
|
| Analog Output |
Analog Output
Optional AUX to Analog Output Box 4-20 mA
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Operating System |
Operating System
Works with Windows 7, 8, 10
|
| Operating Voltage |
Operating Voltage
24 VDC
|
| Power Supply |
Power Supply
24 VDC; 2.5 A
|
| Operating Humidity |
Operating Humidity
0 to 80 %
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 45 °C
|
Spec. Version B
