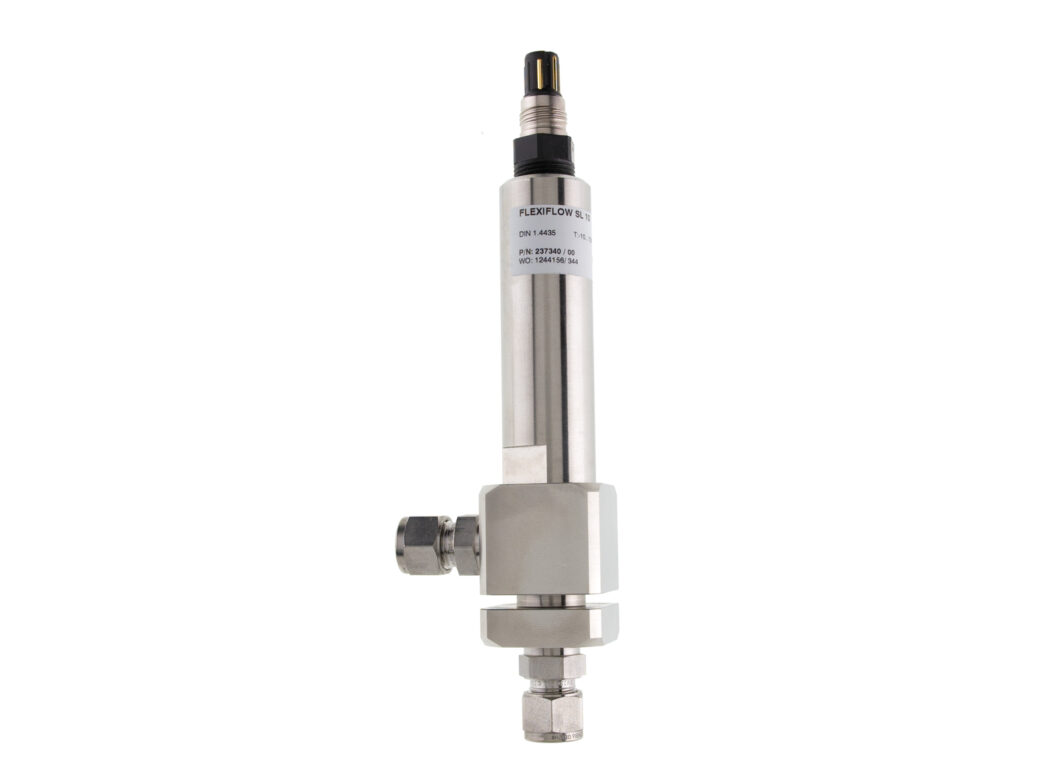

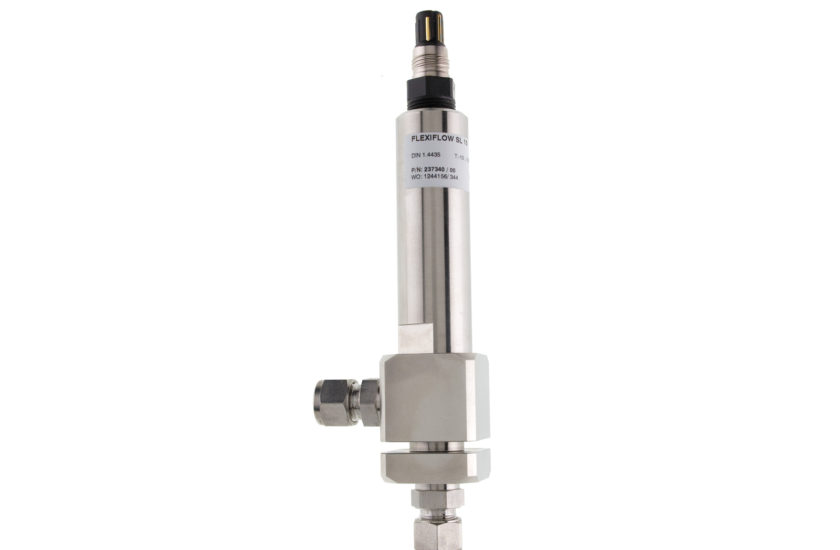

FlexiFlow SL 10
The FlexiFlow is a flow-through cell.
It can be used in all cases where parameters as pH, oxygen or cell density must be reliably measured in the flow of a pipe.
Sample is bypassed into the flow cell for measurement where in-line measurement is not possible or desired.
Found in these product categories:
Part/REF # 237340
-
(In Stock)(In Stock)Stock status is updated daily. For real-time status, please contact us.
Specifications
| For Sensors with |
For Sensors with
120 mm, 12 mm, PG13,5
|
|---|---|
| Diameter |
Diameter
65 mm
|
| Process Connection |
Process Connection
Swagelok 10 mm
|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
| Max. Diameter |
Max. Diameter
65 mm
|
| Max. Total Length |
Max. Total Length
175 mm
|
| Min. Total Length |
Min. Total Length
175 mm
|
Additional specifications
| Internal Volume |
Internal Volume
Approx. 5.5 mL
|
|---|---|
| Mounting |
Mounting
Bottom Screw Mount (4 pcs)
|
| Weight |
Weight
1200 g
|
| Serial Number |
Serial Number
No
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
No
|
| Autoclavable |
Autoclavable
No
|
| CIP |
CIP
No
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 125 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
16 bar
|
