Firmware Updates for Arc Products
Hamilton Arc sensors and hardware are continuously evolving. These products rely upon internal electronics controlled by embedded firmware. The sensor firmware may be periodically updated to include new features or fix potential bugs. ArcAir software is the primary tool that enables users to update to new firmware on sensors.
The table below provides links to the latest firmware for download. If your sensor or hardware is currently at the latest firmware level then there is no need for a firmware update. The short video below provides an example of how firmware updates are done.
NOTE - The Arc Modbus OPC Converter has two options for firmware updates. The SD-Card firmware link relies upon a micro SD card for firmware installation. The Web Interface firmware link uses an Ethernet connection to the service interface port of the converter from a separate PC. Details on each installation method are provided in Chapter 9 of the OPC Converter Operating Instructions.
| Arc Products | Product Refs | Firmware Download Link | Release Notes |
|---|---|---|---|
| Arc Wi Wireless BT Adapters | 243460 243470 |
WI0MB007 | Click to read |
| Arc USB Wireless Converter BT | 243499 242333 |
WLCGB004 | Click to read |
CO2NTROL | 10087810-xx | COOUM003 | Click to read |
| Conducell 4UxF | 243590-x1xx | CONUM034 | Click to read |
| Conducell UPW | 243578 243579 |
CPWUM033 | |
| Arc Module Cond-P SU | 10071707 | ||
| ORP | 243060, 243061, 243062, 243063, 243050, 243051, 243052, 243053 |
ERXUM034 | |
| pH | 242428-x3xx 238633-x3xx 243632-x3xx |
EPHUM034 | Click to read |
| Arc Module SU pH | 243233 | ||
| OxyFerm / OxyGold | 24310x 24311x 243140-xx |
EDOUM034 | |
| VisiFerm RS485 ECS | 10118255-1xxx | Click to read | |
| VisiFerm Arc and ECS | 243666-1xx, 243666-2xx | ODOUM043 | Click to read |
| VisiFerm DO SU | 10078255 10087920 |
ODOUM074 | Click to read |
| VisiTrace RS485 | 10140043-1xxx | LDOUM103 | Click to read |
| VisiTrace | 243560 243561 |
LDOUH006 | Click to read |
| VisiTrace mA | 10068709-xxxx | Click to read | |
| VisiPro | 24340x 24342x 243667-xxx |
ODOUH009 | Click to read |
| VisiFerm mA | 10070760-xxxx | Click to read | |
| VisiWater | 10066566 243650 |
ODOUM043 | Click to read |
| Incyte Arc | 243950-021x 243950-031x |
Click to read | |
| Dencytee Arc | 10064919-xx | Click to read | |
| Arc Module Incyte-P SU | 10073158 | No Updates | |
| Arc Modbus OPC Converter | 10089359 | 1.10.0 (Web) | Click to read |
| Arc Modbus Profibus/Profinet Converters | 10116586 243555 | 4.2 (Profinet script + GSDML) 4.2 (Profibus script + GDS) | Click to read |
ArcAir Software - Firmware Update Example
How do I connect to hardware?

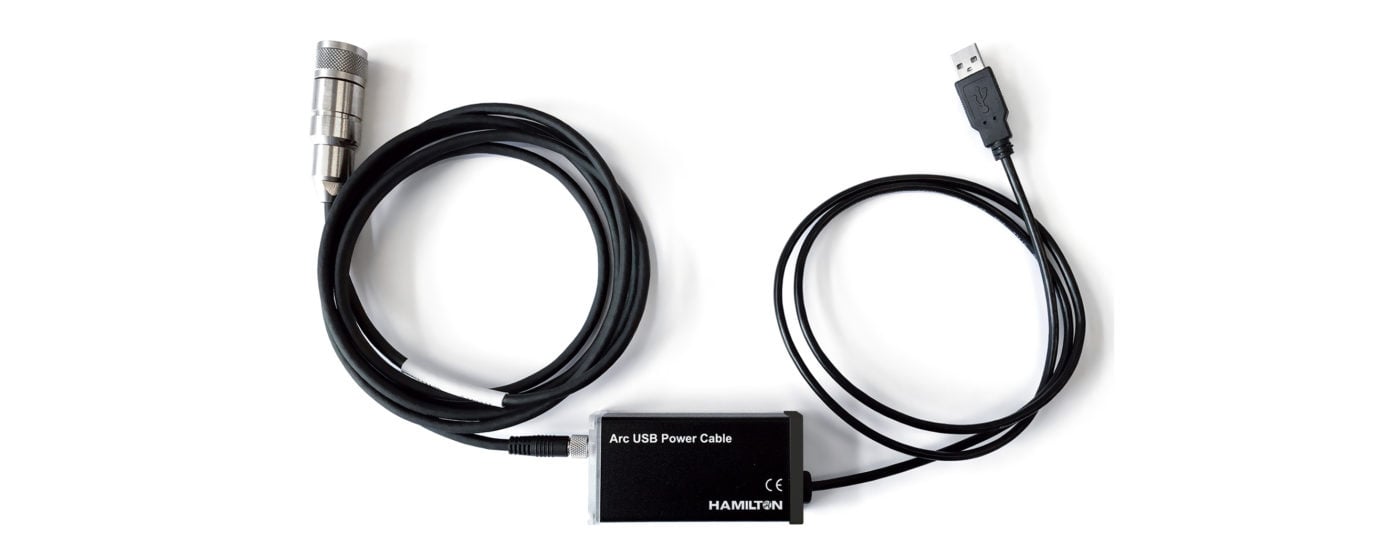

Connecting hardware to the computer is done through the Arc USB Power Cable. An example is shown below. There are two versions of the Arc USB Power cable
Cable Ref | Description | Notes |
|---|---|---|
| 243490-01 | Arc USB Power Cable VP8 | For all Arc sensors with VP connectors, VisiFerm ECS, and Wi 1G Adapters (243460) |
| 243490-02 | Arc USB Power Cable M12 | For Wi 2G Wireless Adapter (243470) with M12 8-pole connector |
Additional connnection considerations: VisiFerm mA, VisiTrace mA, VisiPro, and VisiTrace products do not require a wired connection to the computer. These products can be updated using ArcAir software and Bluetooth wireless communication.
Updates to the Arc Wireless USB Bluetooth Converter are accomplished through the USB port on the computer (no cable is needed).
If you have questions about firmware or would like additional help then Hamilton Technical Support is available at the link below to answer your questions.
