|Termination||Removable Needle (RN)|
|Gauge||No Needle Included|
|Point Style||No Needle Included|
|Needle Length||No Needle Included|
|Fluid Path||SST, borosilicate glass|
|Pressure||2000 psig (137.9 bar)|
|Maximum Temperature||115°C / 239°F|
|Minimum Temperature||10°C / 50°F|
|Barrel Inner Diameter||0.041 inches (1.03 mm)|
|Barrel Outer Diameter||0.305 inches (7.75 mm)|
|Std Needle Dead Volume||N/A|
|Sales Quantity||1 syringe per pack|

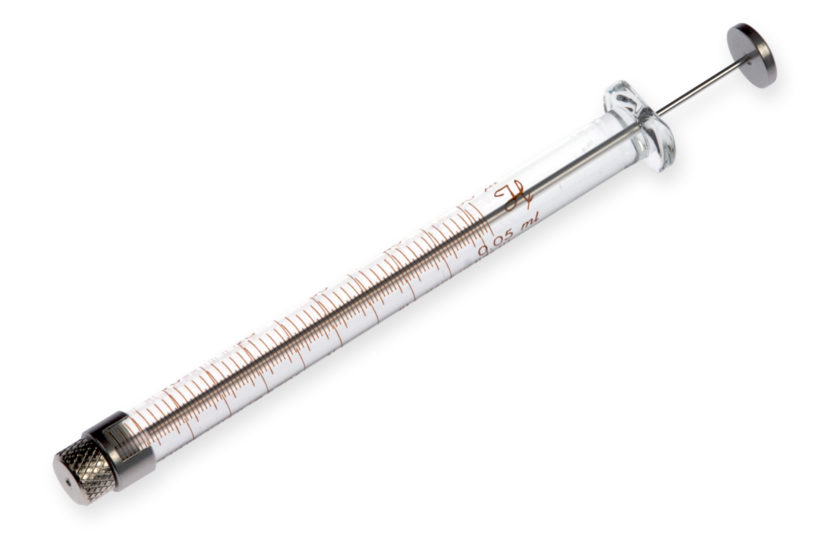

Specification Sheet50 µL, Model 705 RN SYR, NDL Sold Separately
