ALLDROP®
Ultra-Precise
<3% CV
Consistent & Reliable Dosing
No Manual Calibration
Real-Time Drop Monitoring
Full traceability
Built for Automation
Plug & Play Integration
Compact. Modular. OEM-Ready
Precision Meets Traceability—Effortlessly
Ensure precise, traceable, and GxP-compliant liquid dispensing with the ALLDROP®, designed for high-precision manufacturing processes, research, and easy system integration.
/
Use case
How It's Used
Precise microdispensing for regulated industries
Discover how the ALLDROP® nanoliter dispenser enhances pharmaceutical vial filling and clinical trial processes by delivering ultra-precise volumes, improving yield with real-time optical verification. ALLDROP ensures full traceability, reduces reagent waste, and streamlines compliance in GMP-regulated production environments.

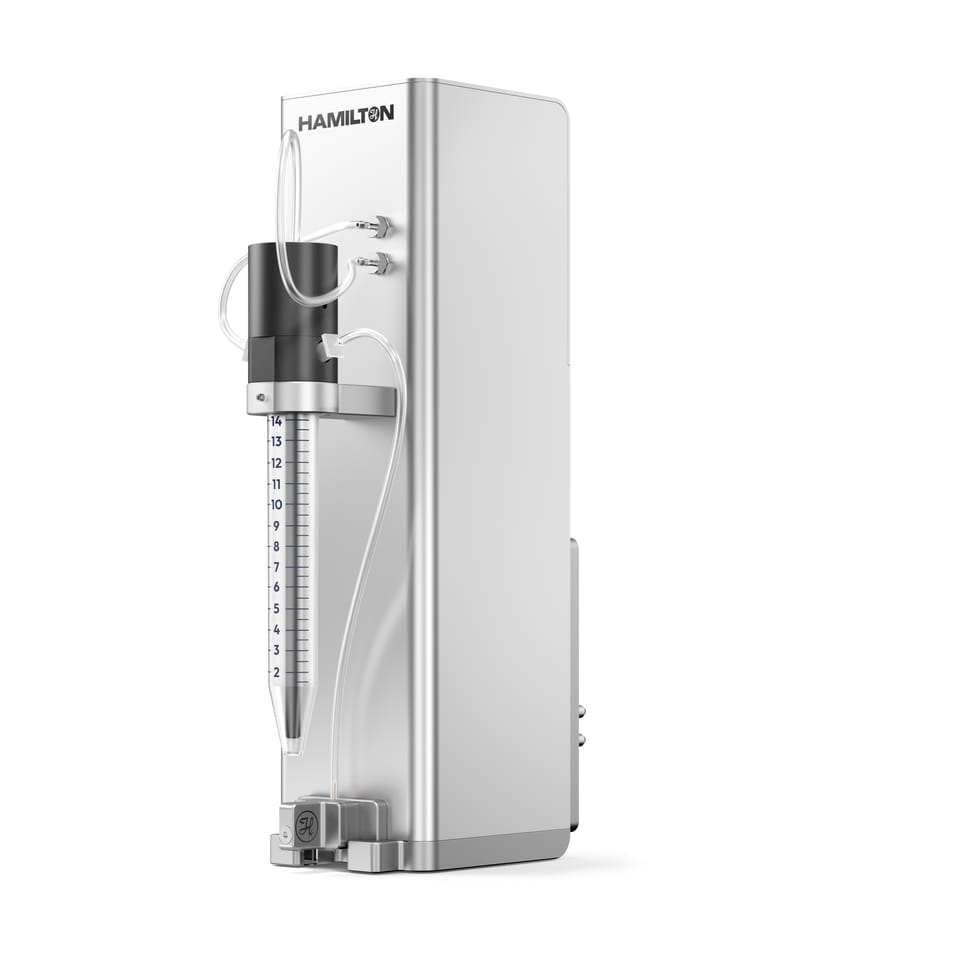

ALLDROP Printhead
Precision Dispensing for Critical Workflows

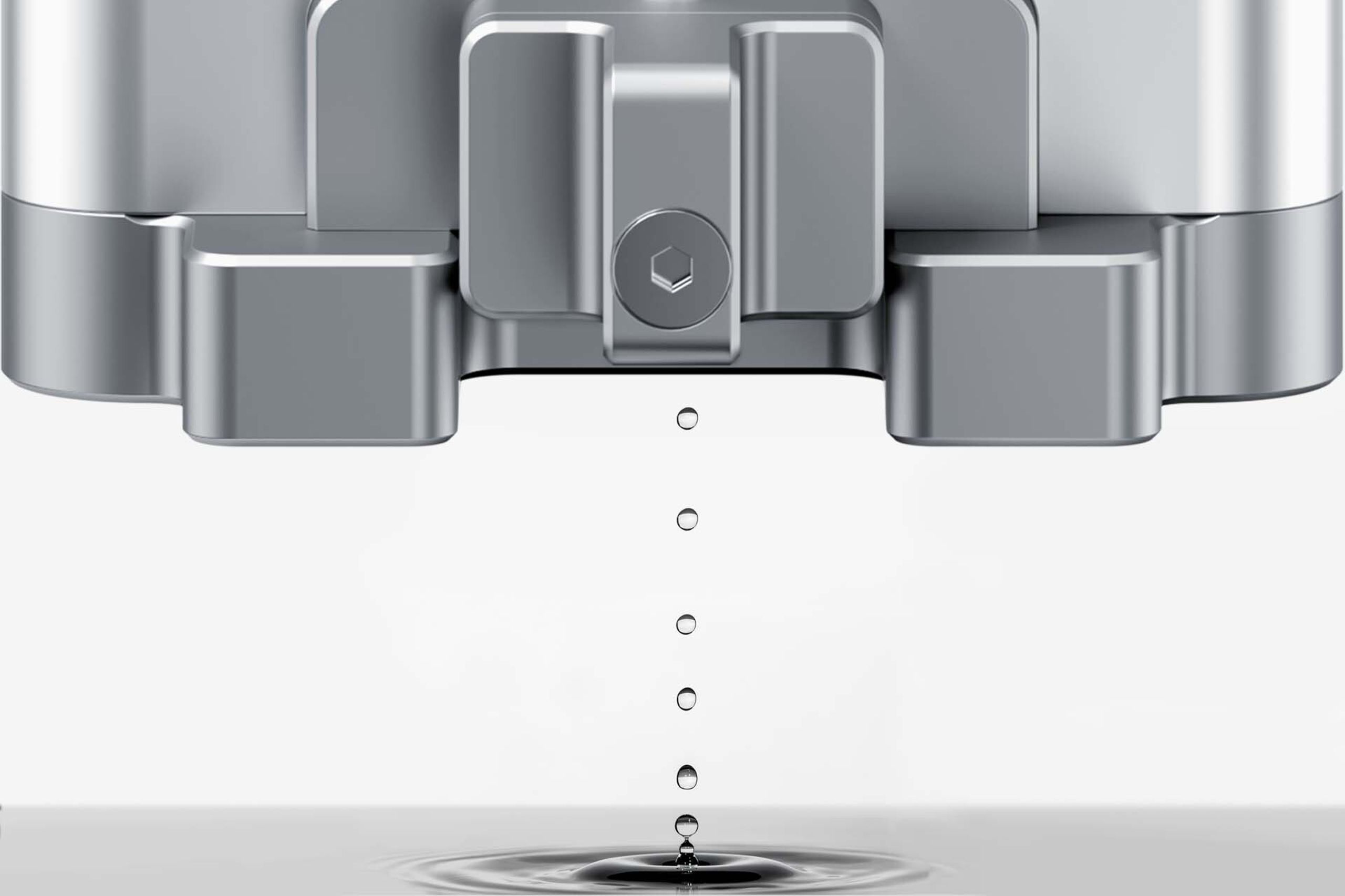

ALLDROP is a precision dispenser engineered for nanoliter-scale accuracy in GMP, biotech, and diagnostic settings. Designed for automation engineers, production managers, and quality control teams, it ensures reliable performance, boosts throughput, and brings enhanced confidence to demanding liquid handling workflows.
Real-Time Monitoring and Full Traceability
Delivering consistent 20–70 nL droplets with <3% CV, ALLDROP uses in-flight optical imaging to monitor each droplet in real time. The system automatically logs volume, timestamp, operator ID, and droplet image to support full traceability and compliance with GMP and ISO 23783 standards.
Seamless Integration and Total Control
Automation-ready by design, ALLDROP includes a dedicated, user-friendly interface that provides full visibility and control over all dispensing parameters. Its language-agnostic gRPC protocol enables fast integration into any scheduler, making it ideal for building custom workflows or scaling up production lines with confidence.
Common applications Manufacturing, Point of Care Tests, Microneedle Coating
Featured Technologies
-
Ultra-Low VolumePIPEJET®
PIPEJET® non-contact nanoliter dispensing technology
-
Ultra-Low VolumeSMARTDROP®
For automated volume calibration
Delivers nanoliter volumes with high accuracy, ensuring minimal waste and cross-contamination.
Each droplet is imaged and analyzed in real-time, providing full traceability and facilitating compliance with regulatory standards.
ALLDROP® includes a user interface with gRPC-based communication, enabling easy control and quick handover to any scheduler or automation platform.
Built-in ISO 23783 support and automated data logging streamline preparation for audits and reduce time spent on documentation.
Automatic priming and stable pressure control reduce reagent loss to under 0.5 µL, saving materials and supporting lean manufacturing.
Robust, Automation-Ready Printhead Hardware
ALLDROP’s external and system-level hardware is built for industrial performance and integration. With a stainless steel printhead casing, magnetic quick-swap components, and seamless connectivity to its CONTROLBOX, ALLDROP® combines ruggedness and precision. Tool-free maintenance, cleanroom compatibility, and secure gRPC-based communication ensure that the system meets the needs of automation engineers, QC professionals, and production teams. Designed for speed, reliability, and traceability, ALLDROP® simplifies implementation in regulated workflows.
1

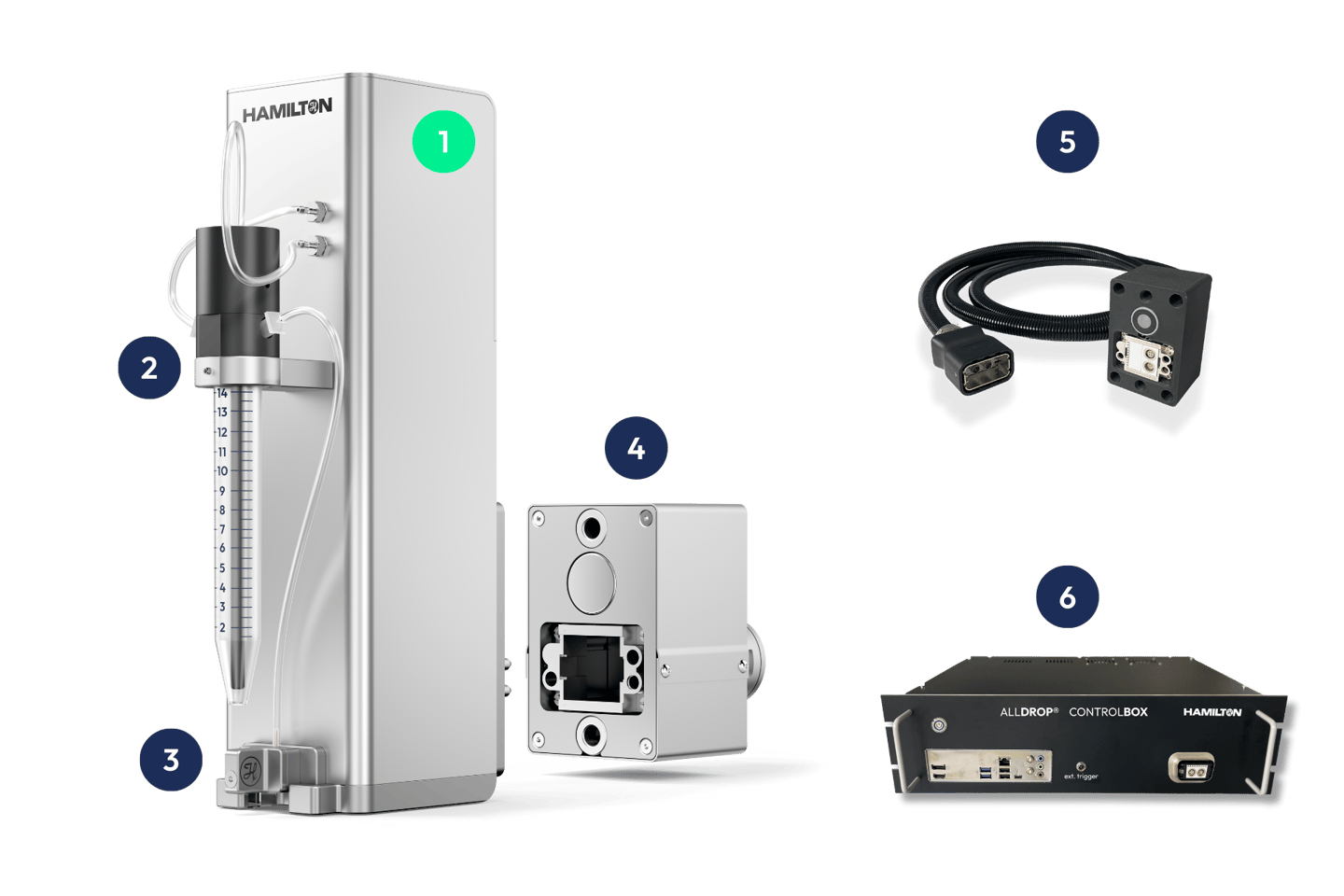

Stainless Steel Housing
The cleanroom-ready stainless steel housing simplifies maintenance and supports hygienic workflows. The printhead is easy to remove for cleaning or changeovers.

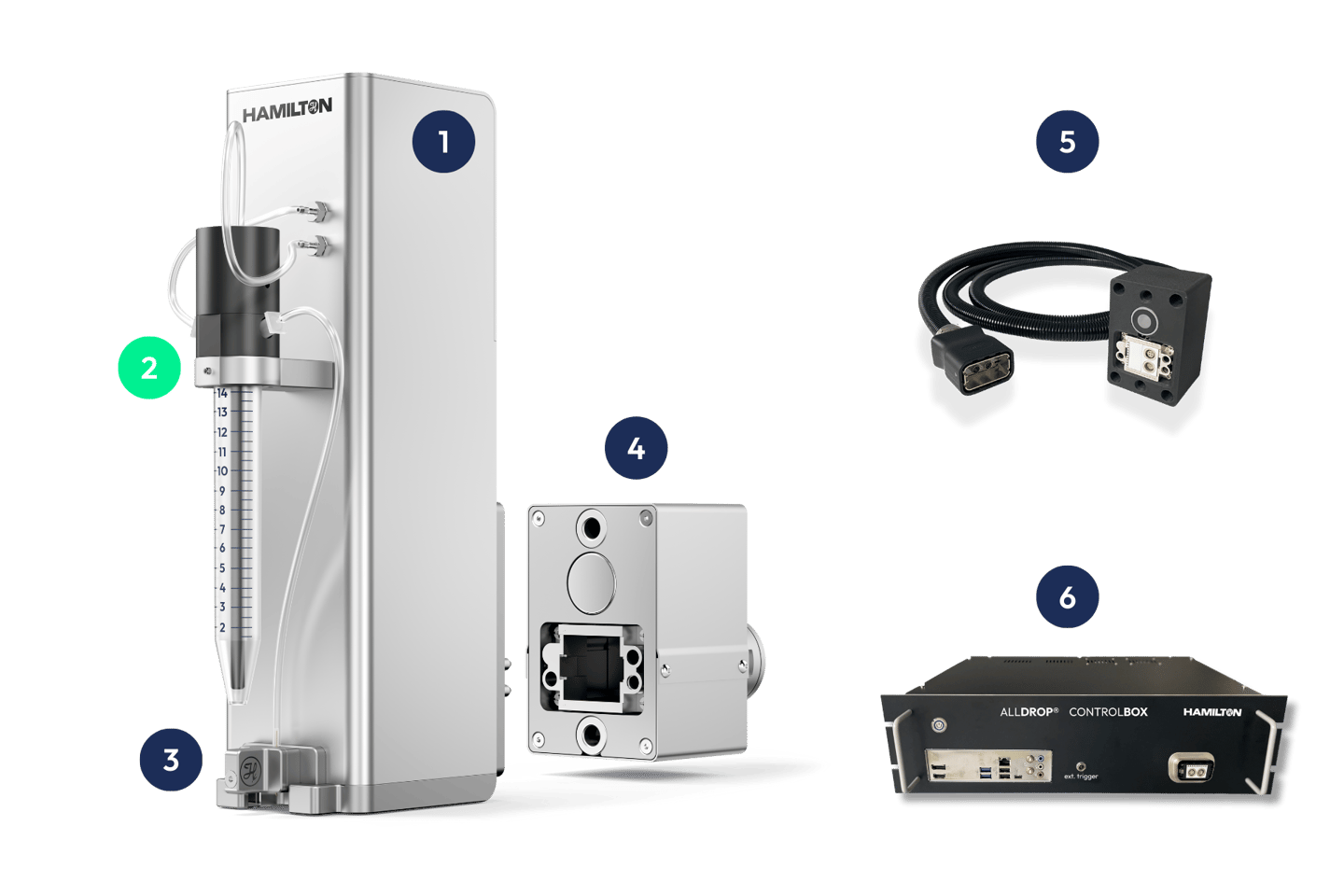

2
Fast Reservoir Exchange
The reservoir connects magnetically and independently from the actuation mechanism, allowing fast, tool-free swaps and preventing cross-contamination.

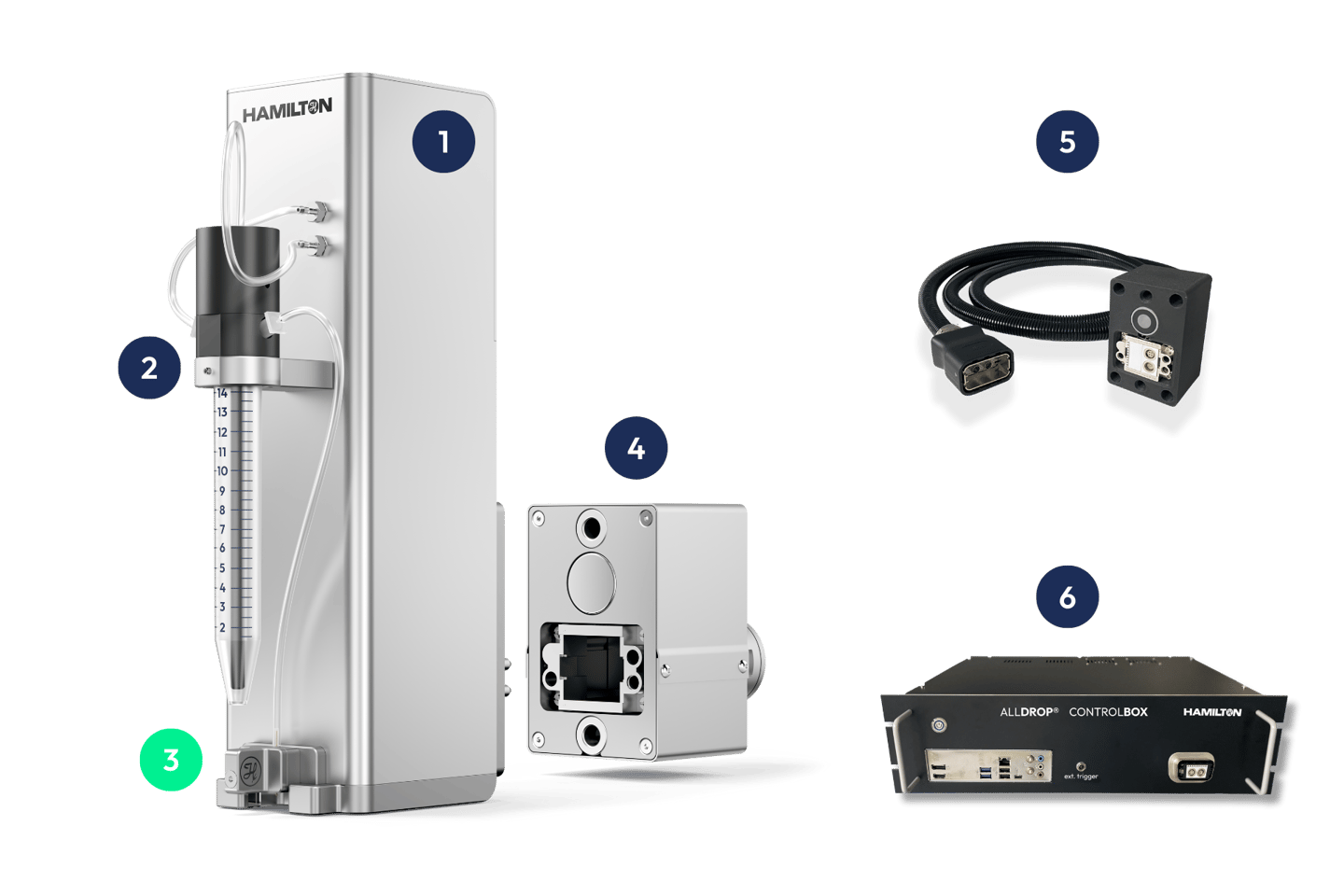

3
New Dosing Pipe Holder
The Quick-swap magnetic system allows fast, tool-free changes between liquids. The actuator is separated from fluid pathways, preventing cross-contamination.
4

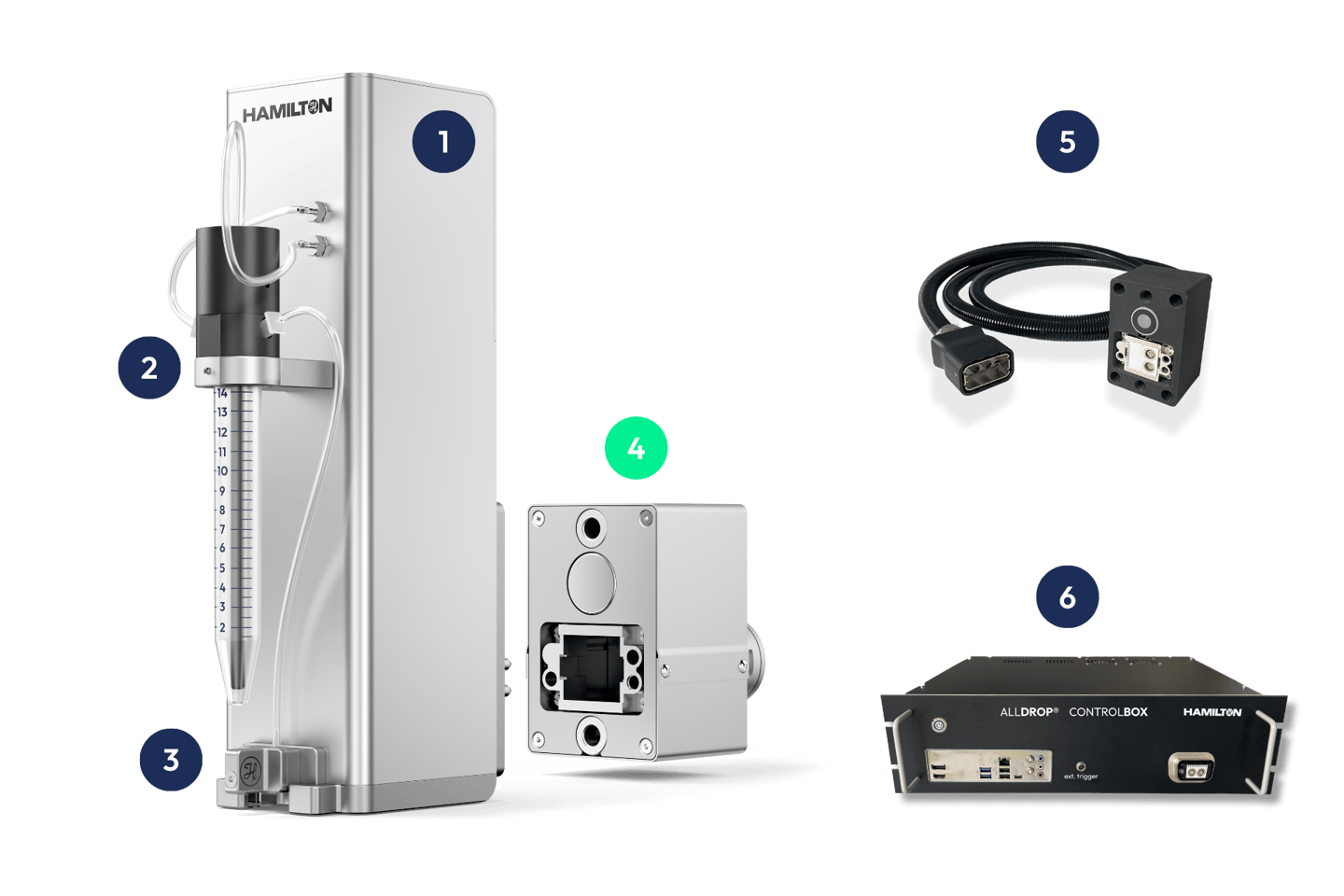

Magnetic Coupling System
The magnetic coupling enables quick, tool-free disconnection of the printhead from the CONTROLBOX, ideal for fast maintenance, liquid changes, or accessing hard-to-reach printheads within enclosed or integrated automation setups.

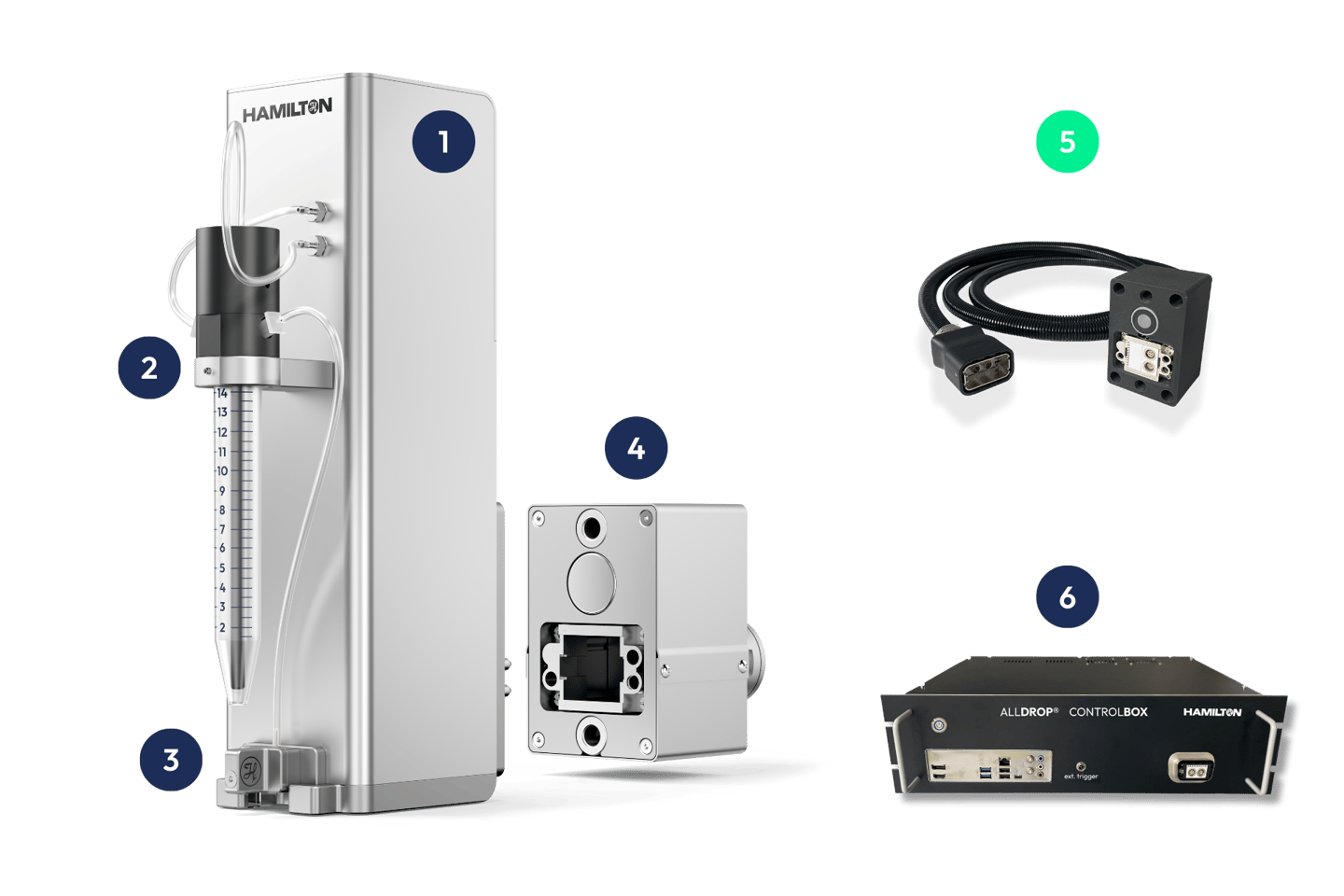

5
Simple Connectivity
The ALLDROP printhead quickly and easily integrates via a dedicated data/power cable, ensuring fast, reliable signal transmission for automated workflows.

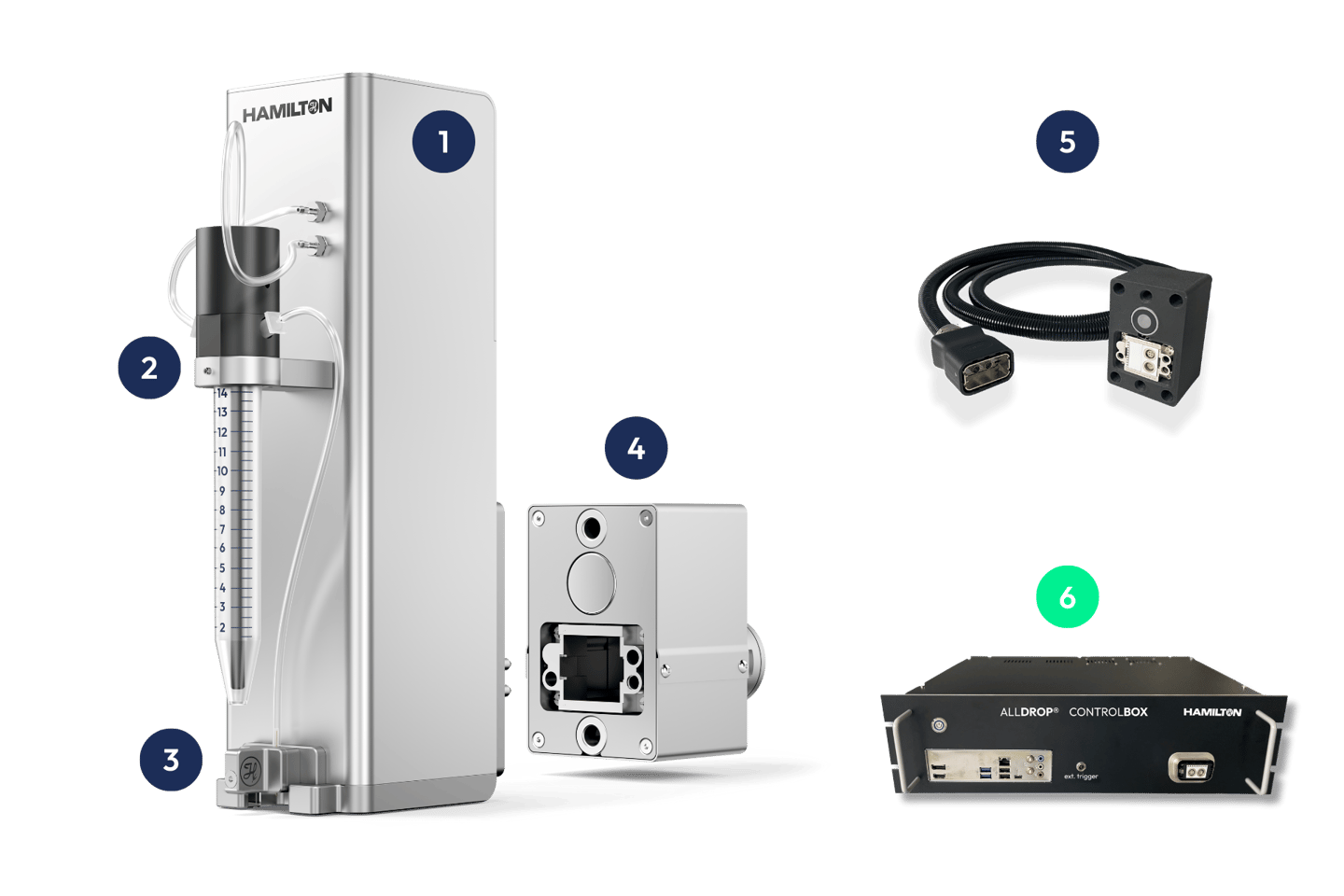

6
CONTROLBOX Automation Hub
The CONTROLBOX operates the printhead and supports gRPC-based communication, accepting commands from various scheduling sources.
Intelligent Dispensing with Real-Time Control
Inside the ALLDROP system, advanced components work together to deliver ultra-precise, contact-free nanoliter dispensing. The PIPEJET® actuator ensures droplet consistency with low dead volume, while the SMARTDROP optical monitoring system analyzes and logs every droplet in-flight. SMARTRESERVOIR provides stable pressure regulation across a variety of liquids. Together, these internal technologies power ALLDROP’s high-performance, traceable dispensing—ideal for GMP, biotech, and diagnostic applications where accuracy and data integrity are critical.

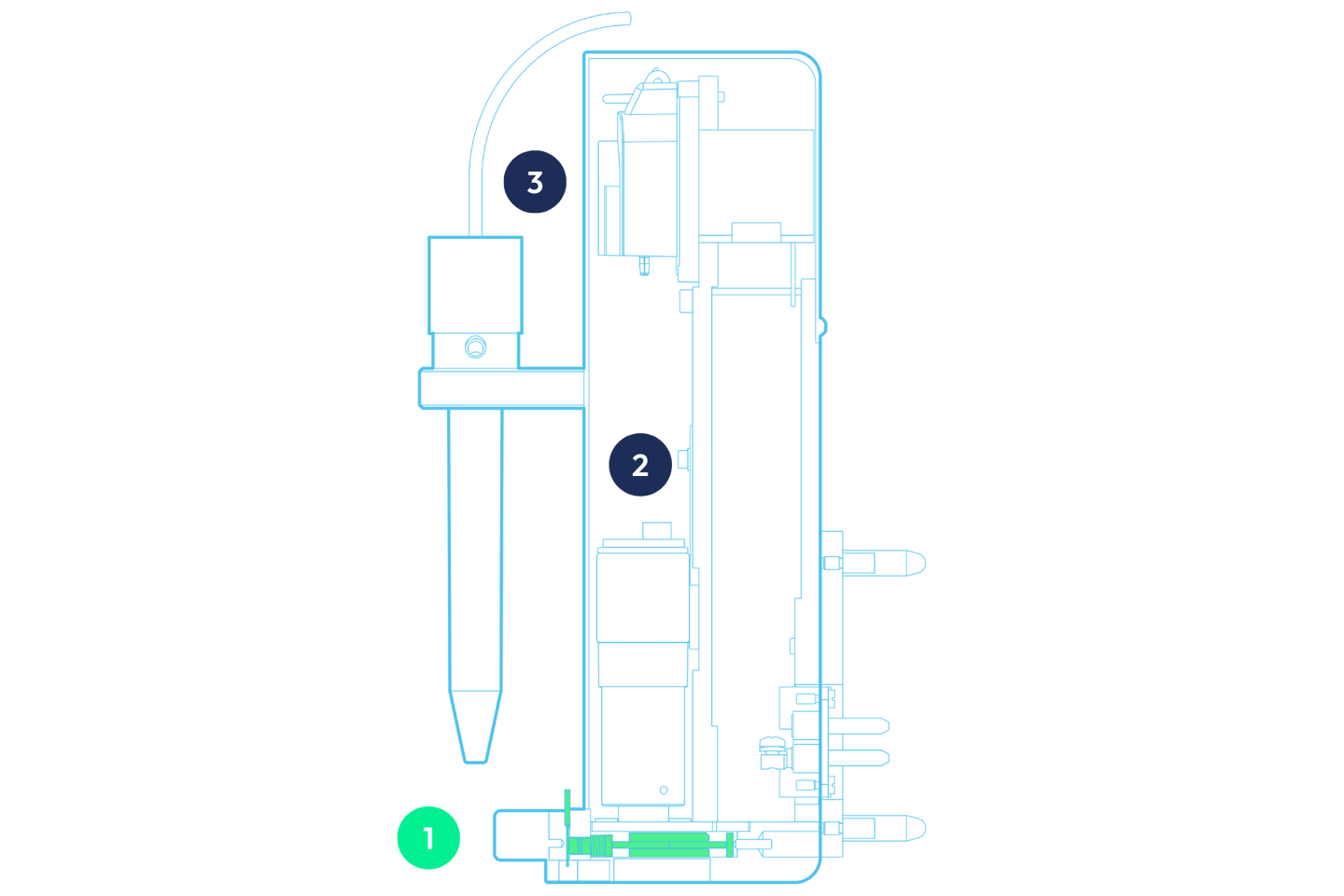

1
Drop-on-demand dispensing
Utilizes PIPEJET technology to ensure precise, contact-free liquid dispensing, reducing contamination, enhancing sample integrity, and increasing workflow efficiency.
2

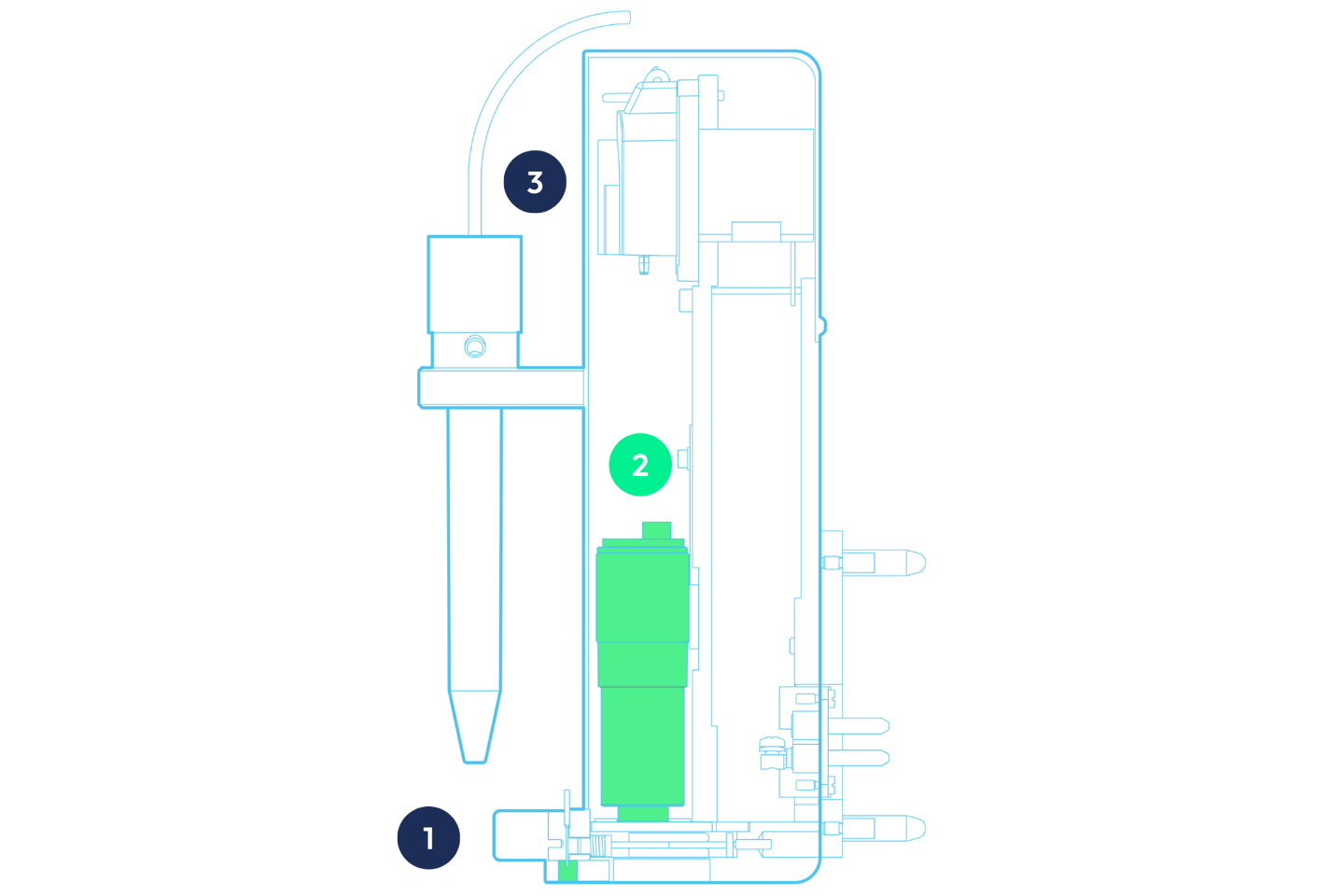

SMARTDROP Optical Monitoring
Each droplet is analyzed and logged in real time, enabling automated printing and calibration and providing comprehensive documentation for regulatory audits and Good Manufacturing Practices (GMP) compliance.

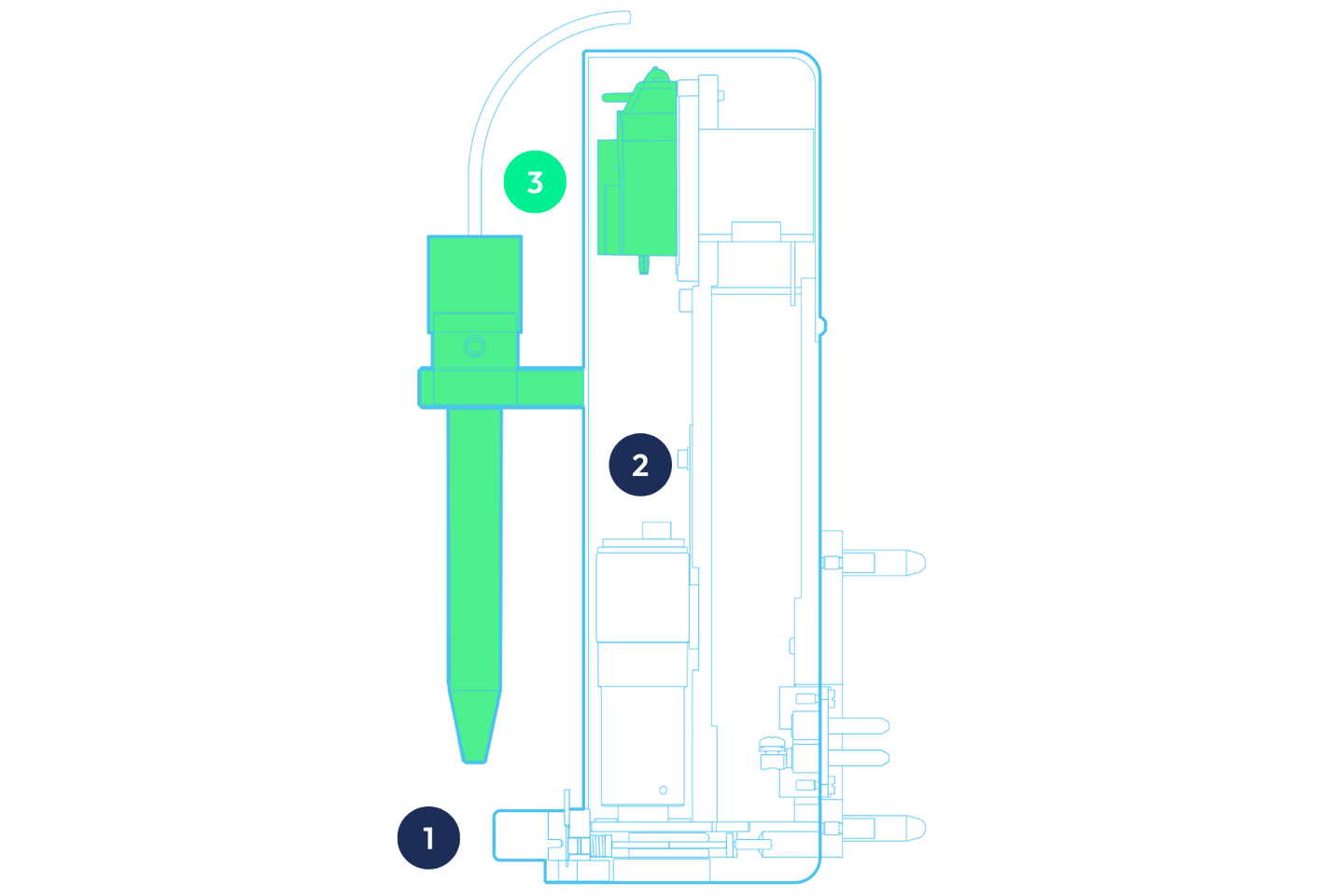

3
Stable Pressure Control System
SMARTRESERVOIR maintains consistent dispensing performance by regulating pressure, minimizing fluctuations, and ensuring high-precision dosing.
Intelligent Dispensing with Real-Time Control
Inside the ALLDROP system, advanced components work together to deliver ultra-precise, contact-free nanoliter dispensing. The PIPEJET® actuator ensures droplet consistency with low dead volume, while the SMARTDROP optical monitoring system analyzes and logs every droplet in-flight. SMARTRESERVOIR provides stable pressure regulation across a variety of liquids. Together, these internal technologies power ALLDROP’s high-performance, traceable dispensing—ideal for GMP, biotech, and diagnostic applications where accuracy and data integrity are critical.
1-Drop-on-demand Dispensing
Utilizes PIPEJET technology to ensure precise, contact-free liquid dispensing, reducing contamination, enhancing sample integrity, and increasing workflow efficiency.
2-SMARTDROP Optical Monitoring
Each droplet is analyzed and logged in real time, enabling automated printing and calibration and providing comprehensive documentation for regulatory audits and Good Manufacturing Practices (GMP) compliance.
3-Stable Pressure Control System
SMARTRESERVOIR maintains consistent dispensing performance by regulating pressure, minimizing fluctuations, and ensuring high-precision dosing.
ALLDROP® Specifications
ALLDROP Specifications
PrintSystem Dimensions
- Height
- 26 cm (10.24 in)
- Width
- 7.1 cm (2.8 in)
- Depth
- 11 cm (4.33 in)
General Specifications
- Weight
- 4 kg
Volume Range 1
- Auto Calibration
- 25-70 nL
Dispensing Performance
- Viscosity Range 2
- 0.5-150 mPa.s
- Dispensing Frequency 3
- 20 Hz
Process Control
- SMARTDROP
- Included
Control & Software Environment
- Computer
- Integrated
1 Liquid dependent
2 At room temperature
3 Performance values based on low-viscosity fluids; results may vary with different liquid properties.
