PSD SmartSense Graphical User Interface

The separation structure is integrated within the transfer tube between two Swivel Units. During cell transfer, mechanical forces gently dissociate cell aggregates into single cells without compromising cell viability.
This process generates a homogeneous cell suspension, enabling consistent cell distribution during seeding of new target flasks.

The Swivel Unit securely clamps T-Flasks and Triple Flasks, establishing a stable and closed handling interface during automated processing. The motion system is designed to replicate familiar manual handling patterns used by cell biologists.
Gentle liquid addition protects adherent cell layers during media exchange, while controlled, scientist-inspired mixing and swivel movements support efficient cell detachment during passaging. This combination enables reliable and reproducible flask handling across routine cell culture workflows.

The MagPearl closure technology enables sterile fluid transfer along the entire fluid path, from tubing connections to the T-Flask interface, through magnetically actuated valves. By eliminating open fluid paths and minimizing mechanical contact points, the system maintains a closed liquid handling environment during routine cell culture operations. This design enables sterile processing and reliable liquid transfer without the need for laminar airflow.

The intuitive graphical user interface (GUI) makes operation as simple as a smartphone app. Get started developing, editing, and running protocols without the need for automation or coding expertise.

This flexible system enables accurate sub-microliter to microliter dispensing for a wide range of liquid types and volumes, ideal for reagents, buffers, or assay components on virtually any substrate.

A camera mounted on top of the workstation detects and identifies labware placed on the deck. This visual recognition simplifies the process of programming new protocols by eliminating the need to scroll through long lists of options. It also ensures accurate verification of labware during protocol execution, helping to prevent loading errors.

Clot Detection pipetting channels are equipped with a pressure sensor that allows for pressure monitoring during aspiration and can detect blocked tips due to clots.

Channels are equipped with capacitance sensors that detect the liquid level through capacitive Liquid Level Detection (cLLD). Hamilton’s black conductive CO-RE tips facilitate capacitance sensing with the conductivity properties tailored for the capacitive liquids.

BiOS automation modules are designed to move simultaneously, in parallel, to complete jobs faster. Additional modules, such as a second picker, reduce job processing time and act as a built-in "spare" to minimize downtime.

Hamilton’s SIJET enables ultra-precise, non-contact picoliter dispensing. Its silicon-glass element ensures accuracy and contamination-free use across pharma, life science, and industrial needs.

Retractex C sensor housings meet rigorous quality standards set by international bodies such as ATEX, IECEx, UKEx, and EAC Ex.

Select stainless steel or plastic housings, along with your choice of sealing materials, to withstand high-pressure applications or tough chemicals.

Retractex C is well-suited for daily use in chemical environments thanks to minimal seal wear from its short 36 mm stroke and in-place cleaning.

Integrated safety features, including “no sensor – no insertion” and a leakage-check window, protect operators and equipment.

The patented HyCIP system uses the Ingold socket as a cleaning chamber, delivering exceptional in-place cleaning and sterilization.

With low seal wear, complete cleanability, and high durability, Retractex B is well-suited for demanding industrial environments.

Free yourself from liquid classes. SMARTDROP® expertly calibrates each channel for consistent, automated volume adjustments, handling various liquid properties, including different viscosities.

This innovative system ensures precise, non-contact dispensing of liquid samples onto any substrate including microtiter plates, achieving unparalleled accuracy and efficiency.

With easy, rapid installation, customizable settings, and automated electro-pneumatic control, RetractoControl 2 supports chemistry, pharmaceuticals, and more.

By automating routine cleaning cycles and retracting the sensor when not needed, the sensor’s overall lifetime may be enhanced in your process.

RetractoControl 2 takes over sensor retraction and cleaning so that users can focus efforts on high-value activities and the process can continue uninterrupted.

Our web-based INSTINCT S automated sample management software UI allows users to interface with the storage system from mobile devices such as phones and tablets.

Verso Dx's automated tube discard simplifies bulk removal of expired samples, allowing system operators to dispose of up to 10,000 tubes per hour.

Fully redundant refrigeration modules on Verso Q50 and Verso Q75 provide increased system uptime. These modules maintain continuous operation in the event of primary component failure, reducing downtime and potential sample loss.

Fully redundant refrigeration modules provide increased system uptime. These modules maintain continuous operation in the event of primary component failure, reducing downtime and potential sample loss. Helps protect long-term storage by maintaining stable storage conditions during component failures.

Enhance your lab's workflow by integrating the automated sample storage system with an Autonomous Mobile Robot (AMR). When integrated, these specialized robots offer location independence, high flexibility, and increased output. Enables higher-throughput storage and retrieval and supports integrated sample management solutions across rooms or floors.

The SAM HD Pro system operates at under 44 decibels. This low-volume operation helps create a workspace that is conducive to concentration and productivity.

Thanks to the ultra-low temperature freezer's Universal Variable Drive technology, the system adjusts its speed dynamically to ensure optimal cooling while also enhancing energy efficiency.

An intuitive touchscreen monitor simplifies interactions, allows for precise control, and enhances the overall user experience. A user-friendly interface for at-a-glance status, job control, and exception handling.

Verso's dynamic versatility allows labs with uncommon workflows to customize their sample management storage system. The system's picker can be modified to accommodate newborn screening cards, DNA collection cards, or even horizontal picking. The system is ideal for specialized sample collections where non-standard formats still need automated sample handling and traceable workflows.

The system is equipped with a High-Speed Sample Identification module to provide rapid and accurate sample barcode detection, giving labs the ability to further optimize their workflow.

To ensure the highest possible sample safety, barcodes are scanned at -20°C within the system to minimize temperature fluctuations and prevent degradation. This helps maintain sample integrity and preserves high-quality data by reducing thaw cycles and temperature swings.

An optional Tube Side Barcode Scanning Module is available to identify 1D and 2D barcodes on the sides of tubes and associate that barcode information with their location in the parent rack. Improves sample tracking and supports compound library governance by associating tube identity with rack and location history.

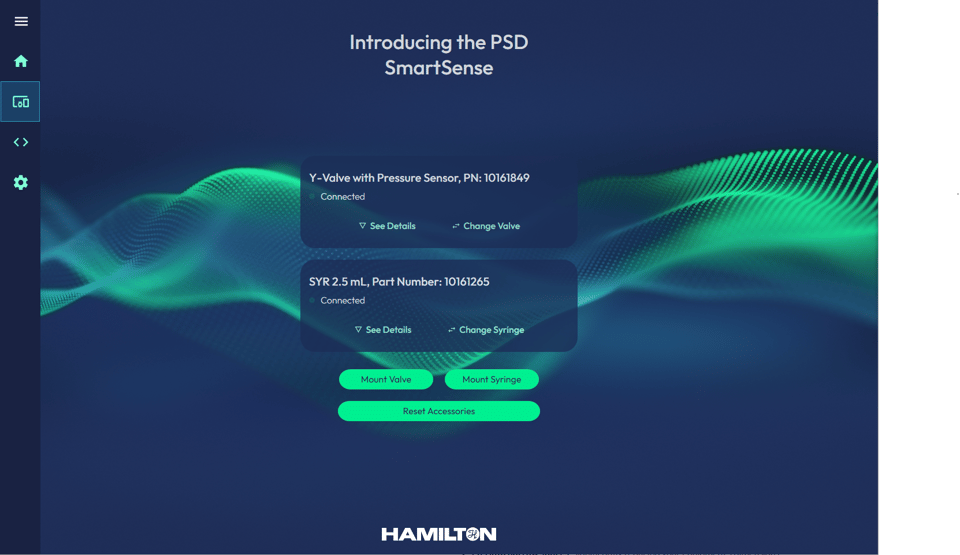

Each smart valve and syringe stores key parameters—such as flow rates, volume, pressure limits, and serial data—directly on its EEPROM memory. Once connected, the PSD SmartSense pump instantly reads this data for automatic setup, enabling faster configuration, reduced manual input, and an overall improved user experience.

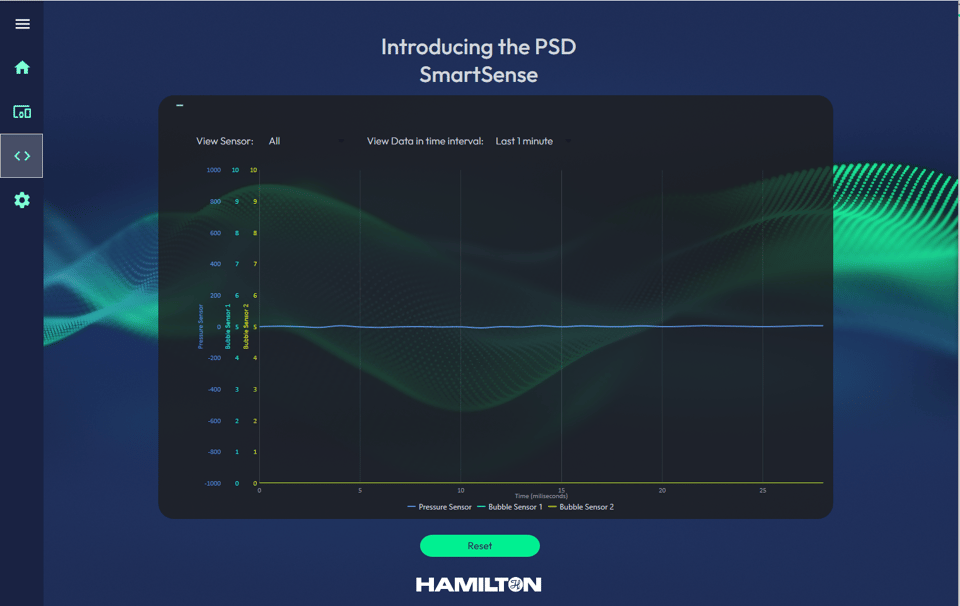

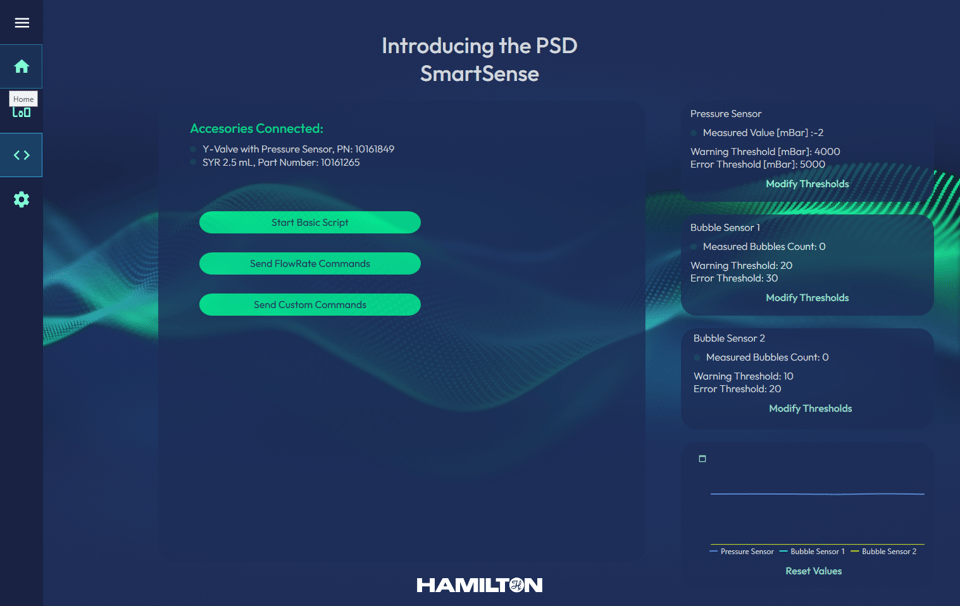

The pressure sensor of PSD SmartSense delivers accurate fluid pressure readings from 1 to 6 bar (absolute) to ensure process stability and prevent overpressure. This integrated sensor enables real-time pressure tracking for critical applications and helps maintain performance consistency.

Utilizing high-speed optical sensors, the PSD SmartSense pump  detects air gaps as small as 0.8 mm with a response time of just 20 µs. Real-time bubble detection prevents flow interruptions and supports smooth operation in precision liquid handling workflows—critical for maintaining sample integrity.

Plate Grippers move labware to-and-from any position on the Hamilton automated liquid handling deck. For even greater hands-free efficiency and workflow integration, the Plate Grippers can transport plates to-and-from nearby off-deck devices (access location is platform-specific).

MAD monitors the air displacement in each pipetting channel of a Hamilton automated liquid handler. During liquid aspiration steps, this non-contact technology immediately identifies clots, empty wells, or other aspiration issues. It also delivers a confirmation of successful aspiration in each pipetting channel of a Hamilton automated liquid handler.

Pressure-based monitoring method to detect liquid interfaces in layered samples like centrifuged blood or liquid-liquid chemical extractions. LFC simultaneously and rapidly identifies, separates, and aliquots up to 16 samples into various labware targets. It includes full sample traceability.

Hamilton’s INSTINCT S sample management software powers our automated sample management platforms. This lab sample management software lets users easily run daily operations with minimal training. In addition, the InVision Data Analytics package provides robust, user-friendly reports as an optional add-on to BiOS warranties and service contracts.

Dual LLD uses two sensors on each liquid handling pipetting channel. A capacitance sensor detects aqueous and conductive liquid surfaces while a pressure-based sensor works with non-conductive, viscous, and volatile liquids. Together, they ensure highly accurate and reliable liquid handling performance.

DPS enables all channels to pipette simultaneously, even across non-uniform patterns. Unlike fixed channels with equidistant spreading, DPS offers efficient yet flexible liquid handling for cherry picking, non-uniform and variable volume samples, and complex pipetting workflows.

The new CO-RE II technology assures more precise tip alignment, minimizing the risk of collisions. Also, tip coupling is faster which boosts productivity. Besides tips, a wide range of Hamilton tools are applicable with CO-RE II.

Further streamline automated workflows with CO-RE Grippers. These agile grippers transform Hamilton's precision pipette channels into on-deck labware transport solutions on Hamilton automated liquid handlers.

Uses a 1D barcode scanner to automatically identify and verify samples, carriers, and consumables such as tips, tubes, micro plates, and reagent troughs as they are placed onto the liquid handling deck. Optional 2D barcode reading is available, and results may be sent to any LIMS for documentation.

As part of CO-RE II technology’s functionality, pipette tips are gently ejected from each automated liquid handler pipetting channel. This prevents aerosol generation that may expose users to harmful biohazards or cross-contaminate samples and laboratory surfaces.

As part of CO-RE II technology’s functionality, pipette tips are gently ejected from each automated liquid handler pipetting channel. This prevents aerosol generation that may expose users to harmful biohazards or cross-contaminate samples and laboratory surfaces.

Pressure sensors on Hamilton’s pipetting channels continuously detect variations. Any changes are immediately compensated for by dosing drive movements to prevent droplet formation. Essential for high-precision and accuracy when pipetting volatile liquids like ethanol and acetonitrile.

During aspirate and dispense steps, TADM monitors real-time pressure changes in each Hamilton liquid handler pipetting channel. Results are compared against expected values to expose anomalies like bubbles and insufficient volumes. Sample transfers are verified with a digital audit trail.

BiOS systems feature at least one -80°C Tube Picker for all sample picking and defragmentation. This picker is compatible with a wide range of labware types and multiple labware types per system, without any need for mechanical modification. Most importantly, picking occurs within a dedicated -80°C chest freezer to maintain sample temperature during picking.

The tubular linear drive inside our MagPip channels can accelerate at speeds that enable precise and ultra fast pipetting down to 350nL.

Innovative drive system enhances the utilization of deck space, enabling researchers to automate more scientific experiments seamlessly within a single unit, ultimately saving valuable lab space.

Simply transfer your magnetic bead/nucleic acid (NA) suspension into the Microlab PuriFY Strips and start your run. The Microlab PuriFY will manage the entire nucleic acid clean up process using our patented MagPore technology.
