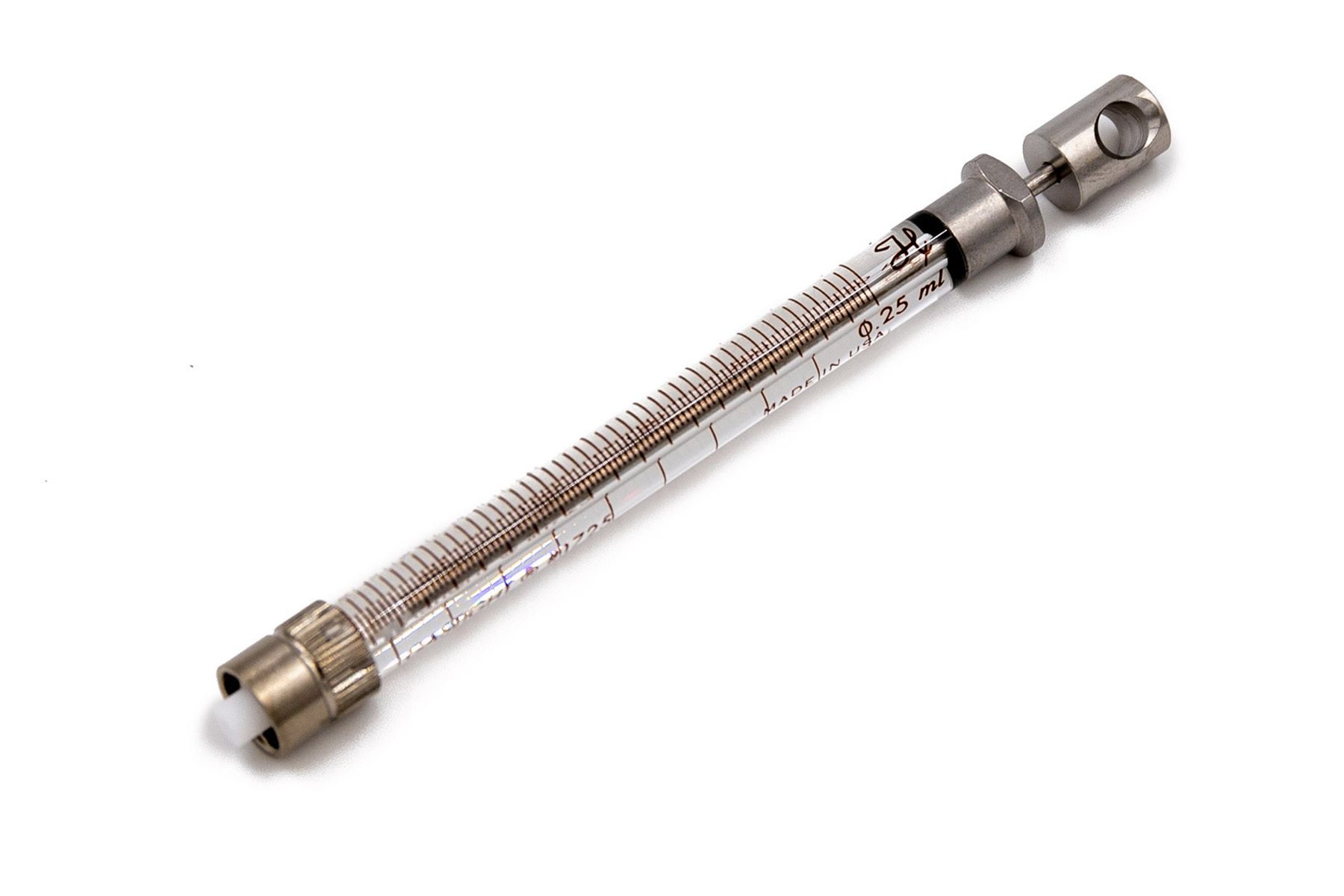

250 µL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-25

No Needle Available

Part # 9880-25

This 1700 Gastight syringe #1725 is designed for heterogeneous, volatile, and viscous samples. Their polymer tip ensures a leak-free seal. The 250 µL syringe (PN: 9880-25) is manufactured with high-quality, chemically resistant materials.

Receive More Information

Minimum: 1, Maximum: 1000

250 µL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-25 Details

Hamilton's 1700 series, Gastight Instrument # 1725   PTFE Luer Lock (TLL) Syringe with Side Post Mounting (XL) plunger is designed for dispensing both liquids and gases in a variety of instruments. Compatible with standard female Luer Lock connections. The 1000 series is a mid-volume GasTight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Side Post Mounting Plunger

  • Incorporates a stop mechanism to protect the plunger tip, enhancing durability and reliability for instrument use.
  • Specifically designed for full-height syringes with a 60 mm stroke length.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

250 µL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-25 Specifications

Print
Volume 250 µL
Syringe Type Gastight
Syringe Series 1700
Termination PTFE Luer Lock (TLL)
Needle Instrument Syringe
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Plunger Style Side Post Mounting (XL)
Fluid Path Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 500 psig (34.5 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.091 inches (2.30 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Syringe Model Number 1725

250 µL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-25 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Microliter vs. Gastight Article

Article

What's the Difference Between Microliter vs. Gastight Syringes?

In this article, we grouped our most popular syringes by unique physical characteristics and materials, making it easy to compare microliter and gastight syringes. We also provide a detailed anatomy of each syringe.
Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
Accuracy of Hamilton syringes 1

FAQ

What is the difference between Bubble Free Prime (BFP) Syringes and Luer Lock (TLL) Syringes?

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 μL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult to prime. The Bubble Free Prime (BFP) syringe features a conical plunger tip which expels the air from the syringe and valve decreasing the number of priming cycles required to eliminate air bubbles from within the flow path.
