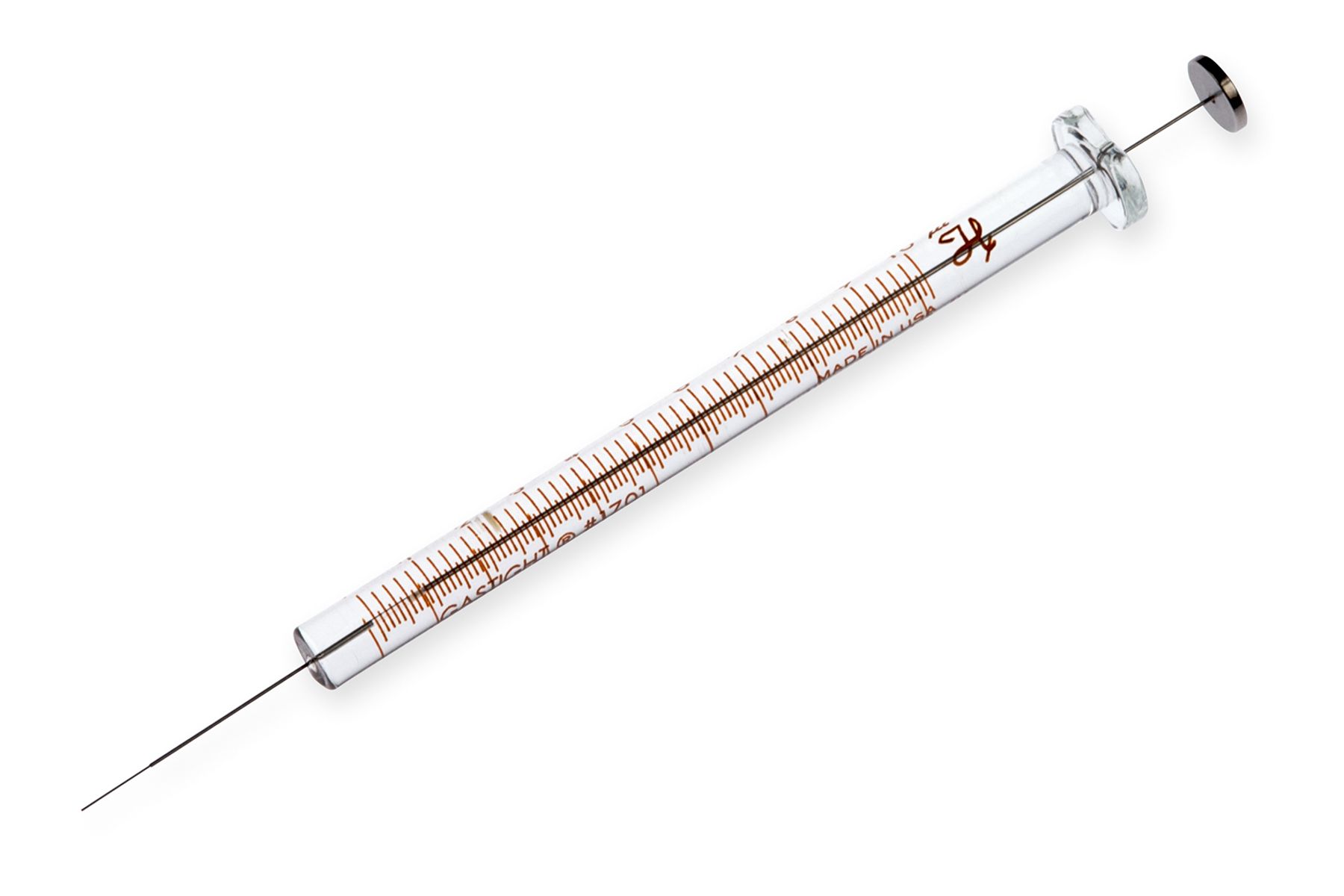

10 µL, Gastight Syringe, Cemented Needle (N), Gel Loading, PN: 84505

0.3 mm, 1.00 inch (25.4 mm), Point Style 3: Blunt

Part # 84505

This 1700 Gastight syringe is designed for heterogeneous, volatile, and viscous samples. Their polymer tip ensures a leak-free seal. The 10 µL syringe (PN: 84505) is manufactured with high-quality, chemically resistant materials.


Receive More Information

Minimum: 1, Maximum: 1000

10 µL, Gastight Syringe, Cemented Needle (N), Gel Loading, PN: 84505 Details

Hamilton's 1700 series, Gastight #1701 Cemented Needle (N) Syringe is designed with small-gauge needles that a perfect for loading the lanes on an electrophoresis gel. Commonly used for multiplex DNA sequencing methodologies. The 1700 series gel loading syringes are available in single, 8-channel, and 12-channel formats to rapidly transfer 1, 8, or 12 samples to sequencing gels or multi-well plates and nylon membranes. The fixed syringes offer 9 mm needle spacing, and the adjustable width syringe goes from 9 – 10.8 mm. A settable volume stop allows for faster, more accurate reloading and excellent reproducibility.

Versatile Volume and Compatibility

  • Dispenses from 1 µL up to 500 µL with precision.
  • Compatible with various terminations and plunger styles for both manual dispensing and instrument applications.


Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

10 µL, Gastight Syringe, Cemented Needle (N), Gel Loading, PN: 84505 Specifications

Print
Volume 10 µL
Syringe Type Gastight
Syringe Series 1700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 0.3 mm
Point Style 3: Blunt
Needle Length 1.00 inch (25.4 mm)
Plunger Style Standard Plunger
Fluid Path SST, Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 1000 psig (68.9 bar)
Maximum Operating Temperature 50°C / 122°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.018 inches (0.460 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0025 inches (0.064 mm)
Needle Outer Diameter 0.010 inches (0.3 mm)
Std Needle Dead Volume 0.35 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 1701

10 µL, Gastight Syringe, Cemented Needle (N), Gel Loading, PN: 84505 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?

Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
