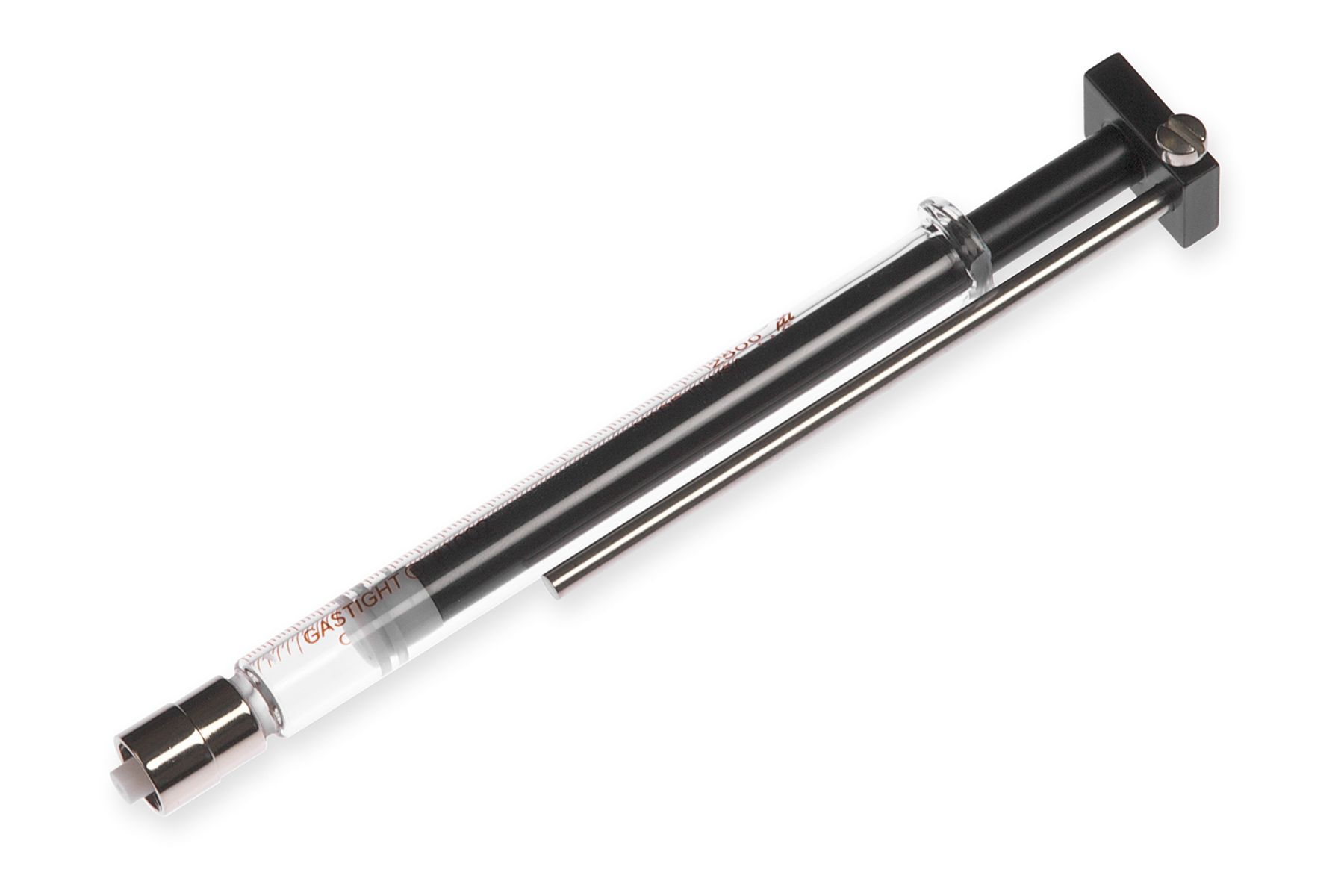

2.5 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81424

No Needle Included

Part # 81424

This 1000 series syringe is a Gastight #1002 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments. This 2.5 mL syringe (PN: 81424) has a PTFE Luer Lock (TLL) termination and is compatible with a Metal (N) or Kel-F needle.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

2.5 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81424 Details

Hamilton's 1000 series, Gastight #1002 PTFE Luer Lock (TLL) Syringe, Built-in Chaney Adapter is a device that assures repetitive and identical syringe plunger location. It eliminates most user error when setting a syringe plunger at a specific volume. A pre-installed Chaney Adapter eliminates the assembly step, which can lead to damage to the smaller volume syringes. The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Chaney Adapter

  • Ensures reproducible and identical plunger positioning on the syringe.
  • Features an adjustable stop for precise and repeatable fill volume setting.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

2.5 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81424 Specifications

Print
Volume 2.5 mL
Syringe Type Gastight
Syringe Series 1000
Termination PTFE Luer Lock (TLL)
Needle Metal (N) or Kel-F
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Fluid Path Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.287 inches (7.29 mm)
Barrel Outer Diameter 0.407 inches (10.3 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Syringe Model Number 1002

2.5 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81424 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
