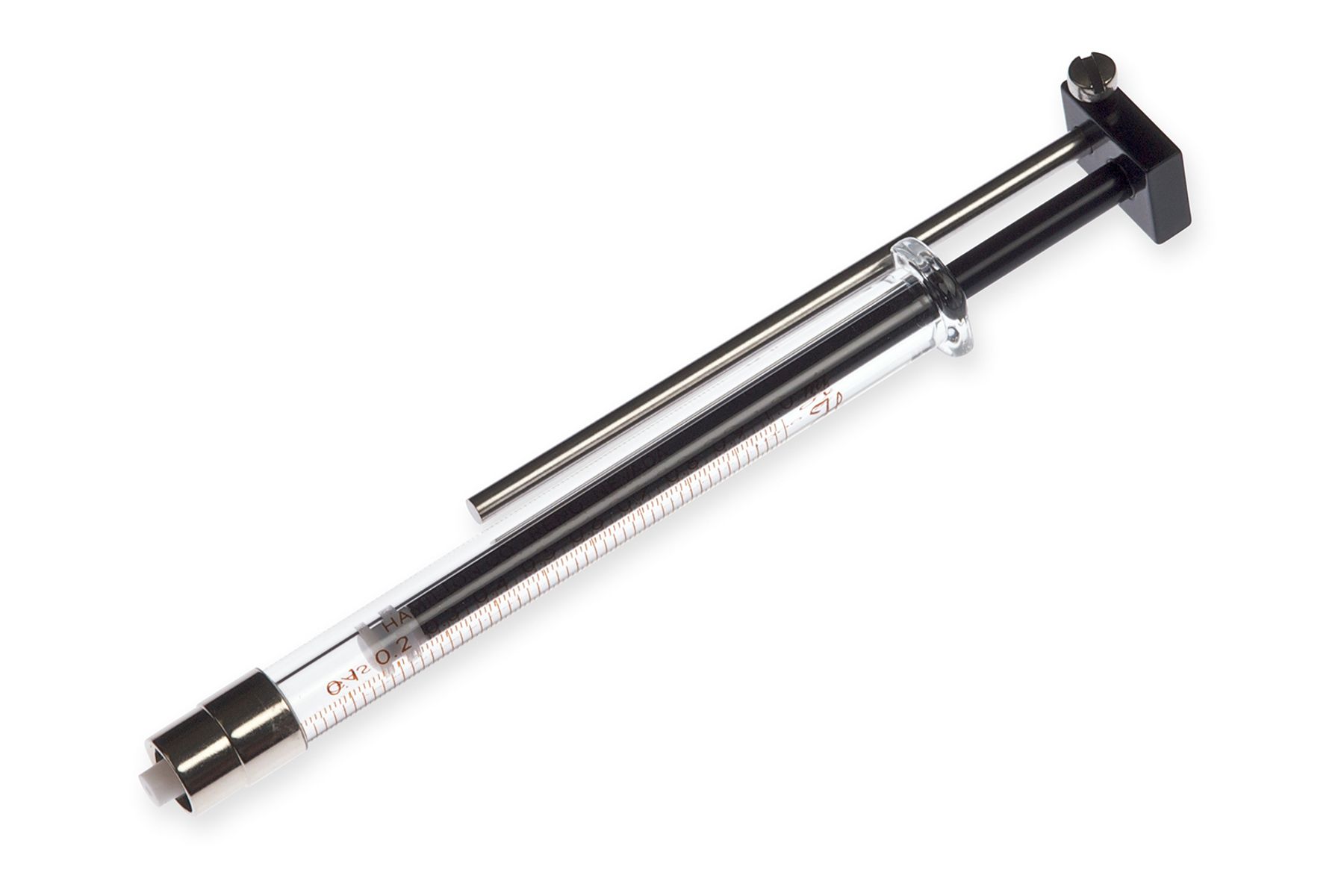

1 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81324

No Needle Included

Part # 81324

This 1000 series syringe is a Gastight #1001 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments. This 1 mL syringe (PN: 81324) has a PTFE Luer Lock (TLL) termination and is compatible with a Metal (N) or Kel-F needle.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

1 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81324 Details

Hamilton's 1000 series, Gastight # 1001 PTFE Luer Lock (TLL) Syringe, Built-in Chaney Adapter is a device that assures repetitive and identical syringe plunger location. It eliminates most user error when setting a syringe plunger at a specific volume. A pre-installed Chaney Adapter eliminates the assembly step, which can lead to damage to the smaller volume syringes.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Chaney Adapter

  • Ensures reproducible and identical plunger positioning on the syringe.
  • Features an adjustable stop for precise and repeatable fill volume setting.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

1 mL, Gastight Syringe, Built-in Chaney Adapter, PTFE Luer Lock (TLL), PN: 81324 Specifications

Print
Volume 1 mL
Syringe Type Gastight
Syringe Series 1000
Termination PTFE Luer Lock (TLL)
Needle Metal (N) or Kel-F
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Fluid Path Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.181 inches (4.61 mm)
Barrel Outer Diameter 0.355 inches (9.02 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Syringe Model Number 1001
