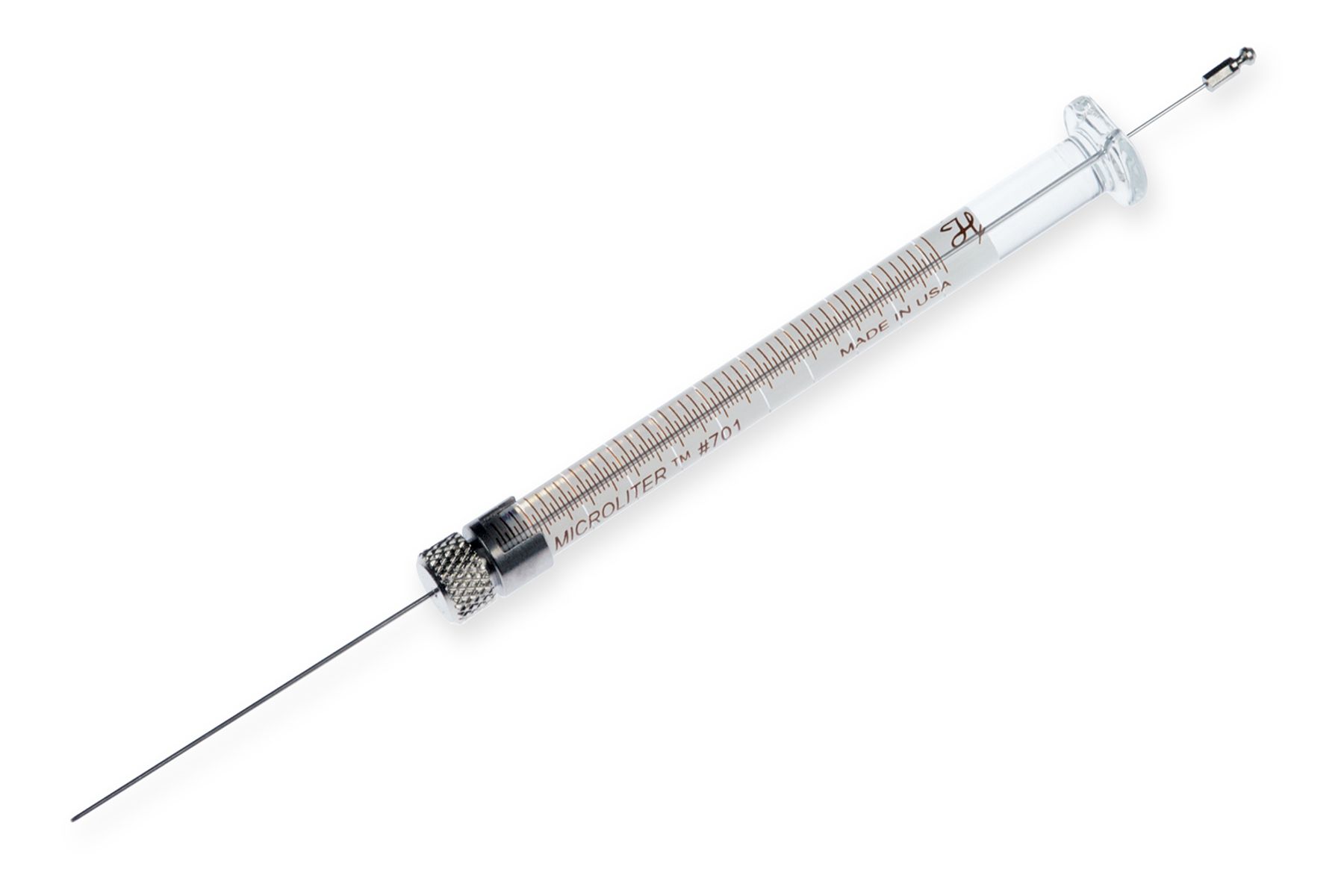

10 µL Microliter Autosampler Agilent Syringe, Removable Needle (RN), PN: 80357

23s gauge, 1.71 in (43.4 mm), point style AS: conical, autosampler

Part # 80357

This 700 series Microliter #701 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This 10 µL syringe (PN: 80357) is made from high-quality and chemically resistant materials. Compatible with Small Hub RN needles. View Compatible Autosamplers

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Quantity: 1| Print

10 µL Microliter Autosampler Agilent Syringe, Removable Needle (RN), PN: 80357 Details

Hamilton's 700 series, Microliter #701 Small Removable Needle (RN) Syringe designed for use with Agilent GC Autosamplers 7693A, 7673, 7683, 6850.

Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Designed for Agilent GC autosamplers, these syringes ensure dimensional accuracy, optimal needle length and superior durability. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Compatible Autosamplers:

Removable Needle Syringes for Agilent GC 7693A, 7673, 7683, 6850 ALS



Common applications Veterinary Sciences

Agilent Autosampler Syringe

  •  Specialized plunger-head ensures optimal alignment and injection accuracy.
  • The Needle termination is designed for high precision and minimal dead volume.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

10 µL Microliter Autosampler Agilent Syringe, Removable Needle (RN), PN: 80357 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Removable Needle (RN)
Needle Small RN
Gauge 23s gauge
Point Style AS: Conical, Autosampler
Needle Length 1.71 inches (43.4 mm)
Plunger Style Agilent Plunger
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0133 inches (0.34 mm)
Needle Outer Diameter 0.0238 inches (0.64 mm)
Std Needle Dead Volume 0.46 µL
Sales Quantity 1 syringe per pack

10 µL Microliter Autosampler Agilent Syringe, Removable Needle (RN), PN: 80357 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
