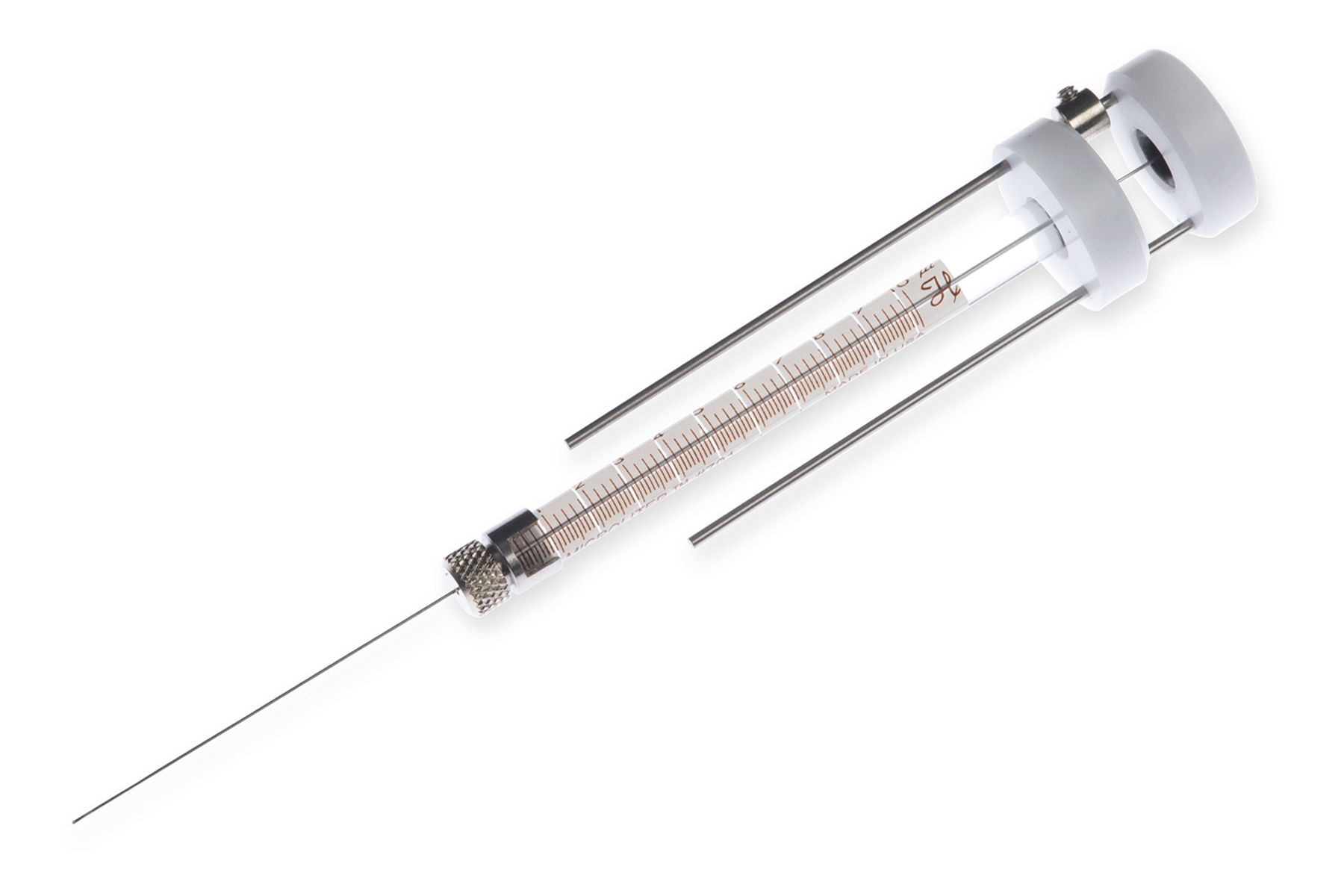

10 µL, Microliter Syringe With Guide, Removable Needle (RN), PN: 80337

26s gauge, 2 inch (51 mm), Point Style 2: Curved, Beveled

Part # 80337

This 700 series Microliter #701 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This syringe (PN: 80337) is made from high-quality and chemically resistant materials. Compatible with Small Hub RN needles.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Quantity: 1| Print

10 µL, Microliter Syringe With Guide, Removable Needle (RN), PN: 80337 Details

Hamilton's 700 series, Microliter #701 Removable Needle (RN) Syringe With Guide is designed for manual dispensing. This syringe comes with the Syringe Guide installed to eliminate the assembly step which can lead to damage of the smaller volume syringes. This 700 series syringe offers a velvet feel,  featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. These syringes are manufactured from high-quality, chemically resistant materials and ensure dimensional accuracy, optimal needle length with superior durability, and accuracy within 1%.

Common applications Veterinary Sciences

Syringe Guide

  • Stabilizes fine plunger wires of small-volume syringes.
  • Features an adjustable stop collar to prevent accidental removal of the plunger.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

10 µL, Microliter Syringe With Guide, Removable Needle (RN), PN: 80337 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Removable Needle (RN)
Needle Small RN
Gauge 26s gauge
Point Style 2: Curved, Beveled
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 0.64 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 701

10 µL, Microliter Syringe With Guide, Removable Needle (RN), PN: 80337 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
