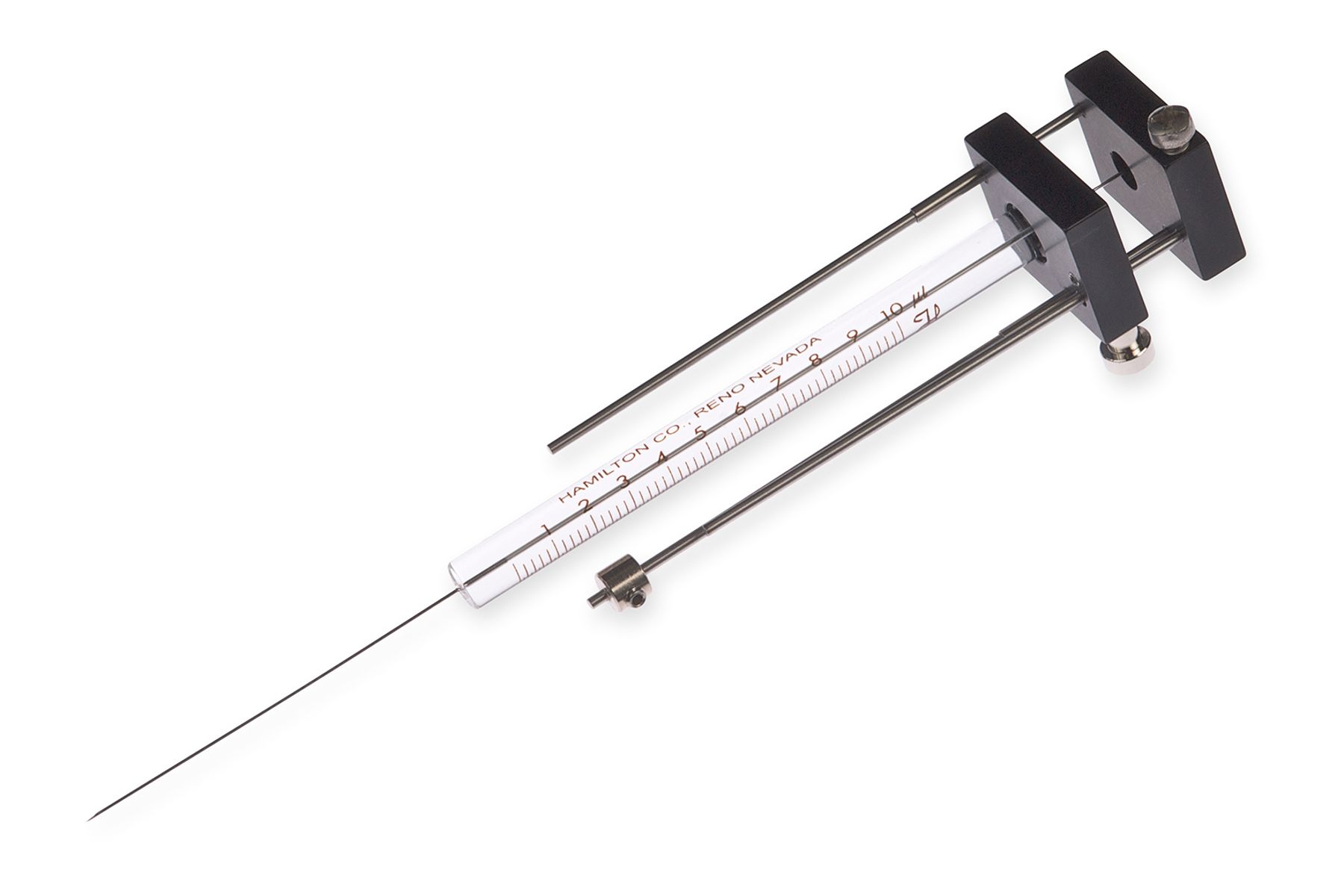

10 µL, Microliter Syringe, Cemented Needle (N), Chaney Adapter, PN: 80304

26s gauge, 2 inch (51 mm), Point Style 2: Curved, Beveled

Part # 80304

This 700 series Microliter #701 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This syringe (PN: 80304) is made from high-quality and chemically resistant materials.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

10 µL, Microliter Syringe, Cemented Needle (N), Chaney Adapter, PN: 80304 Details

Hamilton's 700 series, Microliter # 701 Cemented Needle (N) Syringe with a built-in Chaney Adapter assures repetitive and identical syringe plunger location eliminating subjectivity when setting a syringe plunger at a specific volume. This 700 series syringe features a stainless-steel plunger crafted to fit the glass barrel offering a velvet feel with a tolerance of less than three-thousandths of a millimeter. These syringes are manufactured from high-quality, chemically resistant materials and ensure dimensional accuracy, optimal needle length with superior durability, and accuracy within 1%.

Common applications Veterinary Sciences

Chaney Adapter

  • Ensures reproducible and identical plunger positioning on the syringe.
  • Features an adjustable stop for precise and repeatable fill volume setting.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Microliter Syringes for Accurate Analysis of Reactive Chemical Species

    We commonly use microliter syringes for the preparation of reactions as they allow for the precise addition of reagents, and in addition, are inert to many of the redox reagents we use in our chemistry. We can also accurately transfer reactive species for chemical analysis without significant sample degradation. As we move into a new phase of our research, Hamilton syringes will allow for the accurate analysis of reaction products. This will include the GC analysis of N2, H2, and small molecule activation products from C-N bond forming chemistry.

    Tim Storr
    Associate Professor, Simon Fraser University | Chemistry

10 µL, Microliter Syringe, Cemented Needle (N), Chaney Adapter, PN: 80304 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 26s gauge
Point Style 2: Curved, Beveled
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 50°C / 122°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 0.64 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 701

10 µL, Microliter Syringe, Cemented Needle (N), Chaney Adapter, PN: 80304 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Instructions Built in Chaney Adapter

Instruction

Instructions - Built-in Chaney Adapter

Download the instruction sheet for Hamilton Syringes with Built-in Chaney Adapters to ensure accurate and repeatable fluid measurements with minimal user error.
HAM Instructions 800 900 1800 Series

Instruction

Instructions - Chaney Adapters 800 900 1800 Series

The Hamilton Chaney Adapter is a device that assures repetitive and identical syringe plunger location. It eliminates subjective errors when setting a syringe plunger at a specific volume.
HAM Instructions Syringe Calibration

Instruction

Instructions - Syringe Calibration

Learn about Hamilton’s precise syringe calibration procedure using gravimetric measurements. Follow our standardized method to ensure syringe accuracy and reliability.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
800series MICROLITER Syringes

Article

Microliter Syringe Operating Parameters

Explore detailed operating parameters of microliter syringes to ensure precise liquid handling and enhance your lab performance with Hamilton’s expert guidance.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
