5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 203550

No Needle Available

Part # 203550

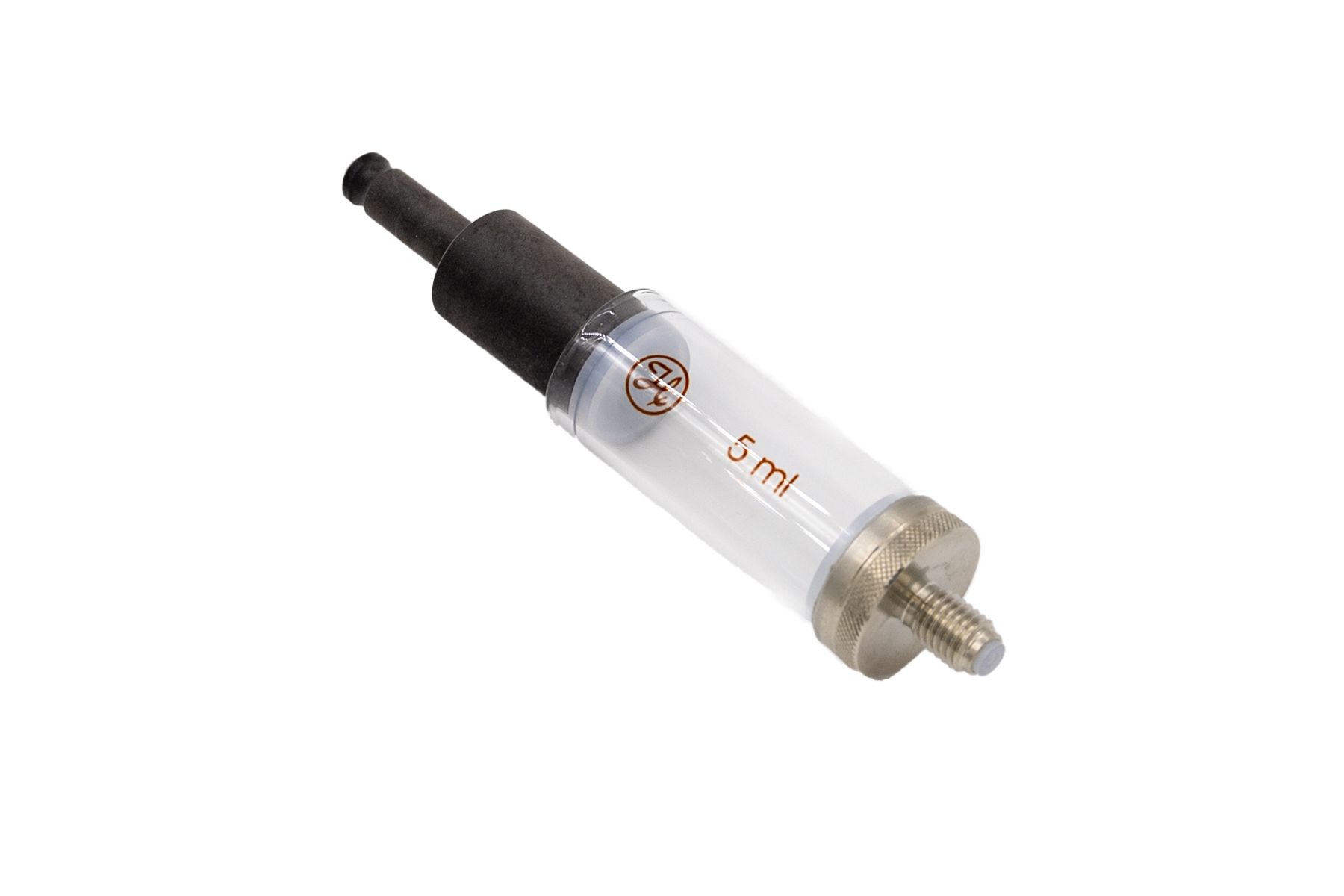

This 1000 series syringe is a 5 mL Gastight #1005 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments, this syringe (PN: 203550) has a ChemSeal (C, 1/4"-28) termination.

Receive More Information

Minimum: 1, Maximum: 1000

5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 203550 Details

Hamilton's 1000 series, Gastight #1005 ChemSeal (C, 1/4"-28) Syringes with SaltLine w/ Cavro 30 mm Plunger Button (XP) plunger are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

High Salt Tolerance Design

  • Engineered for high salt applications to endure extreme and harsh conditions.
  • The plunger tip material provides superior resistance to abrasion and wear.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 203550 Specifications

Print
Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination ChemSeal (C, 1/4"-28)
Needle No Needle Available
Plunger Style SaltLine w/ Cavro 30 mm Plunger Button (XP)
Fluid Path Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Outer Diameter 0.028 inches (0.7 mm)
Sales Quantity 1 syringe per pack
Syringe Model Number 1005
