VisiTrace DO Ex (Discontinued)

The VisiTrace DO Ex sensor family, now discontinued, was engineered for industrial environments and included both standard variants and Ex-certified versions for deployment in explosive atmospheres. Discover our equivalent replacement sensor: VisiTrace mA L1

Receive More Information

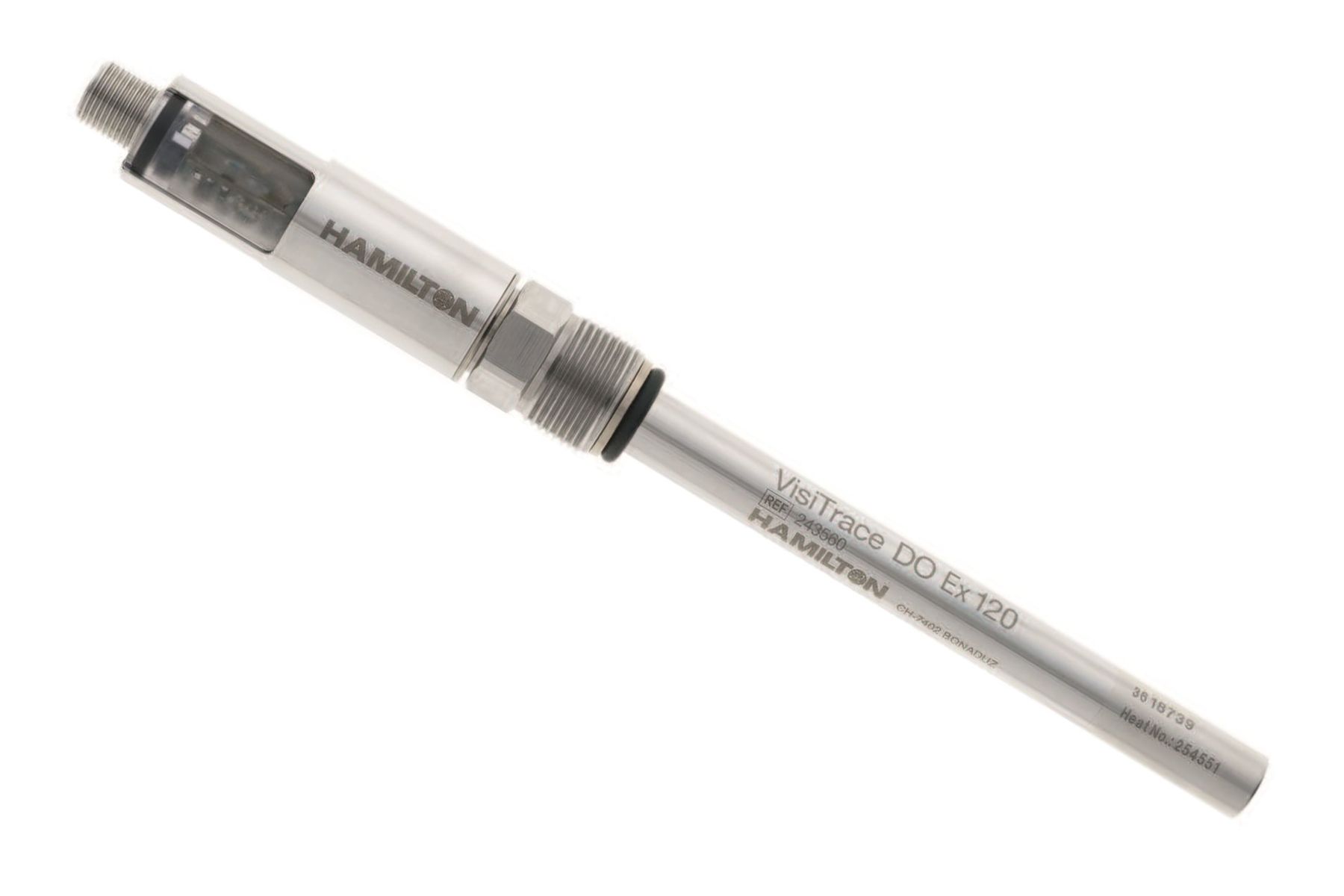

  • Visitrace do ex Dissolved Oxygen Sensor

VisiTrace DO Ex (Discontinued) Details

The discontinued VisiTrace DO Ex sensor family was designed for industrial environments with standard and Ex versions for use in explosive environments. Hamilton's substitute VisiTrace mA meets and exceeds the specification and performance requirements and reduces the effects of ageing and temperature with 100% backwards compatibility to existing installations.

Find our equivalent replacement sensor: VisiTrace mA L1

VisiTrace DO Ex (Discontinued) Specifications

Print
Process Connection PG13,5
Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
Silicone - FDA 21 CFR 177.2600
VMQ (Silicone elastomer)
See compliance details in Material Specification document
Electrical Connector M12
Measuring Range 0 to 2 ppm (0 to 50 mbar)
Electrolyte None
Accuracy at 25 °C ± 0.5 ppb or 2 % whichever is greater
Drift at Room Temperature < 1 % per week @ 100 ppb
Sensor Cap ODO Cap L0
Oxygen Consumption None
Temperature Sensor NTC 22 kOhm
Configurable Values Dissolved Oxygen (DO): mbar; %-sat; %-vol; µg/l; mg/l; ppb/ppm (gas); ppb/ppm; Temperature: °C, °F, K
Surface Quality of Steel Ra < 0.4 µm (N5)
4 to 20 mA Current Range 3.5 to 22 mA
Analog Interface 1 Two wire sink 4 to 20 mA for DO, programmable
4 to 20 mA Accuracy < 0.3 % + 0.05 mA
Transmitting Power Max. 4 dBm
Digital Interface Bluetooth 4.0
Operating Voltage 18 to 30 VDC
Serial Number Yes
Response Time t90% < 20 s in gas; < 90 s in water
Certificate Yes, with measured current in oxygen
ATEX Approval ll 1G Ex ia llC T6/T5/T4/T3 Ga; ll 1D Ex ia lllC T135°C Da
IECEx Approval ll 1G Ex ia llC T6/T5/T4/T3 Ga; ll 1D Ex ia lllC T135°C Da
Diameter 12 mm
Autoclavable No
Steam Sterilizable Yes, max. Temperature 140 °C
CIP Yes
Operating Temperature Range -10 to 140 °C; the sensor provides no DO reading above 85 °C
Pressure Range bar g -1 to 12 bar
Protection Rating IP68
Required Flow None

VisiTrace DO Ex (Discontinued) Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

When should I calibrate my DO sensor?

The frequency of calibration will depend upon the duration of process runs and the accuracy required for process control. In bioreactor applications calibration can be performed before sterilization; however many customers choose to calibrate after sterilization as well.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can I use a VisiFerm, VisiPro, or VisiTrace for gas phase oxygen measurements?

Yes. Optical DO sensors can be used for monitoring oxygen contents in air as well as dissolved oxygen.
