OxyFerm Membrane Kit

Part # 237123

The OxyFerm Membrane Kit is designed for use with the OxyFerm sensors. It is available in different shapes and materials (Standard, CIP, FDA) for your specific application. The protected edge makes it suitable for CIP cleaning, and the convex design prevents air bubbles when inserted vertically.

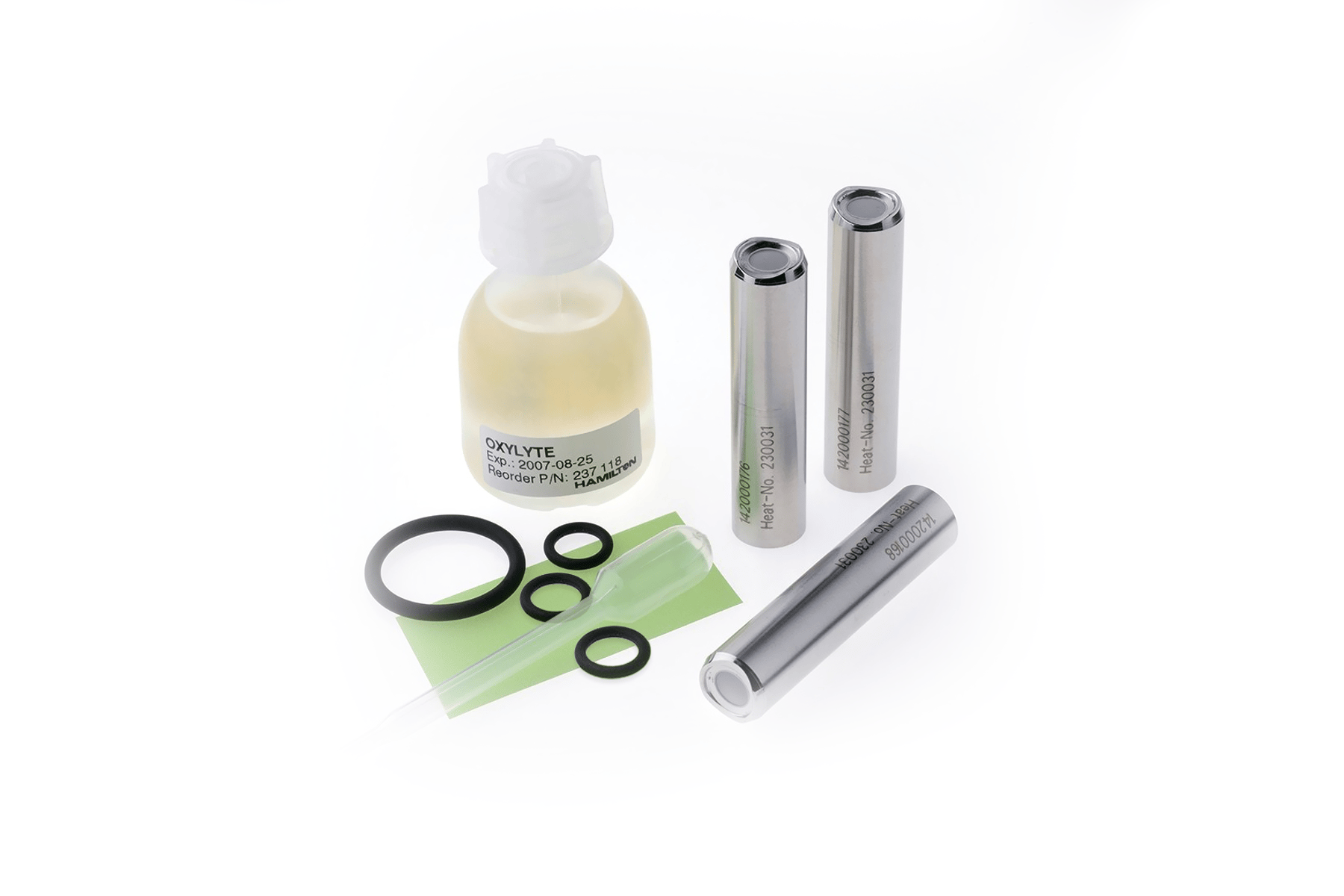

The OxyFerm Membrane Kit contents:

  • 3 pieces of Membrane Cartridges
  • O-rings:
    • 1 piece of ID 20.24 x 2.62 EPDM
    • 1 piece of 11.00 x 3.00 FKM
    • 3 pieces of ID 9.00 x 1.00 FKM
    • 1 piece of ID 7.66 x 1.78 EPDM
  • 20ml Oxylyte bottle
  • Green polish cloth
  • Disposable pipette

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Easy to replace.

Available in different materials, specific to your application.

Convex design prevents air bubbles if inserted vertically.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

OxyFerm Membrane Kit Specifications

Print
Wetted Parts Stainless Steel 1.4435
FKM (Fluorocarbon Elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document
Membrane Cap Standard
O-ring Material 25 mm: EPDM (FDA approved); 12 mm: FKM (FDA approved)
Surface Quality of Steel Ra < 0.4 µm (N5, electropolished)
Serial Number Yes

Compatibility with Hamilton Devices

Explore the limitless possibilities of Hamilton products.

OxyFerm Membrane Kit Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Calibration and Maintenance for Oxygen Sensors

Proper calibration and maintenance are critical for maintaining the best accuracy of the oxygen measurement. The articles below discuss some basic principles for proper care and maintenance of both polarographic and optical oxygen sensors.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

When should I replace the membrane and electrolyte in my polarographic DO sensor?

The frequency of membrane and electrolyte replacement is process specific and will vary. Routine calibration before each run can identify a high nA current at the nitrogen zero point or low nA current in air, indicating a need to replace the membrane and electrolyte. Click to learn more about membrane replacement.
