DO Adapter

Part # 242538

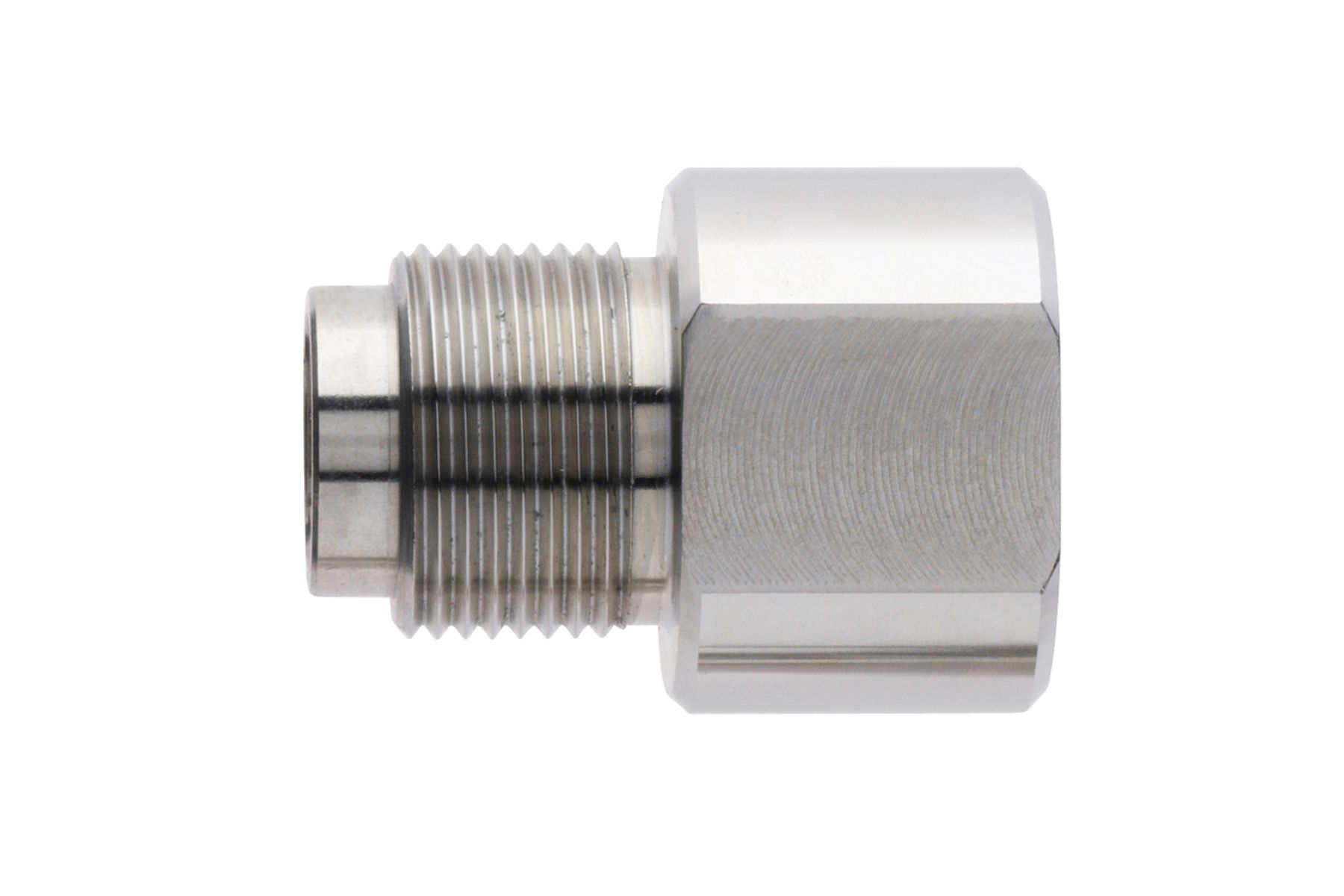

This stainless steel adapter provides a hygienic, secure connection point for select 120 mm oxygen and conductivity sensors. Maintaining proper alignment supports consistent measurement performance in sanitary environments.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

DO Adapter Details

The DO Adapter is designed for mounting 120 mm oxygen or conductivity sensors with a consistent 12 mm shaft diameter. It is not compatible with pH sensors or the Conducell UPW. When installed correctly, the sensor tip aligns nearly flush with the Hygienic Socket, ensuring excellent cleanability and precise process integration.

Supports secure sensor installation with hygienic design.

Maintains flush sensor placement for optimal cleanability.

Compatible with 12 mm shaft oxygen and conductivity sensors.

Hygienic Design

  • Seamless integration with hygienic sockets
  • Screws directly into the Hygienic Socket, ensuring that the sensor tip is almost flush with the socket interior.
  • This precise alignment enhances cleanability and supports use in hygienically demanding applications such as pharmaceutical or food manufacturing.
  • Made with electropolished steel (Ra < 0.4 µm) for superior corrosion resistance and sanitary performance.


Secure Sensor Mounting

  • Reliable fit for oxygen and conductivity sensors
    Designed for 120 mm sensors with a 12 mm shaft diameter throughout the entire insertion length.
  • Provides a tight, stable seal that supports consistent sensor performance.
  • Installation tightness must be verified to ensure long-term durability and measurement accuracy.


  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

DO Adapter Specifications

Print
Process Connection PG13,5
Surface Quality of Steel Ra < 0.4 µm (N5, electropolished)
Product Family Hygienic Socket

DO Adapter Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Understanding Surface Finish

This article explores the topic of surface finish on wetted components for Hamilton sensors, housings, and other products.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Process Connection Options for Housings

This knowledge base article provides a brief primer on the options of process mounting connections commonly available on the market.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Do optical DO sensors require flow to measure accurately?

No, optical dissolved oxygen sensors will measure accurately without the need for flow. This is a key difference between optical and polarographic measurement technology. Polarographic sensors consume oxygen as part of their electrochemical reaction thus should have constant flow moving past the sensor to maintain accurate readings.
