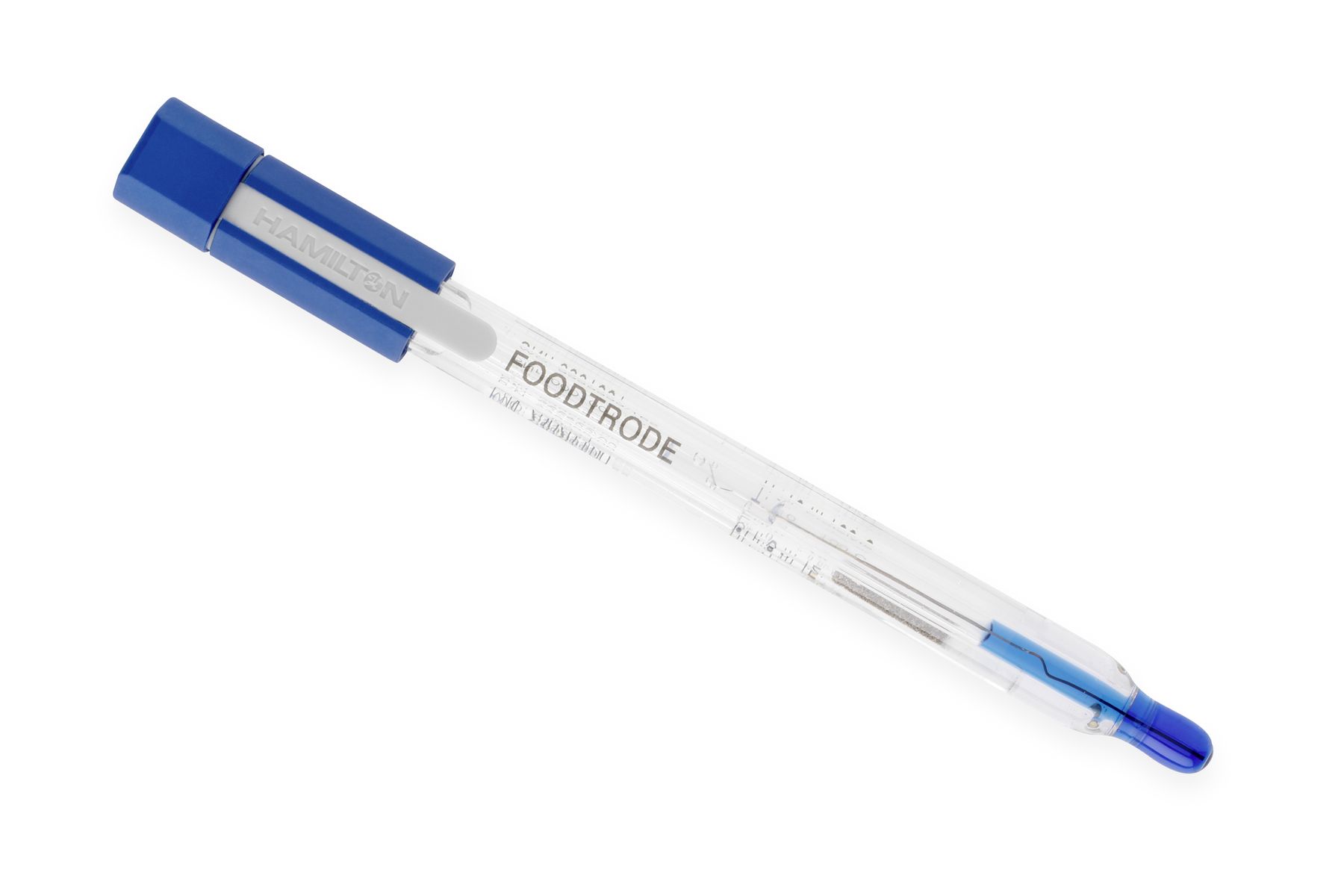

FoodTrode

Part # 238285

The FoodTrode is a durable and reliable combination pH electrode specifically engineered for accurate measurements in protein-rich media, utilizing three ceramic diaphragms to ensure rapid response times and minimize junction clogging.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

FoodTrode Details

The FoodTrode is a high-performance combination pH electrode specifically designed to provide accurate and reliable measurements in media containing proteins, a common challenge in the food and beverage industry. Its robust construction ensures durability in demanding environments.

A key feature of the FoodTrode is its innovative use of three ceramic diaphragms. This multi-junction design significantly minimizes the risk of clogging by proteinaceous substances, which can lead to slow response times and inaccurate readings in conventional electrodes. The multiple junctions maintain a stable reference potential, contributing to faster and more dependable measurements. Furthermore, the FoodTrode is designed for easy cleaning, simplifying maintenance procedures and prolonging the electrode's lifespan.

The integrated Everef reference system further enhances the electrode's stability, reliability, and ensures consistent performance over extended periods. Each FoodTrode is supplied with a unique serial number and a certificate of quality, providing traceability and assurance of its performance specifications. This electrode is an essential tool for quality control, research, and development in various food and beverage applications where protein content can interfere with accurate pH measurements.

Common applications Agri-Food and Beverage

Get fast, accurate pH readings in protein-rich samples

Ensure long-term reliability with a stable reference system

Simplify maintenance with an easy-to-clean design

Robust Design

  • The FoodTrode features a durable construction, making it suitable for routine use in laboratory and industrial food and beverage settings.
  • Its robust design helps withstand the rigors of frequent handling and measurements in various sample types.

Triple Ceramic Diaphragms

  • Engineered with three ceramic diaphragms, this unique feature ensures rapid and stable measurements, even in complex protein-containing matrices.
  • The multiple junctions minimize clogging, a common issue with single-junction electrodes in such media, leading to faster response times and improved accuracy.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

FoodTrode Specifications

Print
Sensor Family FoodTrode
Wetted Parts GΙass
Ceramic
pH Glass Hamilton Type HF Glass
Electrical Connector S7
a-length 120 mm
Parameter pH
Measuring Range pH 0 to 14
Electrolyte Protelyte
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Ceramic
Number of Diaphragms 3
Reference System Hamilton Everef
Temperature Sensor No
Minimum Immersion Depth 20 mm
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
Diameter 12 mm
Operating Temperature Range -10 to 100 °C
Pressure Range bar g Atmospheric pressure
