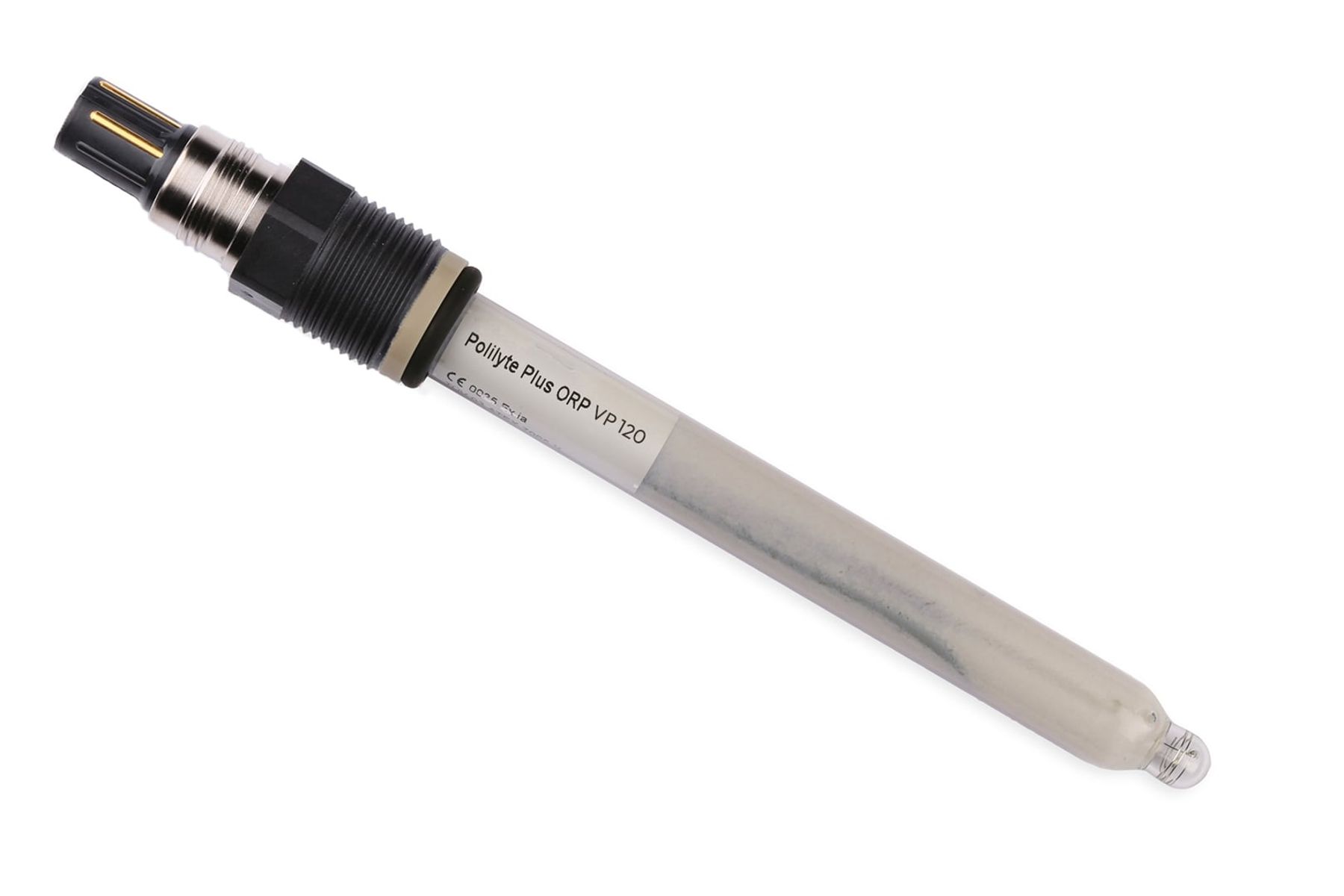

Polilyte Plus ORP VP 120 Pt1000

Part # 243648

The Polilyte Plus ORP is a maintenance-free, high-precision sensor ideal for challenging applications, offering reliable ORP measurements in low-conductivity and alkaline solutions with extended lifetime, clog-resistant design, and enhanced signal stability.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Polilyte Plus ORP Details

The Polilyte Plus ORP is a sensor specifically designed for demanding applications in the chemical and petrochemical industries. Building on Hamilton's proven ORP sensor technology, Polilyte Plus ORP delivers reliable, reproducible ORP measurements in challenging process environments, including highly alkaline solutions and low-conductivity samples.

The Polilyte Plus ORP utilizes Hamilton's maintenance-free Everef-L reference system, combined with two Single Pore junctions, to effectively eliminate common liquid junction problems such as clogging. This design enhances measurement stability, minimizes maintenance requirements, and helps extend sensor service life under demanding operating conditions.

Designed for continuous ORP monitoring in demanding industrial applications, Polilyte Plus ORP combines robust construction, reliable measurement performance, and low-maintenance operation, making it a dependable solution for long-term process control. The maintenance-free design reduces maintenance efforts and process downtime while ensuring reliable ORP measurements throughout the sensor lifetime.

Common applications Water, Energy, & Environment, Water and Wastewater, Chemical Processes, Small Molecules Pharmaceuticals, Petrochemicals, Oil & Gas Processing

 Low maintenance design.

Elimination of clogging with two single pore junctions.

Good performance in highly alkaline solutions and in samples with low conductivity.

Maintenance-Free Design

No need for frequent cleaning or recalibration, reducing downtime and labor.

Clog-Resistant Single Pore Junctions

Dual junctions prevent common reference issues like clogging for consistent performance.

pH ORP measurement in water production
Use case

How It's Used

The Polilyte Plus ORP sensor ensures precise UPW quality with real-time monitoring and seamless digital integration.

References

Close-up of a corroded metal pipe fitting or sensor housing at an industrial facility

Application Note - Arc DO, pH, ORP in wastewater treatment in coking plant

ArcelorMittal, the world's largest steel manufacturer, uses…

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

Polilyte Plus ORP VP 120 Pt1000 Specifications

Print
Process Connection PG13,5
Wetted Parts Platinum
GΙass
FKM (Fluorocarbon Elastomer)
Measuring Range -2000 mV to +2000 mV
Electrolyte Polisolve Plus
ORP Element Pt wire
Membrane Shape Spherical
Diaphragm Single Pore
Number of Diaphragms 2
Reference System Hamilton Everef-L
Liquid Earth No
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured value in ORP buffer +475 mV
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable Yes, max. Temperature 130 °C
Steam Sterilizable Yes, max. Temperature 130 °C
CIP Yes
Operating Temperature Range 0 to 130 °C
Sample min Conductivity 2 µS/cm
Pressure Range bar g 0 to 16 bar (100 °C), 0 to 10 bar (130 °C)
Electrical Connector VP6
a-length 120 mm
Temperature Sensor Pt1000

Polilyte Plus ORP VP 120 Pt1000 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the effect of temperature on ORP?

Temperature compensation is a common requirement for accurate pH measurements, but not generally used for ORP. Why? pH is a measurement of the hydrogen ion concentration by the glass membrane. The voltage output of this glass membrane is temperature dependent, as is the hydrogen ion activity in the liquid. Temperature compensation will correct the pH voltage output back to a standardized 25°C. ORP differs from pH as it is not tied to a specific ion. The effects of temperature can be different depending on oxidizing and reducing substances present in the liquid. Due to this uncertainty, the ORP sensor output is uncompensated millivolts.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is ORP and why would I want to use it?

ORP is a measurement of the overall level of oxidizing or reducing substances present in the liquid. ORP is expresses as a millivolt (mV) signal. Positive voltage indicates an excess of oxidizing agents in the liquid. Conversely, negative voltage indicates an excess of reducing agents in the liquid. ORP is not specific to a single ion within the liquid but is often used to measure the status of a chemical reaction.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is a polymer-filled sensor and why would I choose it?

Polymer-filled sensors use solid (or nearly solid) electrolyte. This design keeps electrolyte from flowing out of the sensor and process liquid from poisoning or clogging the sensor. Polymer filled sensors are a great choice for industrial applications with strong chemicals, particulates and elevated pressures.
