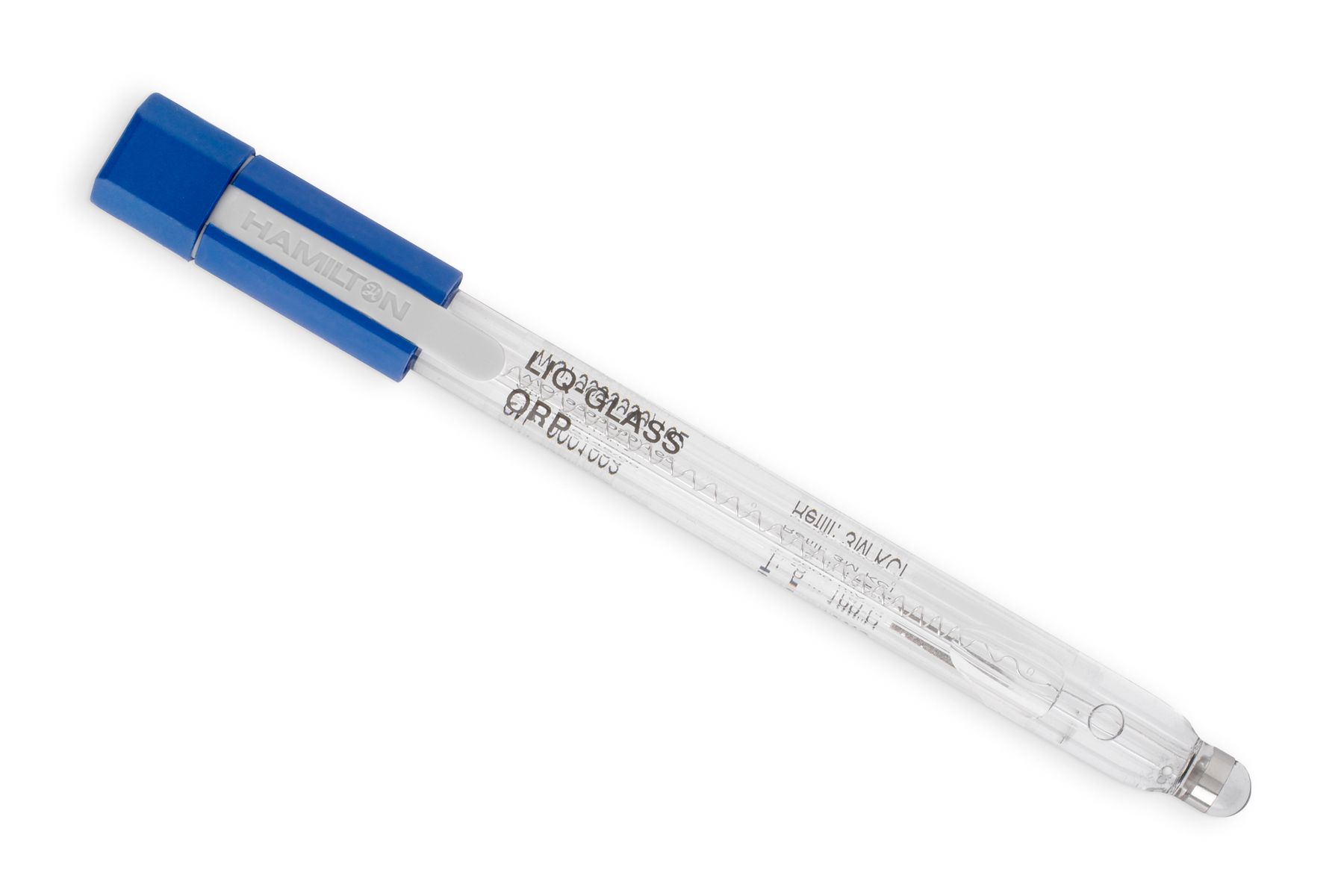

Liq-Glass ORP

Part # 238145

The Hamilton Liq-Glass ORP electrode is a versatile and durable solution for routine laboratory measurements in challenging conditions, including strong acids and bases. Its refillable design and patented EVEREF technology ensure long-term stability and reliable redox potential readings.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Liq-Glass ORP Details

Hamilton’s combination Redox (ORP) electrodes, including the Liq-Glass model, are designed for universal applicability across a wide range of laboratory applications. Built with the patented EVEREF technology, these electrodes provide exceptional long-term stability, ensuring consistent and reliable readings over extended use. The Liq-Glass stands out as a robust ORP electrode specifically engineered for daily laboratory work. Its durable construction allows for reliable measurements in neutral solutions and aggressive media such as strong acids and bases, offering exceptional versatility. As with all Hamilton laboratory electrodes, each Liq-Glass sensor is individually serialized and comes with a certificate, providing traceability and confidence in the product's quality and performance. The refillable design further extends the electrode's service life and allows for optimization with different reference electrolytes depending on the application requirements.

Common applications Chemical Processes

Measure reliably in harsh chemical environments.

Ensures long-term, stable ORP measurements.

Provides certified quality and traceability.

EVEREF Technology

  • Patented EVEREF reference system ensures exceptional long-term stability of the ORP signal, minimizing drift and the need for frequent recalibration.
  • This technology contributes to reliable and consistent measurements over extended periods, saving time and resources in the laboratory.

Robust Liq-Glass Sensor

  • The durable glass body is specifically designed to withstand challenging chemical conditions, including both strong acids and strong bases.
  • This robustness ensures the electrode can be used in a wide range of applications without damage, offering versatility and extending the product's lifespan.
Scientific Citations

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Liq-Glass ORP Specifications

Print
Sensor Family Liq-Glass
Wetted Parts Platinum
GΙass
Ceramic
Electrical Connector S7
a-length 120 mm
Parameter ORP
Sensor Output Traditional: mV
Measuring Range -2000 mV to +2000 mV
Electrolyte 3 M KCl
ORP Element Pt ring
Membrane Shape Spherical
Diaphragm Ceramic
Number of Diaphragms 3
Reference System Hamilton Everef
Temperature Sensor No
Minimum Immersion Depth 15 mm
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured value in ORP buffer +475 mV
Diameter 12 mm
Autoclavable No
Steam Sterilizable No
CIP No
Operating Temperature Range -10 to 100 °C
Pressure Range bar g Atmospheric pressure

Liq-Glass ORP Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Glossary of Sensor & Biopharma Acronyms & Abbreviations

Acronyms and abbreviations are commonly used with process analytics measurements found in the biopharma industry. This glossary is an attempt to de-code some of the more frequently used acronyms.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

FAQ

What are the best practices for using laboratory electrodes?

Click on the header for some simply advice on calibration and measurement with laboratory electrodes.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is viscous electrolyte?

Viscous electrolyte helps slow the ingress of contaminants that could poison the sensor. These sensors offer a good compromise between long life and good value. They are well suited for applications found in water treatment, swimming pools, fish farming, algae cultivation and many other industries.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the difference between ORP and Redox?

They are the same. Redox is a shortened word for “Reduction Potential”. ORP is shortened for “Oxidation Reduction Potential”. The sensor and measurement is the same.
