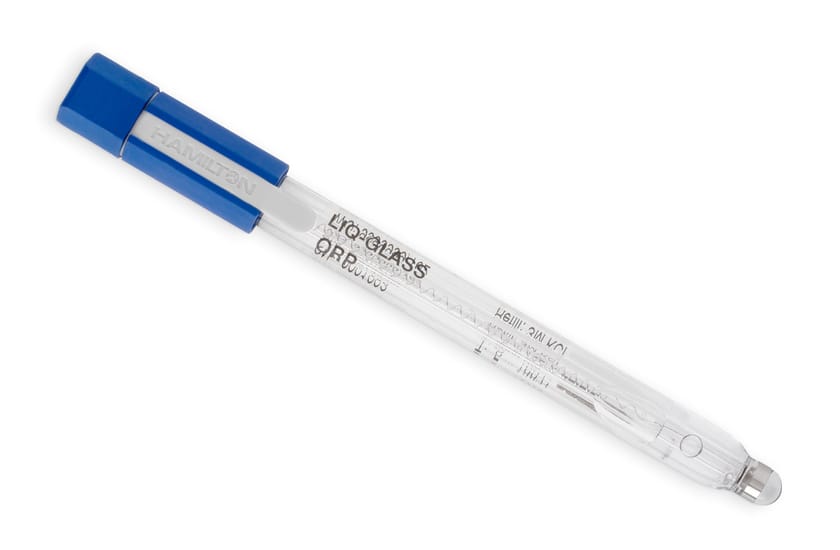

Hamilton Redox (ORP) electrodes offer universal application and long-term stability thanks to EVEREF technology. The robust Liq-Glass electrode is ideal for daily lab use in both strong acids and bases. Each sensor is serialized and certified.
Product Specifications
| Sensor Family |
Sensor Family
Liq-Glass
|
|---|---|
| Measurement Principle |
Measurement Principle
Combination electrode; ORP potential measured against reference
|
| Electrical Connector |
Electrical Connector
S7
|
| a-length |
a-length
120 mm
|
| Parameter |
Parameter
ORP
|
| Measuring Range |
Measuring Range
-2000 mV to +2000 mV
|
| Electrolyte |
Electrolyte
3 M KCl
|
| ORP Element |
ORP Element
Pt ring
|
| Membrane Shape |
Membrane Shape
Spherical
|
| Diaphragm |
Diaphragm
Ceramic
|
| Number of Diaphragms |
Number of Diaphragms
3
|
| Reference System |
Reference System
Hamilton Everef
|
| Temperature Sensor |
Temperature Sensor
No
|
| Minimum Immersion Depth |
Minimum Immersion Depth
15 mm
|
| Sensor Output |
Sensor Output
Traditional: mV
|
| Wetted Parts |
Wetted Parts
GΙass
Platinum Ceramic |
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
Yes, with measured value in ORP buffer +475 mV
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
No
|
| CIP |
CIP
No
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 100 °C
|
| Pressure Range bar g |
Pressure Range bar g
Atmospheric pressure
|
Spec. Version B
