Conducell I Conductivity Sensor

Ensure precise conductivity measurements in your applications with the Hamilton Conducell I sensor, offering easy integration into your system and long-term reliability.

Receive More Information

  • Conducell I Conductivity Sensor

Commonly Grouped Accessories

Conducell I Conductivity Sensor Details

The Conducell I is a conductivity sensor designed for accurate and dependable measurements. This sensor offers straightforward installation and requires minimal maintenance.

Ensure accurate conductivity measurements for reliable results.

Simplify setup with easy installation procedures.

Minimize downtime with straightforward maintenance guidelines.

  • Hamilton sensors enhance safety, efficiency, and reliability in chemical processes.

    Hamilton sensors and retractable fittings are not only essential for monitoring and controlling our chemical processes, but also make preventive maintenance and fault diagnosis much easier. The robustness and durability of the products mean fewer emergency call-outs and greater overall plant effectiveness. Overall, the sensors make a significant contribution to the safety, efficiency and reliability of our operating processes and help us to meet and exceed our high standards.

    Dimitri Brumm
    EMR Operating Engineer - Cassella Chemiepark

  • Hamilton’s 4UxF Arc Conductivity Sensors helped us improve our product quality.

    Hamilton’s 4UxF Arc Conductivity Sensors have become an integral part of our processes, seamlessly performing in downstream applications. The sensors are ±3% to ±5% accurate, provide consistent and repeatable measurements over a wide range (1 µS/cm to 300 mS/cm) of conductivity values. The conductivity sensors have helped us to improve our product quality, reduce our production costs, and ensure the consistency of our products.

    Marko Scharfe
    Teva Pharma

Conducell I Conductivity Sensor Specifications

Print
Wetted Parts PEEK (Polyetheretherketone)
Electrical Connector 5 m Fix Cable / Open End
Measuring Range 100 µS/cm to 2000 mS/cm (uncompensated)
Cell Constant 6.3 / cm
Temperature Sensor Pt1000, IEC 60751, Class A
Surface Quality of Steel Ra < 0.8 µm (N6)
Serial Number Yes
Response Time t90% < 26 s
Certificate Yes, with measured conductivity values
ATEX Approval No
IECEx Approval No
Diameter 33 x 28 mm
Autoclavable No
Steam Sterilizable Yes, max. Temperature 150 °C / 5 bar (max. 60 min)
CIP Yes
Operating Temperature Range -10 to 125 °C
Protection Rating IP68

Conducell I Conductivity Sensor Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

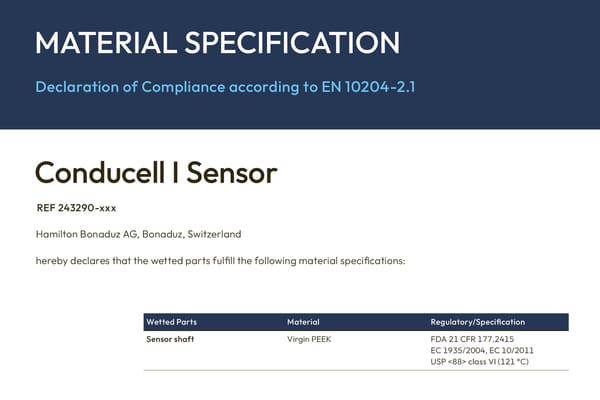

Material Specification sheet for Conducell I Sensor (REF 243290-xxx) listing Virgin PEEK sensor shaft with FDA, EC, and USP compliance

Material Specification

Material Specification - Conducell I Sensors - EN 10204-2.1 - 695238

Download the material specifications for the Conducell I conductivity sensors, providing detailed information on material composition and relevant regulatory standards.
Conducell 4UxF sensor operating instructions bilingual manual in English and German

Technical Manual

Operating Instructions - Conducell 4UxF Sensors

Download the operating instructions for the Conducell 4UxF conductivity sensors.
Hamilton Process Analytics catalog cover showing sensors labeled ORP, CO₂, GLC, TCD, VCD, DO, Cond, and pH

Catalog

Catalog - Process Analytics

Download the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Conductivity Sensor Selection

There are two basic styles of conductivity sensors. This article discusses which products are the best fit for the application.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Do conductivity sensors have shelf life?

No, conductivity sensors do not have a shelf life thus can be stored indefinitely.
