RetractoFit Easy
Space-saving Design
Fits Tanks and Pipes
Ø12-120mm Sensors
Holds Sensor in Place
Different Process Connections
Easy Sensor Alignment
Durability
Steel or Plastic
Chemical Resistance
Easily Align Sensors
The RetractoFit Easy probe housing simplifies sensor management by protecting the sensor from mechanical impacts, and ensuring secure sensor placement and alignment for optimal measurement accuracy. This user-friendly sensor housing is well-suited for use on tanks and pipes.

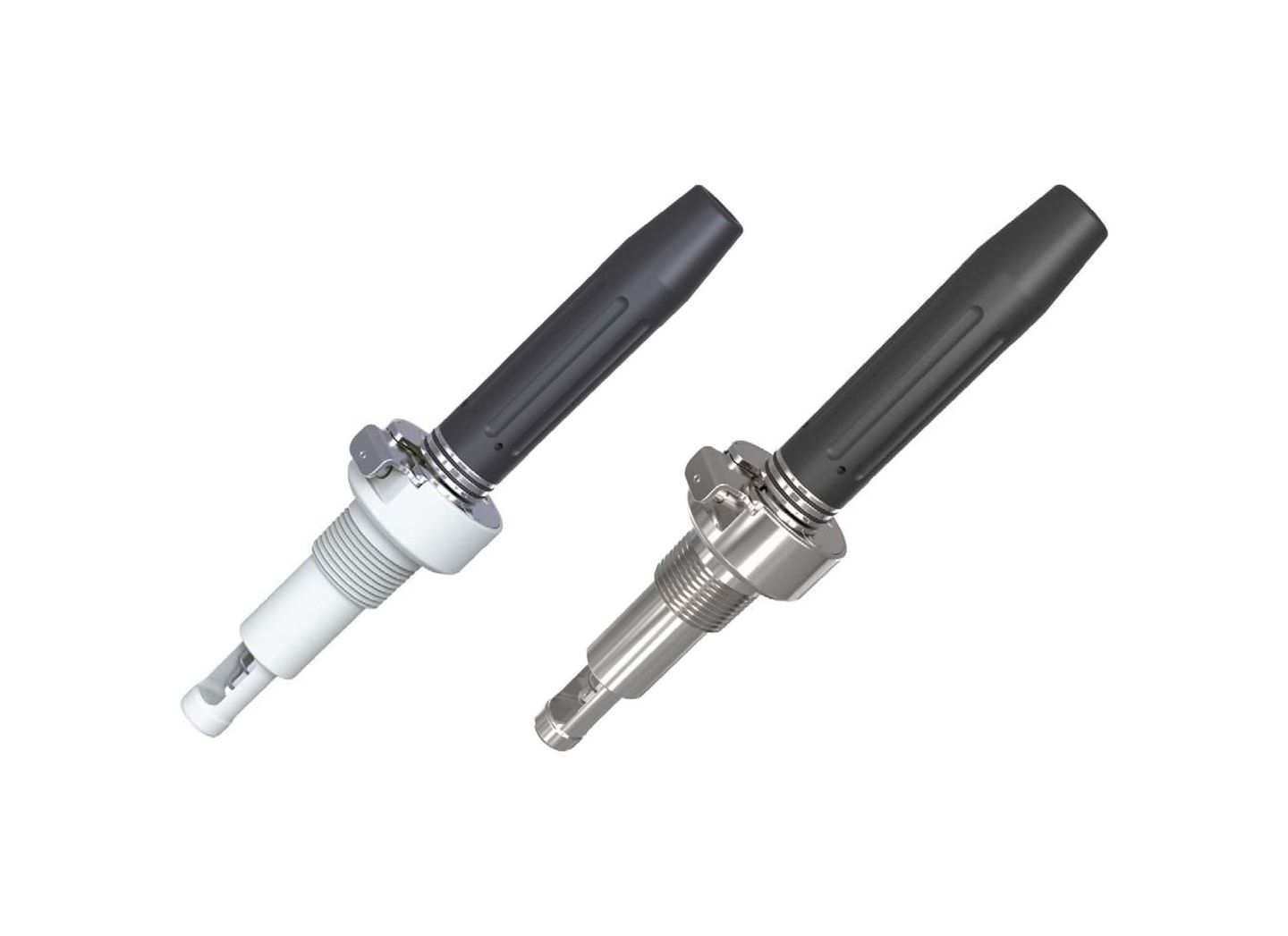

RetractoFit Easy Retractable Sensor Housing
Easing tank and pipe sensor measurements
The RetractoFit Easy is a straightforward retractable probe housing that is compatible with Hamilton’s Ø12-12Omm sensors for process analytics and has a housing insertion depth of 76 mm. Note that it is not suitable for Conducell and Incyte Sensors.
Applications such as chemical, food and beverage, pharmaceutical, and other markets sensing fluids in tanks and pipes would benefit from RetractoFit Easy.
This manual retraction sensor housing comes in your choice of polypropylene or stainless steel wetted parts and sealing material options. Inquire about custom materials.
Simple manual operation:
The compact RetractoFit Easy securely holds the sensor in place during manual insertion or extraction from the process. The effortless alignment of the protective cage ensures that the inserted sensor is properly shielded from mechanical impact and can still be aligned for optimal sensor measurements.
A compact design allows seamless integration into systems, and the manual retraction mechanism supports easy sensor handling.
The integrated locking mechanism holds sensors and enables protective cage alignment while shielding the sensor from mechanical impacts.

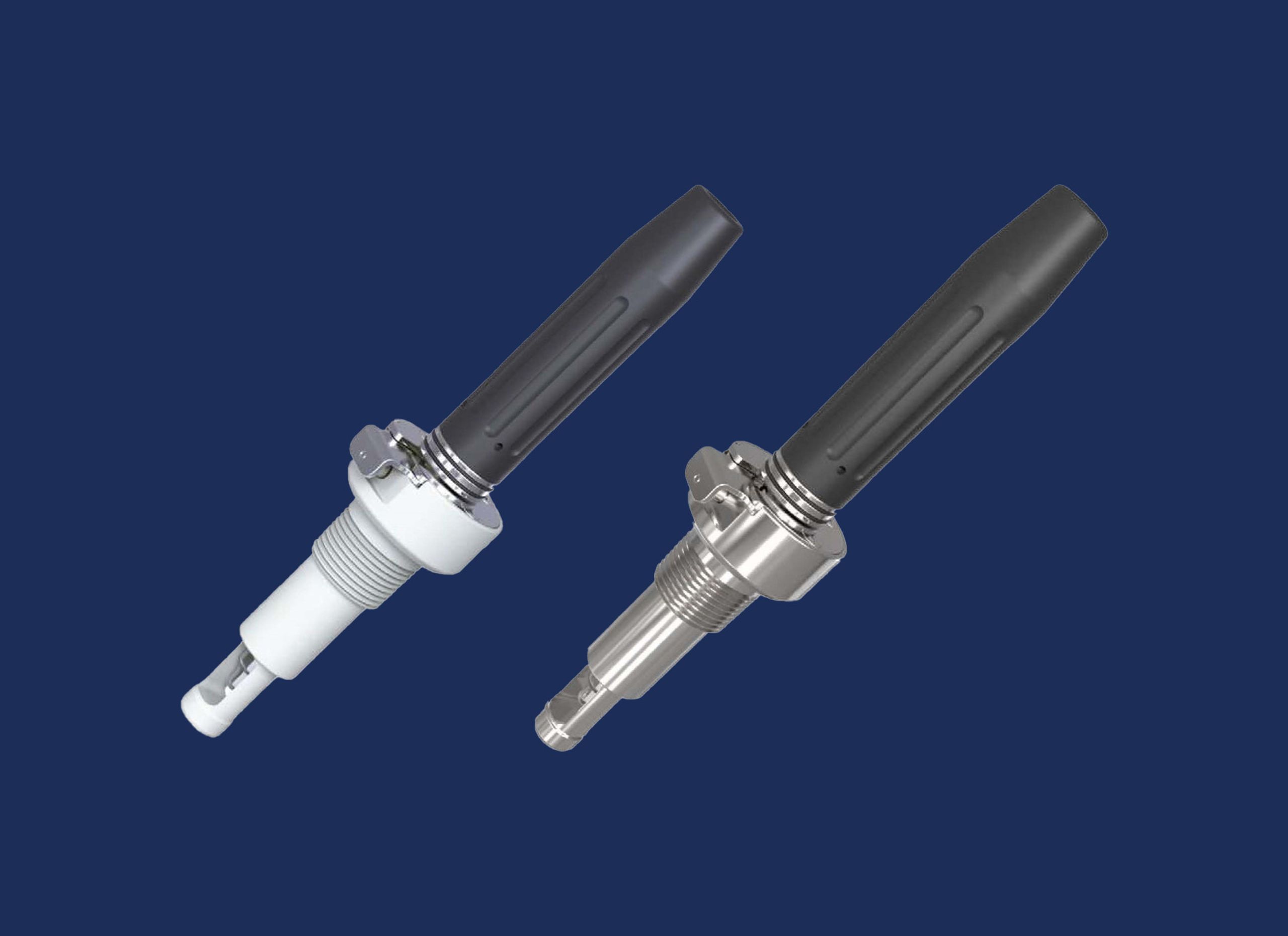

Stainless steel or plastic (PP) materials offer process versatility.
Key Features of the RetractoFit Easy Sensor Housing
The RetractoFit Easy provides simple and reliable sensor integration. Its key features ensure secure and convenient measurement in various applications.
1
Compact Design
Suitable for tank and pipe installations where space is limited.
2
Integrated Locking
Securely holds the sensor, preventing unwanted movement and allowing precise alignment of the protective cage.

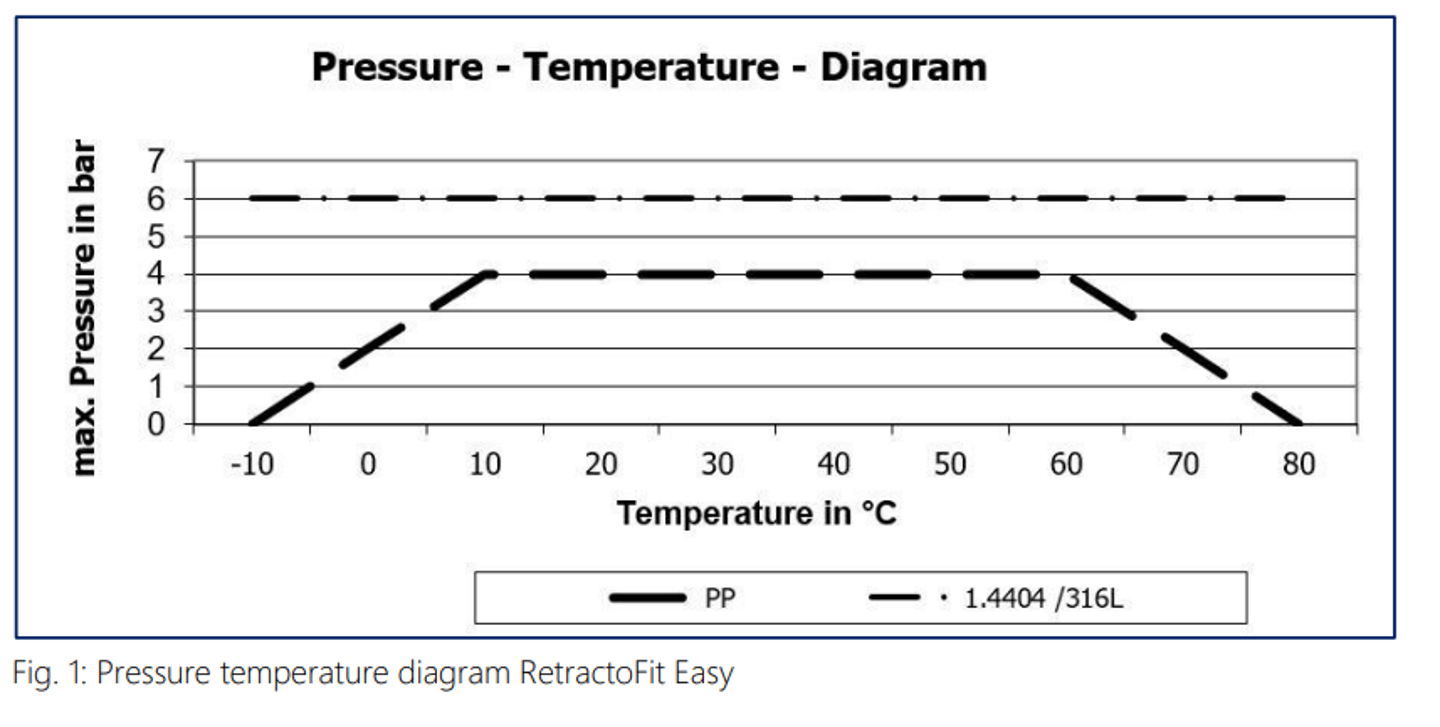

Pressure Temperature Diagram

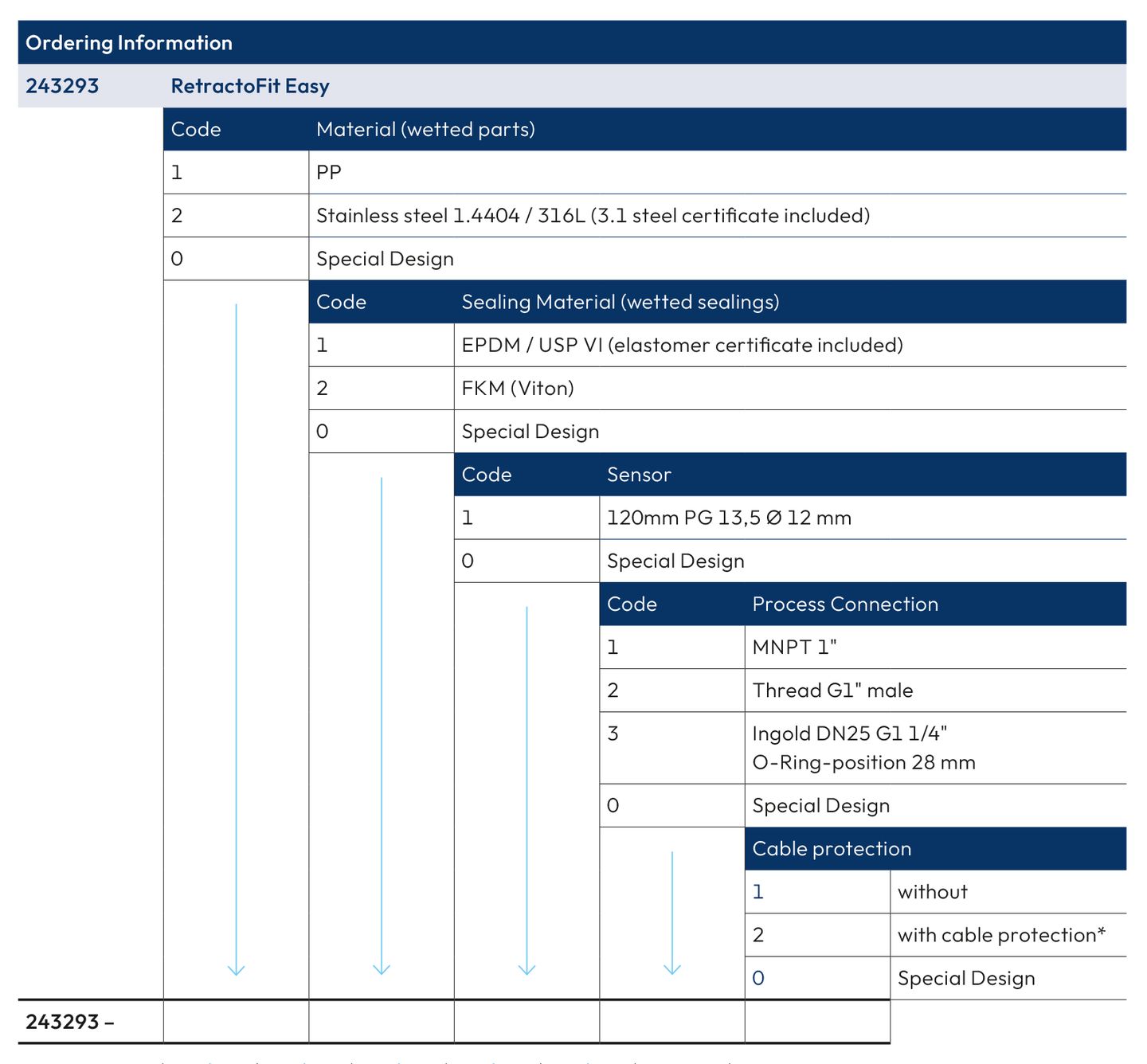

Ordering Information
Webinars
Process Analytics Webinars
Explore our upcoming live and on-demand virtual events.
RetractoFit Easy Specifications
RetractoFit Easy Specifications
Print- Wetted Parts
- Stainless Steel 1.4404
EPDM (FDA approved, USP Class VI)
PP (Polypropylene)
- Housing Material
- Stainless steel 1.4404 (316L) < Rₐ 0.78um; PP
- For Sensors with
- 120 mm, 12 mm, PG13,5
- Process Connection
- NPT 1" Thread
Thread G 1"
lngold DN25 G1¼"
- Housing Insertion Depth
- 76 mm
- Temperature Range
- -10 to 80 °C (See Pressure Temperature Diagram)
- Sealings
- EPDM; FKM (Viton)
- Drive unit
- Manually operated; Axially movable
- Feedback
- Without
- O-ring Position
- 28 mm
- Length of protection cage
- 36 mm
- Product Name
- RetractoFit Easy
