FlowCell UR
Versatile
Dual-Sensor
Integration
Flexible
8 Connections
Options
Precise
Real-Time
Measurements
Customizable To Your Needs
Integrate up to two sensors into your process stream with the FlowCell UR, a versatile flow-through cell engineered for both in-line and at-line measurements. It provides reliable, real-time analytical data under demanding process conditions.

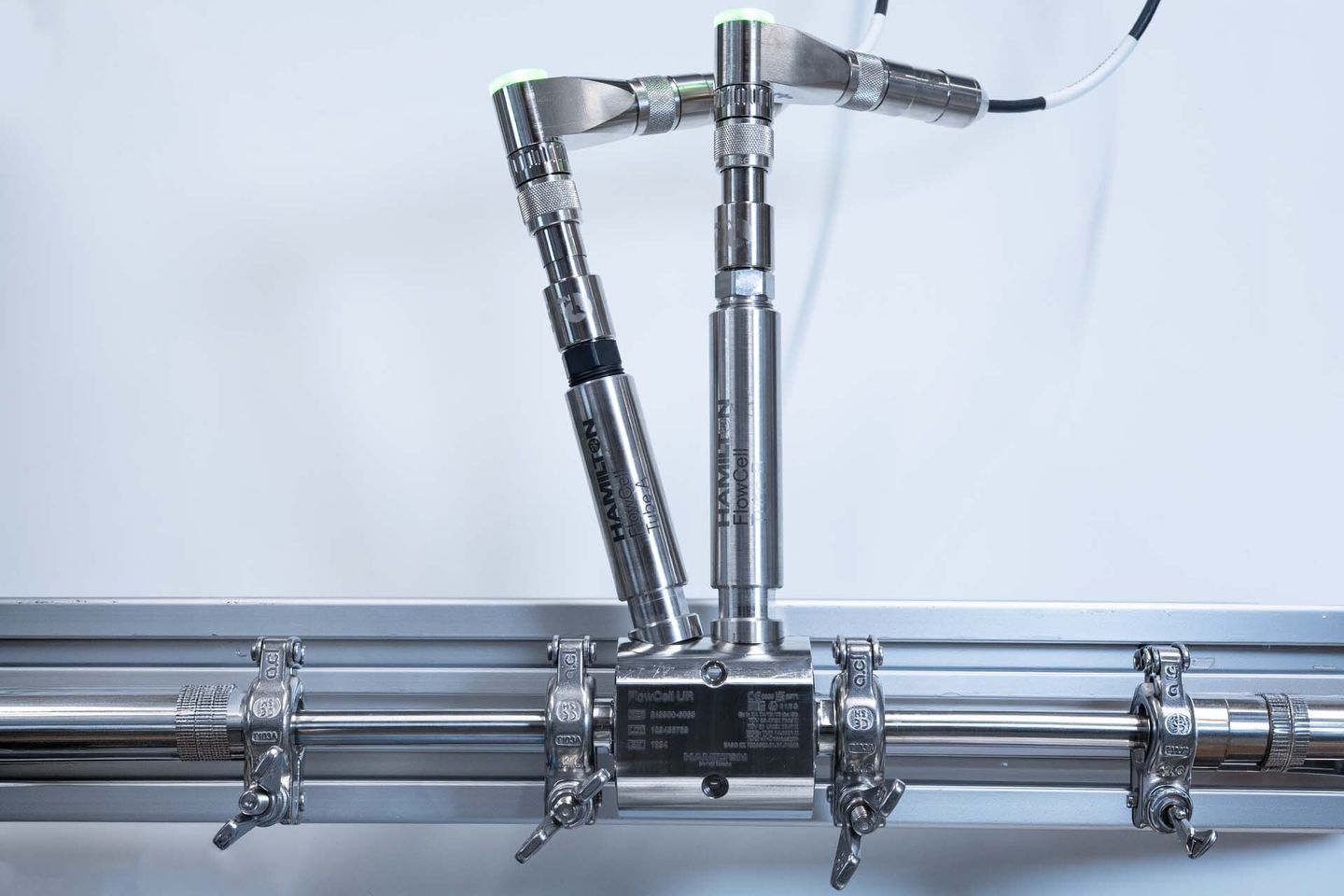

FlowCell UR Sensor Housing
The FlowCell UR is a modular sensor housing that supports a broad range of sensor types, including pH, dissolved oxygen (DO), and conductivity, as well as advanced density and specialty sensors such as Dencytee and UPW.
Sensors can be installed individually or in combination, allowing flexible configuration tailored to specific analytical requirements.
With eight process connection options and multiple sealing materials, the FlowCell UR can be precisely adapted to your process environment, ensuring chemical compatibility and operational reliability.
Compared to the FlowCell XL, the FlowCell UR features a 180° port orientation and no internal PEEK lining. Its larger internal volume optimizes measurement performance for sensors that require defined flow dynamics and sufficient sample volume, such as the Dencytee sensors.
Designed for adaptability, robustness, and measurement precision, the FlowCell UR delivers a scalable solution for process analytics across a wide range of industries.
Accommodates up to two sensors simultaneously, compatible with pH, DO, conductivity, Dencytee, UPW, and more.
Eight process connections and multiple sealing materials ensure optimal adaptation to your specific application.
A larger internal volume and 180° port configuration provide accurate sensor readings for defined flow dynamics.
Explore FlowCell UR
1

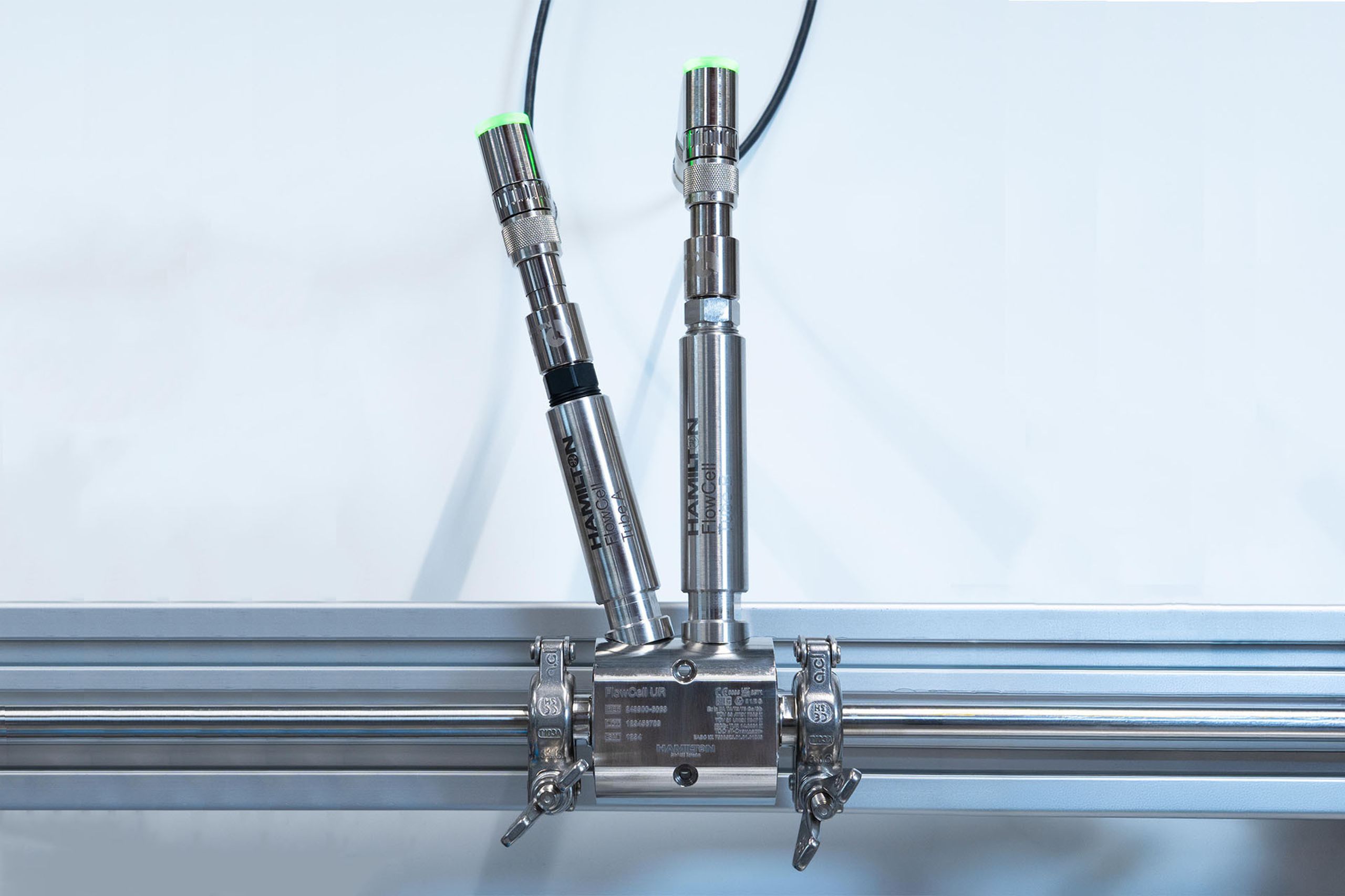

Dual Sensor Ports
Allows simultaneous measurement of one or two parameters in a process line or bypass loop.
2
Optimized Flow Dynamics
Designed with a 180° port orientation and no internal PEEK lining to provide sufficient sample volume for advanced sensors.
3

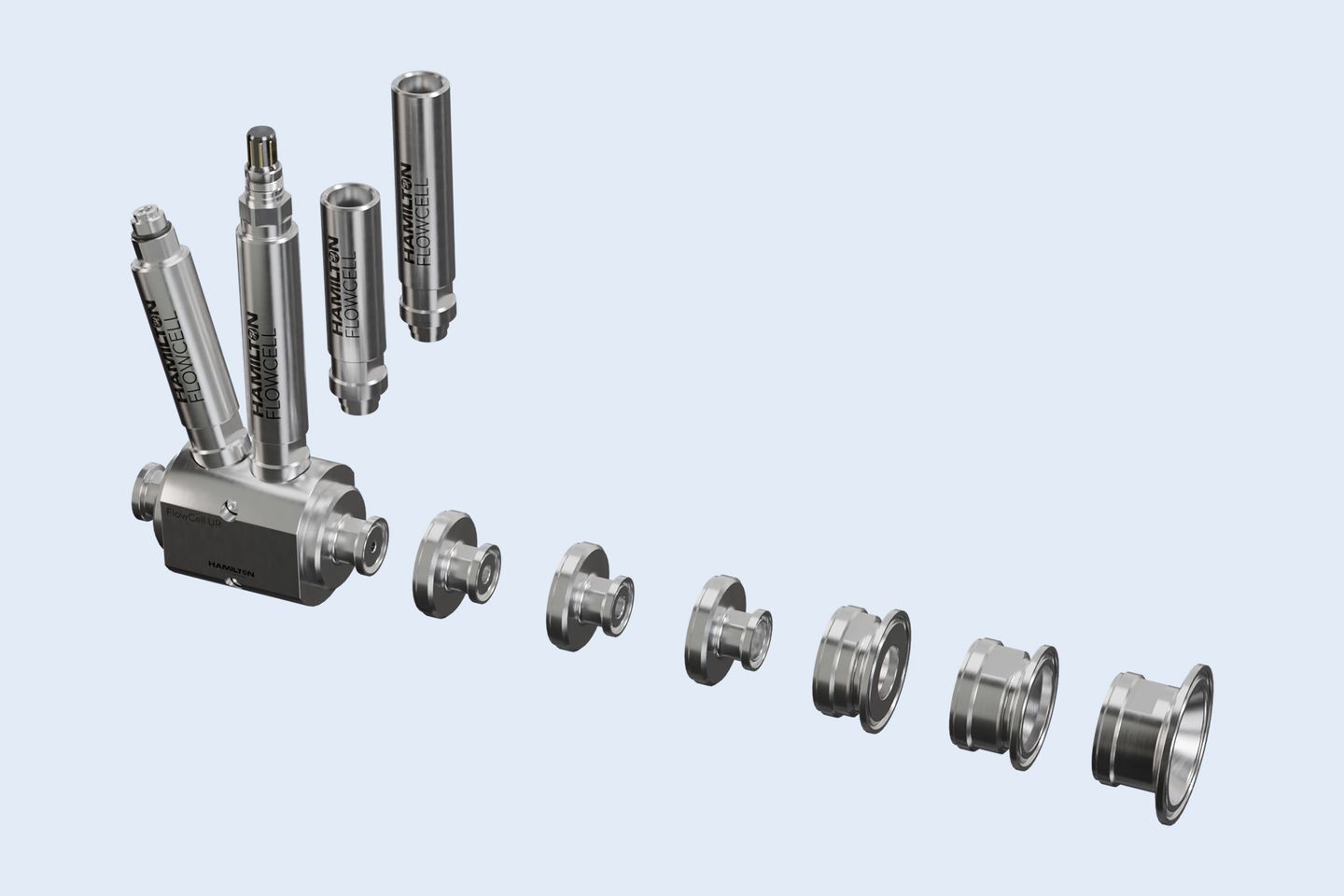

Modular Design
Supports a broad range of 12 mm sensors with PG 13.5 threads, suitable for different sensor technologies and measurement principles.
4

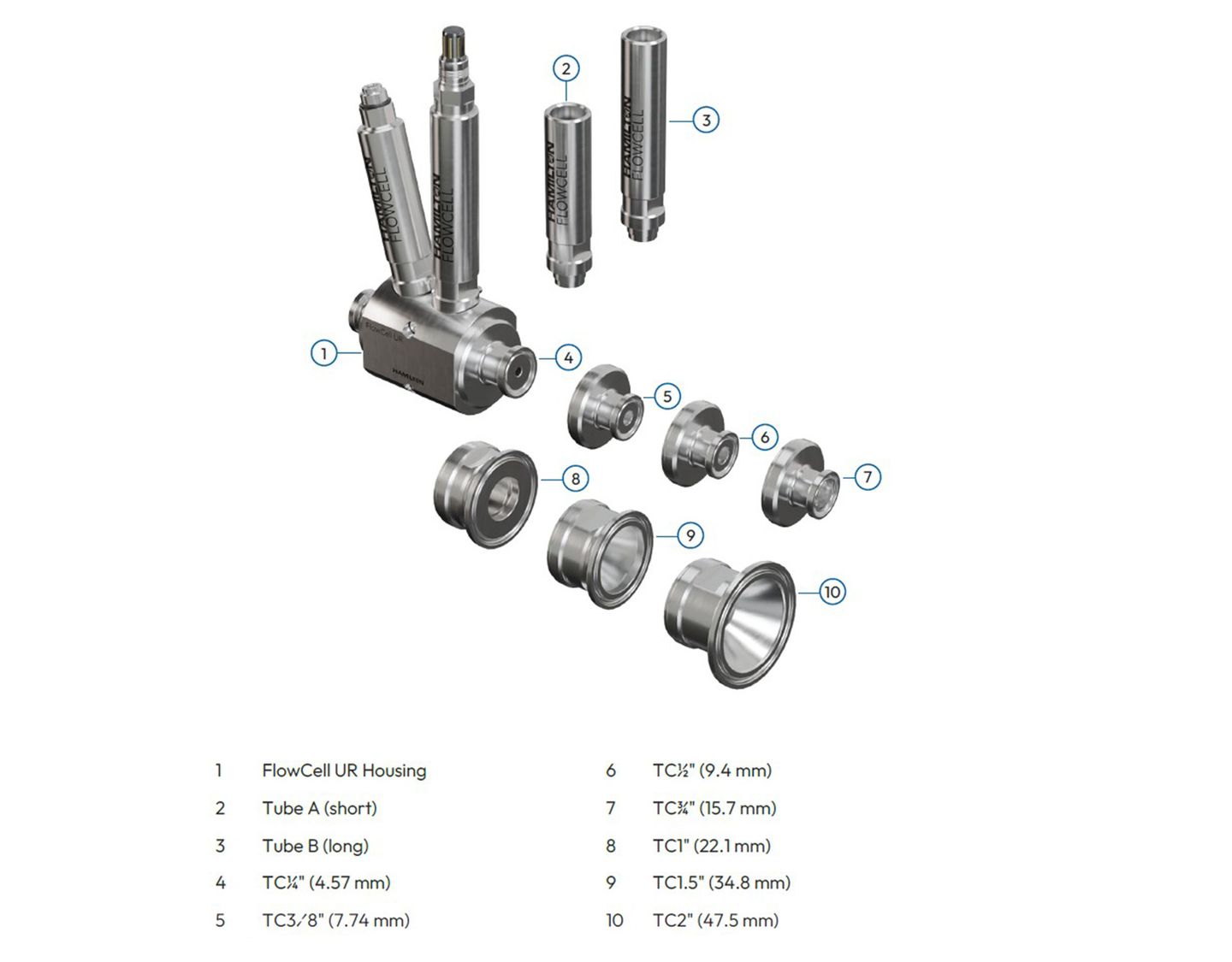

Versatile Connections
Features eight different process connection options for precise adaptation to various process environments.

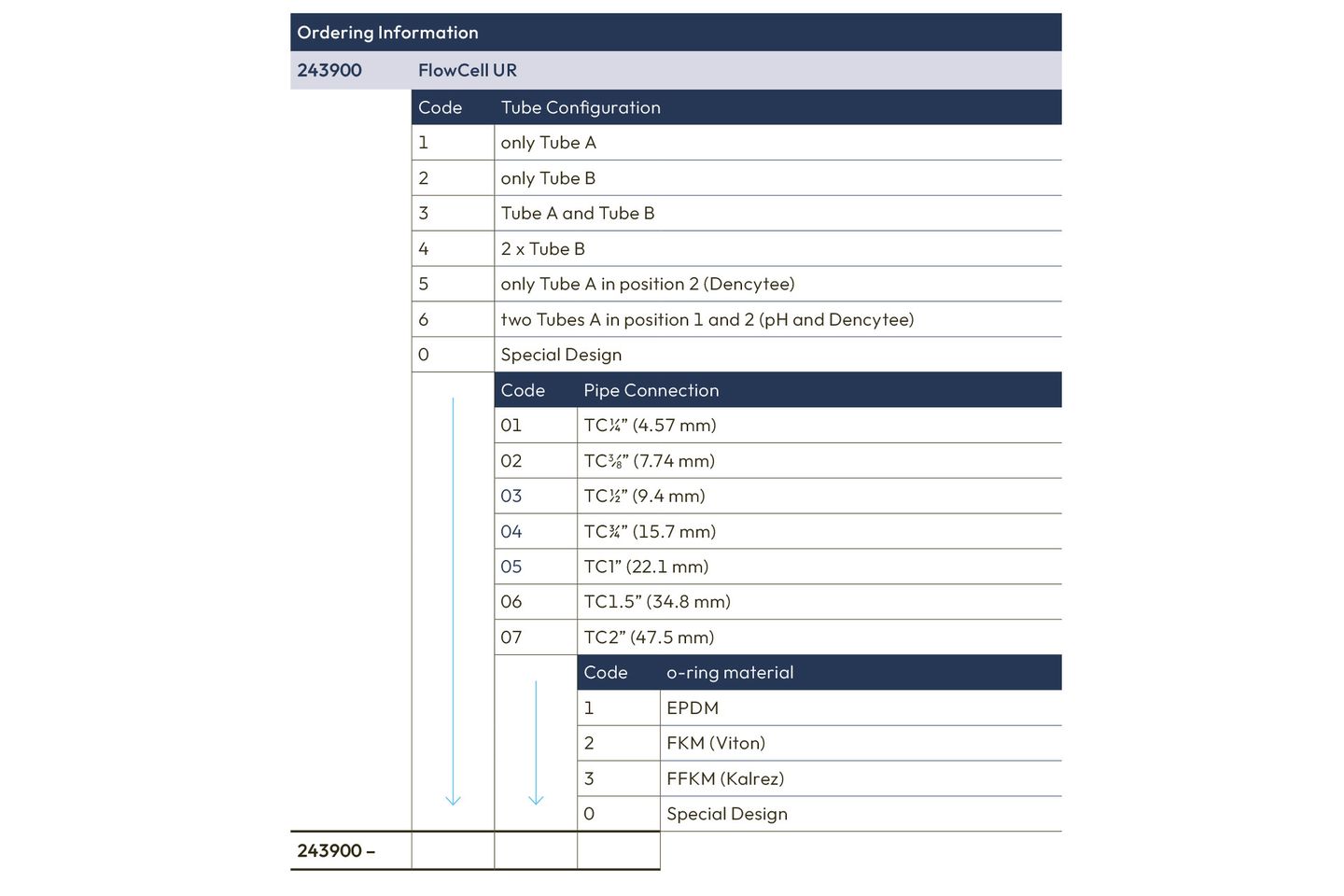

Ordering Information
Webinars
Process Analytics Webinars
Explore our upcoming live and on-demand virtual events.
FlowCell UR Specifications
FlowCell UR Specifications
Print- Wetted Parts
- Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
- O-ring Material
- EPDM (FDA approved, USP Class VI) or FFKM
- Pressure Range (bar g)
- 0 to 16 bar
- For Sensors with
- 120 mm, 12 mm, PG13,5
- ATEX approval
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb (cannot be used in dust)
- IECEx approval
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb (cannot be used in dust)
- UKEx approval
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb (cannot be used in dust)
- EAC Ex approval
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb (cannot be used in dust)
- Process Connection
- See drawing
- Operating Temperature Range
- -10 to 140 °C
- Dimensions (W X D X H)
- See drawing
- Max. Diameter
- 64 mm
- Max. Total Length
- 172 mm
- Min. Total Length
- 148 mm
- Mounting
- 2 Allen screws M4*40
- Serial Number
- Yes
- Certificate
- Yes, 3.1 certificate with heat number
- Autoclavable
- Yes
- CIP
- Yes
- Steam Sterilizable
- Yes
- Product Family
- FlowCell
