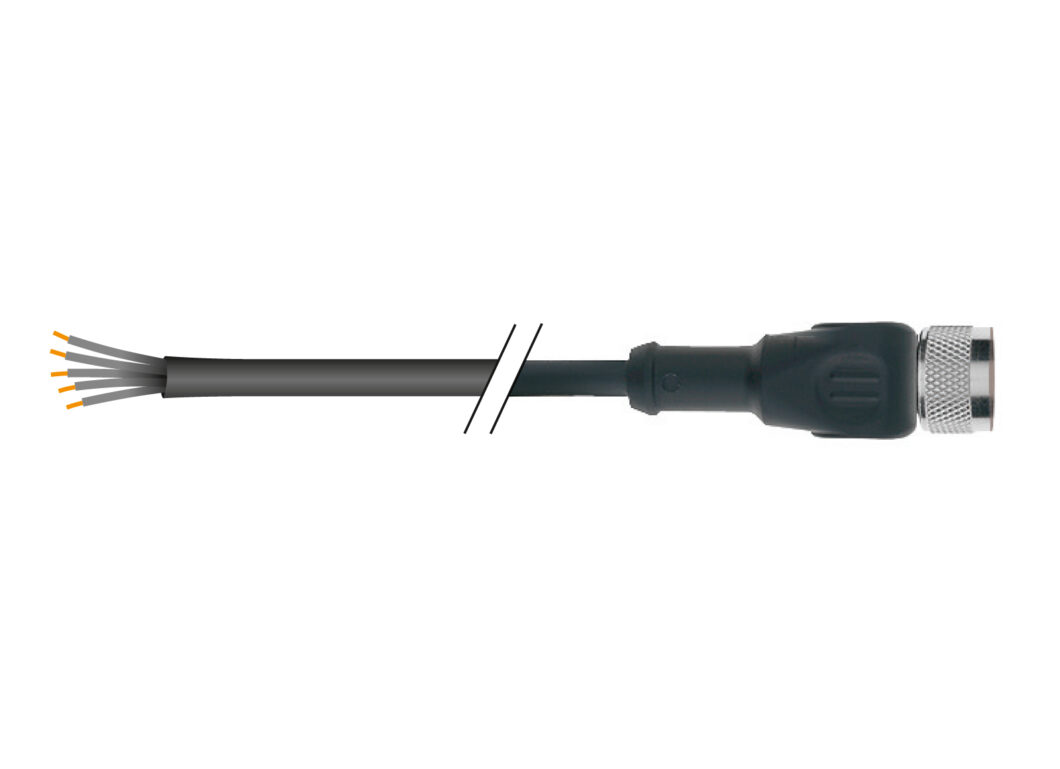

5 m Cable M12-8 Pole / Open End
8-pole M12-8 Arc Sensor Cable, designed to connect the Arc WI 2G adapter BT to a data recorder, indicator, control unit or PCS with analog I/O - 5 Meter length.
Found in these product categories:
Part/REF # 355321
-
$123.90(In Stock)(In Stock)Stock status is updated daily. For real-time status, please contact us.
Specifications
| Electrical Connector |
Electrical Connector
M12-8 Pole A-Coded / Open End
|
|---|---|
| Length |
Length
5 m
|
| Max. Diameter |
Max. Diameter
6 mm
|
| Material Outer Cover |
Material Outer Cover
PU
|
| Shield |
Shield
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-20 to 85 °C
|
| Protection Rating |
Protection Rating
IP 68 (M12 connector)
|
Resources
Documents
-
Catalogs
-
Certificates
-
Technical Manuals
-
Technical Note
