ZEUS Self-Contained Pipette Channel
Real-time aspiration/dispense
Qualitative Pipette Monitoring™
accuracy check
Drip prevention
Anti-Droplet Control
for volatile liquids
Built-in motion axis
Z-axis
integrated
All-in-One Pipetting. Ready to Integrate.
Hamilton’s ZEUS Self-Contained Pipetting Module brings intelligent air-displacement technology, integrated Z-axis movement, and real-time monitoring into one powerful solution—ideal for seamless OEM integration in your instrument.
The ZEUS Self-Contained Pipetting Module is Hamilton's high-performance solution for OEM integration. Designed for seamless onboarding into lab instruments, ZEUS performs precision pipetting from 1 μL to 1 mL with disposable CO-RE™ (compressed O-ring expansion) tips, eliminating carry-over and reducing contamination risks. The module includes integrated Z-axis movement, liquid class recognition, real-time pipette monitoring, and intelligent error handling—all packed in a compact, ready-to-use design.
Common applications Analytical Chemistry, Dilutions and Dispensing
Featured Technologies
-
Liquid Handling TechnologyAnti-Droplet Control (ADC)
For Drip-Free Pipetting
Pressure sensors on Hamilton’s pipetting channels continuously detect variations. Any changes are immediately compensated for by dosing drive movements to prevent droplet formation. Essential for high-precision and accuracy when pipetting volatile liquids like ethanol and acetonitrile.
-
Liquid Handling TechnologyDual Liquid Level Detection (LLD)
For Accurate Aspirations
Dual LLD uses two sensors on each liquid handling pipetting channel. A capacitance sensor detects aqueous and conductive liquid surfaces while a pressure-based sensor works with non-conductive, viscous, and volatile liquids. Together, they ensure highly accurate and reliable liquid handling performance.
Modular. Accurate. Intuitive.
Accurately detect liquid surfaces or fragile foil seals—automatically—with no manual calibration, ensuring exact positioning and protecting sample integrity.
Disposable CO-RE™ tips isolate your sample from the pipetting mechanism, ensuring clean results every time.
Choose from straight, folded, or right-angle Z-axis configurations to perfectly match the mechanical constraints and workflow of your system.
Coordinate pipette and Z-axis movements effortlessly using predefined liquid classes for greater consistency, reduced programming time, and minimized human error.

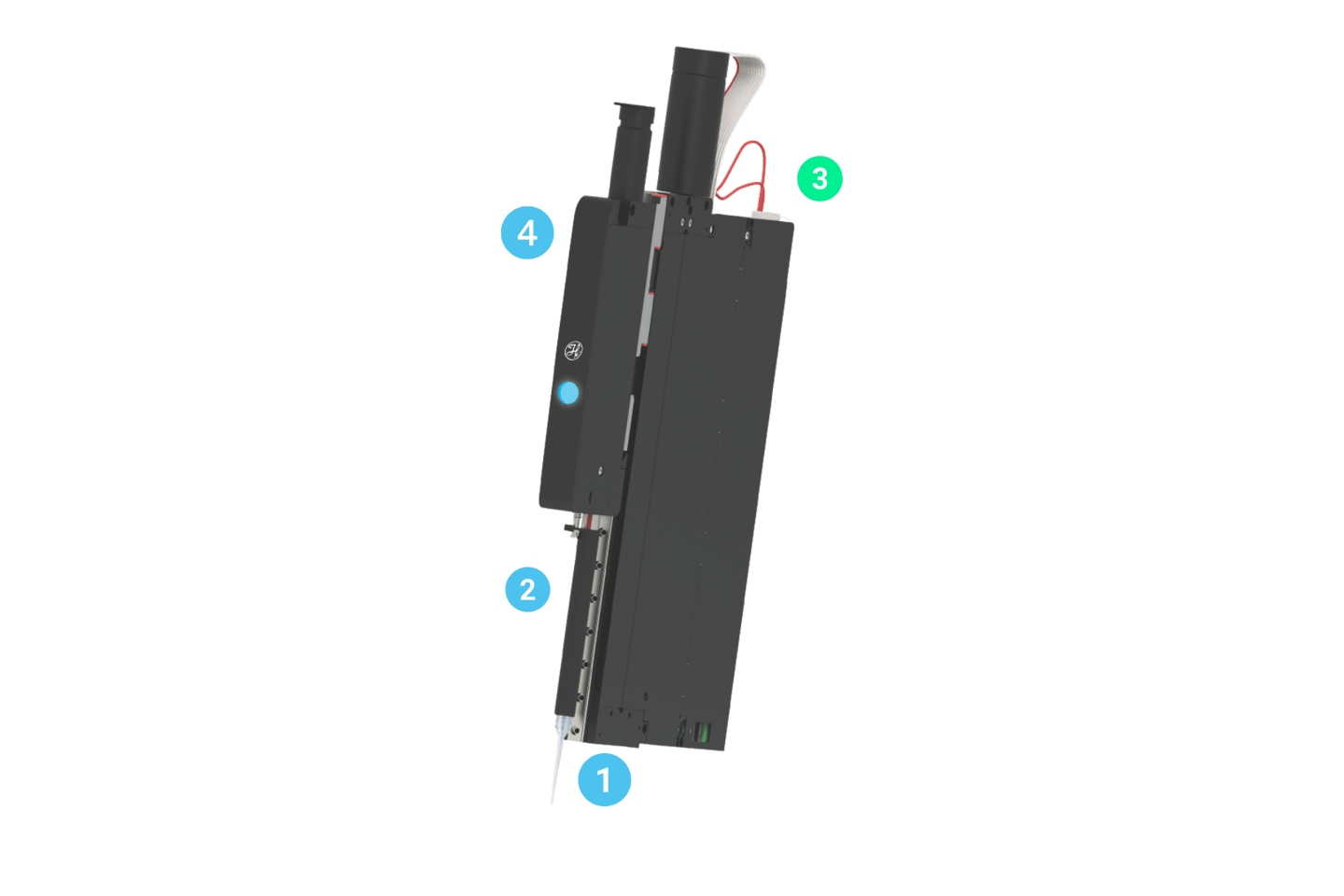

Beyond Pipetting
1
Z-Axis Motion Included
A high-resolution Z-drive (0.1 mm) is fully integrated, removing the need for external motion hardware and simplifying automation.
2
Flexible Tip Ejection and Detection
Automatically detects and ejects tips for seamless transitions between tasks, enhancing hands-free operation.
3
Hamilton CAN Protocol
Easy integration into your system with robust and scalable communication using Hamilton’s proprietary CAN interface.
4
Pipetting Module with On-Board Intelligence
The ZEUS pipetting module features a self-contained drive system equipped with onboard intelligence, enabling advanced control over every aspiration and dispense action. This intelligent integration interprets sensor feedback in real time and adjusts operations for maximum accuracy—no need for external motion controllers or additional logic layers.

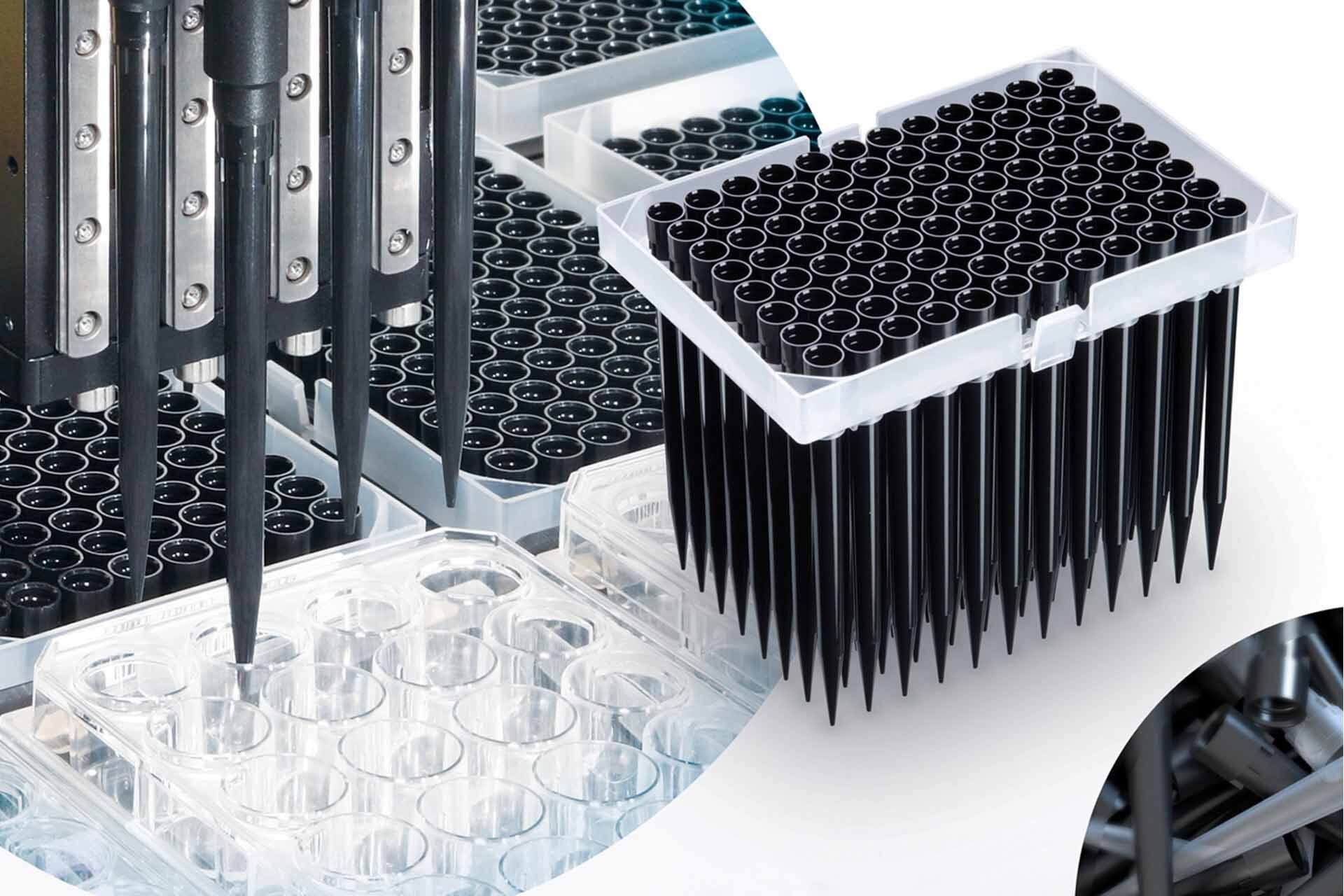

We Have a Tip for That
Hamilton manufactures a wide range of pipette tips to tackle a variety of common automation challenges. Experience the unrivaled flexibility Hamilton's ZEUS pipetting channel has to offer for your OEM projects.
Conductive, sterile, filtered, slim, and wide bore tips are available in a variety of different volumes and packaging options.
More than just a component
Explore essential tools for full system integration — including the ZEUS Self-Contained Pipette Channel, compatible accessories and spare parts.
ZEUS Self-Contained Pipette Channel Specifications
ZEUS Self-Contained Specifications
Print- z-Drive Excursion
- 180 mm
- Volume Range
- 1 - 1,000 µL
- Pipetting Resolution
- 0.1 µL
- Maximum Pipetting Speed
- 150 mm/s corresponding to 2,500 µL/s
- Device Addressing
- up to 31 modules on a single CAN bus
- Communication Interface
- CAN (Hamilton protocol), FCC connector
