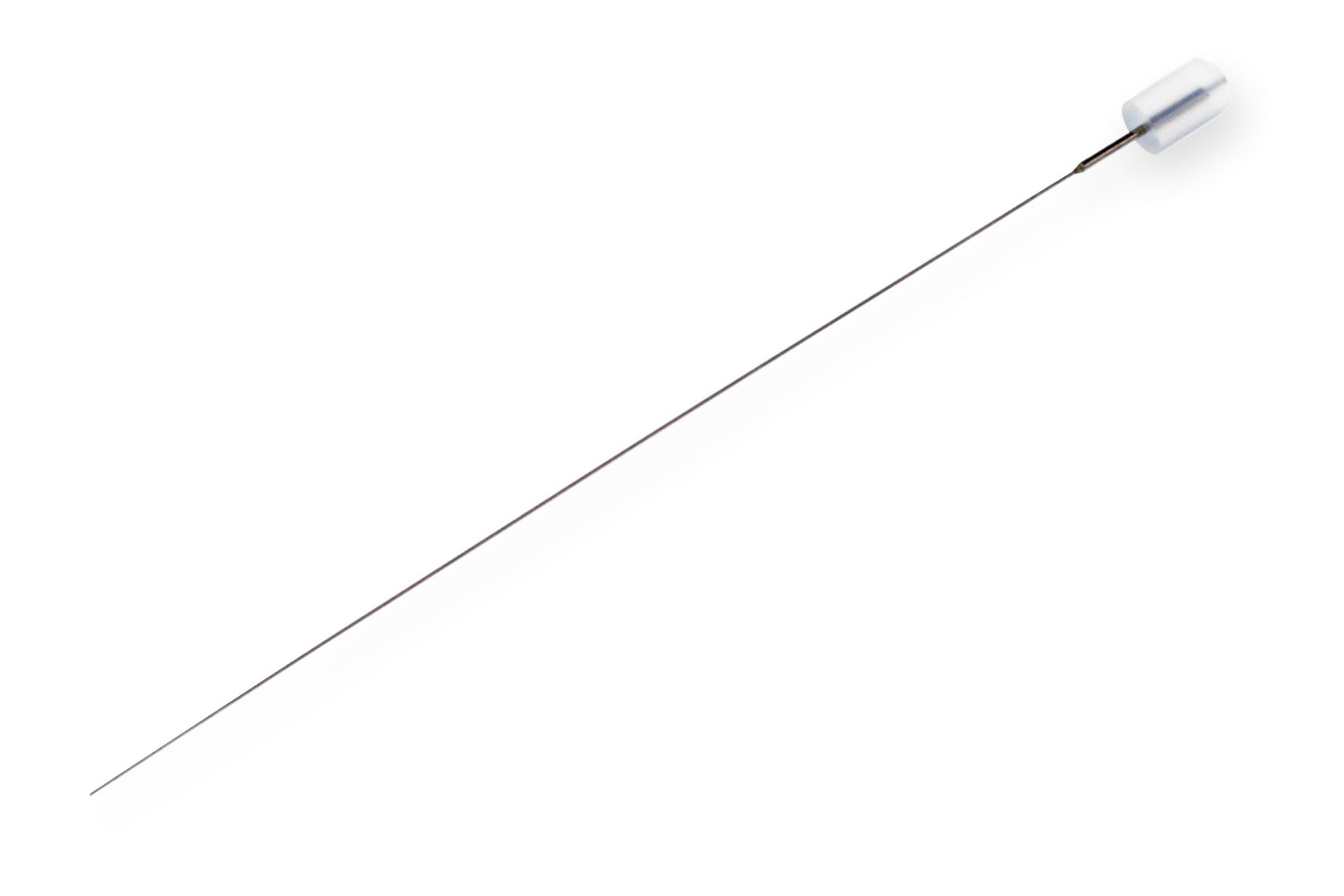

0.2 mm, Gel Loading, Small Hub RN Needle, PN: 78633

69.9 mm, Point Style 3, Adjustable Position, 4 per Pack

Part # 78633

Hamilton’s 0.2 mm Gel Loading Needle (PN: 78633) is engineered for flexibility and protection in electrophoresis workflows. This removable needle includes a thicker gauge protective jacket that shields the inner fine needle, leaving only the short tip exposed to reduce the risk of bending or breakage. Its adjustable mounting enables custom depth settings for different gel formats. Constructed of corrosion-resistant stainless steel and designed to fit RN-style adjustable position gel loading syringes.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

0.2 mm, Gel Loading, Small Hub RN Needle, PN: 78633 Details

The 0.2 mm Gel Loading Needle (PN: 78633) is a jacketed, removable needle designed for use with Hamilton adjustable width Gel Loading Syringes. Its inner fine gauge stainless steel needle is encased in a protective outer jacket, exposing only a short section for controlled sample delivery. This design prevents tip damage while allowing accurate positioning within variable gel thicknesses. The needle connects via a small hub RN fitting, is autoclavable, and comes in a pack of 4.

Jacketed design protects the fine 0.2 mm needle, minimizing deformation and breakage

Enables precise gel well targeting for DNA, RNA, and protein samples, compatible with Hamilton RN-style Adjustable Gel Loading Syringes

Autoclavable and reusable, suitable for routine or flexible lab workflows

Stainless Steel Needle with RN Compatibility

  • Built from high-grade 304 stainless steel, the needle offers resistance to corrosion and deformation. Its RN-style hub ensures secure and simple connection to Hamilton adjustable Gel Loading Syringes

Precision Gel Loading with Enhanced Protection

  • The 0.2 mm needle is enclosed in a protective outer jacket that exposes only a short tip, reducing the risk of bending and increasing longevity while maintaining pinpoint accuracy for gel applications
Scientific Citations

0.2 mm, Gel Loading, Small Hub RN Needle, PN: 78633 Specifications

Print
Gauge 0.2 mm
Point Style 3: Blunt
Needle Length 2.75 inches (69.9 mm)
Autoclavable Yes
Gas Sterilizable Yes
Sales Quantity 4 needles per pack
Hub Small RN

0.2 mm, Gel Loading, Small Hub RN Needle, PN: 78633 Resources

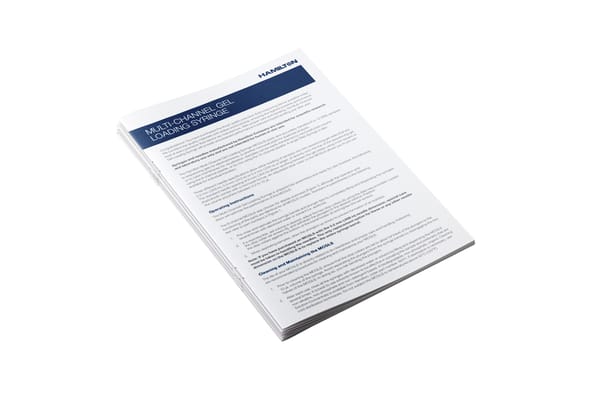

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.
