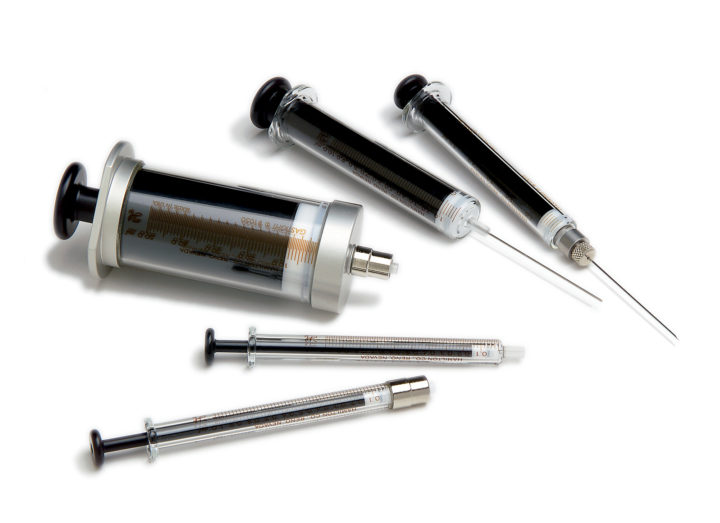

The 1000 series syringes are a mid-volume Gastight syringe. This series of syringes is ideal for dispensing volumes from 100 μL up to 100 mL. A variety of different terminations and needle options are available in this series.
|Model Number||Volume||Barrel Inner Diameter||Stroke Length||Operating Pressure||Operating Temperature|
|1001||1 mL||4.61 mm||60 mm||1 MPa||10 - 115 °C1|
|1002||2.5 mL||7.29 mm||60 mm||1 MPa||10 - 115 °C1|
|1005||5 mL||10.30 mm||60 mm||1 MPa||10 - 115 °C1|
|1010||10 mL||14.57 mm||60 mm||1 MPa||10 - 115 °C1|
|1025||25 mL||23.03 mm||60 mm||0.7 MPa||10 - 80 °C1|
|1050||50 mL||32.54 mm||60 mm||0.7 MPa||11 - 80 °C1|
|1100||100 mL||32.54 mm||120 mm||0.7 MPa||12 - 80 °C1|
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Syringe TerminationsOne of the first steps to understanding the ideal syringe for your specific application is to know which termination is best. This article help you make that determination, explaining what to choose based on your requirements like dispense volume, need for autoclaving, desired dead volume, pressure tolerances, or necessary headspace.
Needle Point Style GuideHamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
