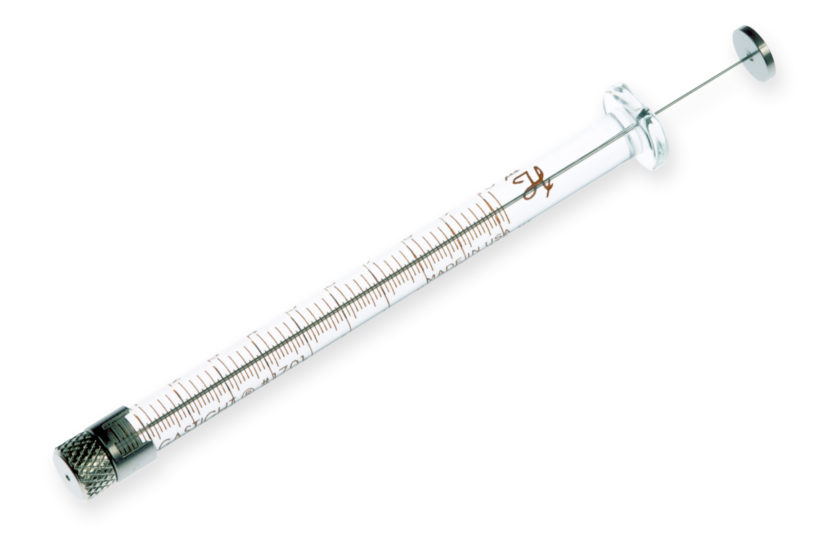

10 µL Gastight Syringe Model 1701 RN, Small Removable Needle, Needle Sold Separately
Part/REF #s: 7653-01, CAL7653-01
Found in Hamilton 1700 Series Syringes, Calibrated Syringes, Removable Needle Syringes (No Needle).
Specifications
| Volume | 10 µL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1700 |
| Termination | Removable Needle (RN) |
| Needle | Small RN |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Fluid Path | SST, borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 1000 psig (68.9 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.018 inches (0.460 mm) |
| Barrel Outer Diameter | 0.260 inches (6.60 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
