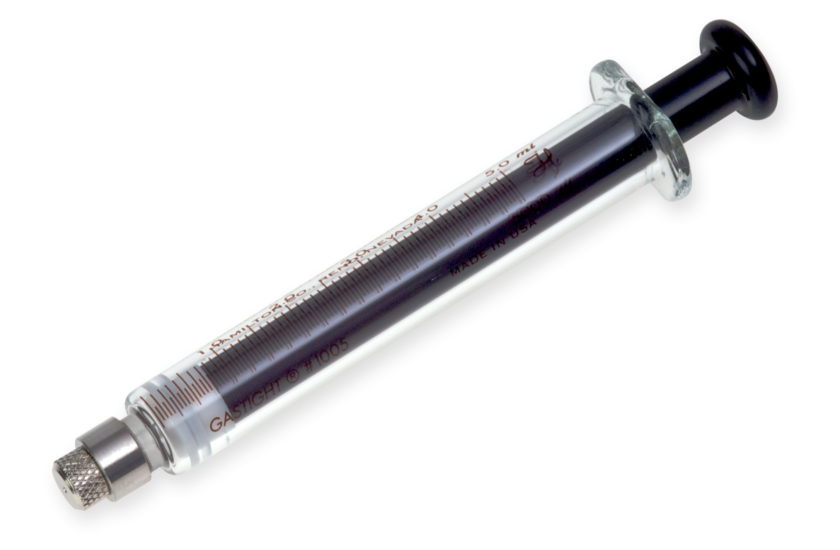

5 mL, Model 1005 RN SYR, NDL Sold Separately
Part/REF #s: 7651-01, CAL7651-01
Found in 1000 Series Syringes, Calibrated Syringes, Removable Needle Syringes (No Needle).
Specifications
| Volume | 5 mL |
|---|---|
| Syringe Type | Gastight |
| Syringe Series | 1000 |
| Termination | Removable Needle (RN) |
| Needle | Large RN |
| Gauge | No Needle Included |
| Point Style | No Needle Included |
| Needle Length | No Needle Included |
| Fluid Path |
Borosilicate glass, PTFE SST, borosilicate glass, PTFE |
| Autoclavable | Yes |
| Gas Sterilizable | Yes |
| Pressure | 200 psig (13.8 bar) |
| Maximum Temperature | 115°C / 239°F |
| Minimum Temperature | 10°C / 50°F |
| Barrel Inner Diameter | 0.406 inches (10.3 mm) |
| Barrel Outer Diameter | 0.530 inches (13.5 mm) |
| Std Needle Dead Volume | N/A |
| Sales Quantity | 1 syringe per pack |
Resources
Hamilton's knowledge base provides a range of explanatory articles, frequently asked questions, and document downloads.
-
Specification Sheet
5 mL, Model 1005 RN SYR, NDL Sold Separately -
Instructions - Syringe Calibration
Learn about how Hamilton handles calibration of syringes via a gravimetric measurement.
-
Syringe Terminations
One of the first steps to understanding the ideal syringe for your specific application is to know which termination is best. This article help you make that determination, explaining what to choose based on your requirements like dispense volume, need for autoclaving, desired dead volume, pressure tolerances, or necessary headspace. -
Hamilton Needle Point Style Guide
Hamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
Work with R&D engineers to customize Hamilton parts
Hamilton's "Custom Built" program puts you directly in contact with a Hamilton R&D Engineer to discuss your application and product needs. The engineer will point you to a standard solution or propose a customized solution to meet your needs.
Talk to an engineer
