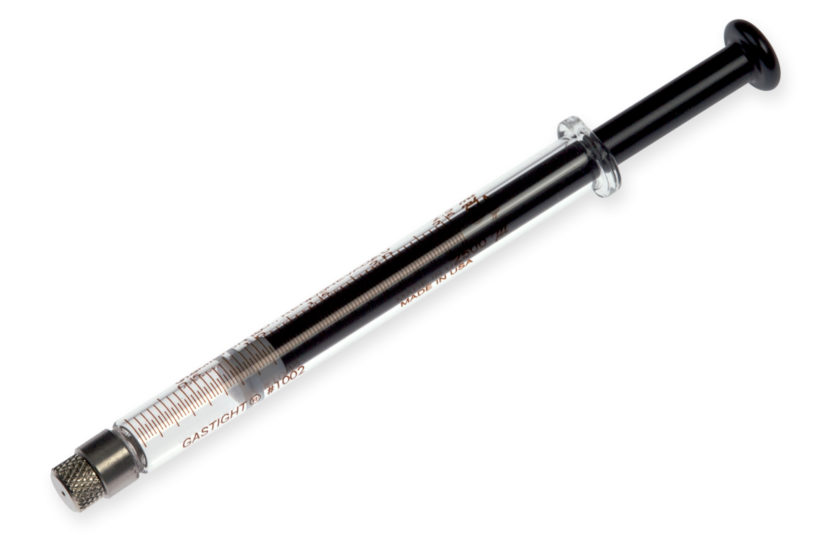

2.5 mL, Model 1002 RN Syringe, Needle Sold Separately

The Hamilton 1000 series syringes offer a mid-volume Gastight syringe solution with an ideal capacity for dispensing volumes ranging from 100 µL to 100 mL. This syringe series boasts a variety of termination and needle options, providing exceptional versatility and adaptability.


Compatible with Large RN Hub Needles

Check out the Needle Builder

Found in these product categories:

Variants

A Certificate of Calibration is provided with the product and the procedure is performed with an unbroken chain of calibrations traceable to N.I.S.T.
  • $94.00
    (In Stock)
    (In Stock)
    Stock status is updated daily. For real-time status, please contact us.
  • $308.00
    (In Stock)
    (In Stock)
    Stock status is updated daily. For real-time status, please contact us.

Specifications

Volume
Volume
2.5 mL
Syringe Type
Syringe Type
Gastight
Syringe Series
Syringe Series
1000
Termination
Termination
Removable Needle (RN)
Needle
Needle
Large RN
Gauge
Gauge
No Needle Included
Point Style
Point Style
No Needle Included

Additional specifications

Needle Length
Needle Length
No Needle Included
Fluid Path
Fluid Path
Borosilicate glass, PTFE
SST, Borosilicate glass, PTFE
Autoclavable
Autoclavable
Yes
Gas Sterilizable
Gas Sterilizable
Yes
Pressure
Pressure
200 psig (13.8 bar)
Maximum Temperature
Maximum Temperature
80°C / 176°F
Minimum Temperature
Minimum Temperature
10°C / 50°F
Barrel Inner Diameter
Barrel Inner Diameter
0.287 inches (7.29 mm)
Barrel Outer Diameter
Barrel Outer Diameter
0.407 inches (10.3 mm)
Std Needle Dead Volume
Std Needle Dead Volume
N/A
Sales Quantity
Sales Quantity
1 syringe per pack
