|Termination||Removable Needle (RN)|
|Gauge||No Needle Included|
|Point Style||No Needle Included|
|Needle Length||No Needle Included|
|Fluid Path||SST, borosilicate glass|
|Pressure||2000 psig (137.9 bar)|
|Maximum Temperature||115°C / 239°F|
|Minimum Temperature||10°C / 50°F|
|Barrel Inner Diameter||0.0189 inches (0.480 mm)|
|Barrel Outer Diameter||0.260 inches (6.60 mm)|
|Std Needle Dead Volume||N/A|
|Sales Quantity||1 syringe per pack|

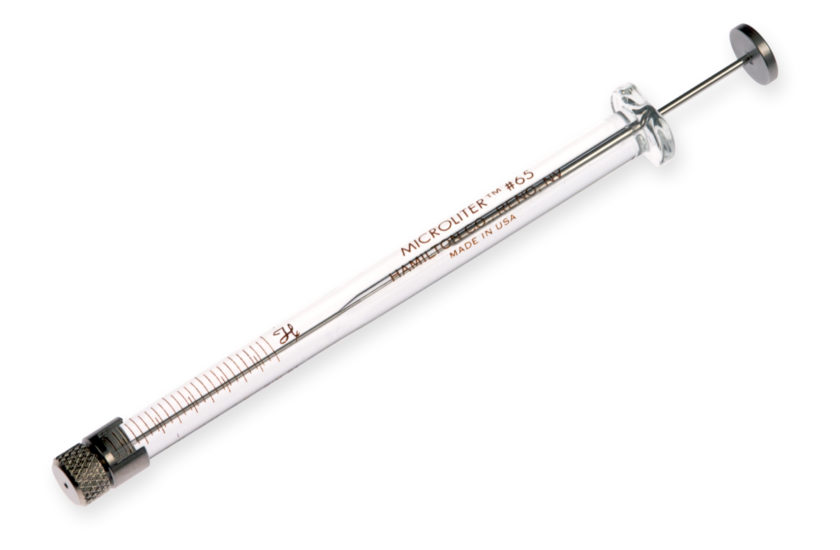

Specification Sheet5 µL Microliter Syringe Model 65 RN, Small Removable Needle, Needle Sold Separately
Instructions - Microliter SyringesGet the basic information on proper use of syringes, cleaning, and specifications for temperature and pressure.
Instructions - Syringe CalibrationLearn about how Hamilton handles calibration of syringes via a gravimetric measurement.
Needle Point Style GuideHamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
Needle Gauge IndexIn addition to being inert stainless steel, lab needles require proper sizing in order to function properly. The diameter of a needle is defined by its gauge. In addition to being inert stainless steel, lab needles require proper sizing in order to function properly. Hamilton company offers a wide spectrum of gauges. This index displays the internal and outer dimensions as well as the dead volume.
Work with R&D engineers to customize Hamilton parts
Hamilton's "Custom Built" program puts you directly in contact with a Hamilton R&D Engineer to discuss your application and product needs. The engineer will point you to a standard solution or propose a customized solution to meet your needs.Talk to an engineer
