Ensure accurate conductivity measurements in your piping systems with this FDA-approved PEEK flow-through cell, specifically designed to facilitate the insertion of the Conducell 4US-T150-50 sensor and eliminate interference from electronic fields in metal pipes.

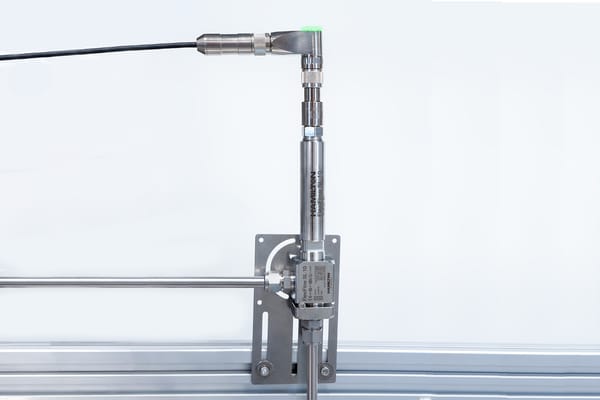

FlexiFlow SL 10

Achieve reliable pH and oxygen measurements in challenging ion-weak media with the FlexiFlow flow-through cell, featuring a compact and self-draining design for easy integration into systems.

Wetted Parts PEEK (Polyetheretherketone)
(FDA 21 CFR 177.2415; EU 1935/2004, EU 10/2011; USP <88> Class VI - 121 °C)

Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
See compliance details in Material Specification document

For Sensors with Triclamp 1.5"

For Sensors with 120 mm, 12 mm, PG13,5

Dimensions (W x D x H) 100 x 60 x 70 mm

Dimensions (W x D x H) —

Process Connection Triclamp 1.5"

Process Connection Swagelok 10 mm

Max. Diameter 70 mm

Max. Diameter 65 mm

Max. Total Length 100 mm

Max. Total Length 175 mm

Min. Total Length 100 mm

Min. Total Length 175 mm

Serial Number No

Serial Number Yes

Certificate No

Certificate Yes, 3.1 certificate with heat number

ATEX Approval No

ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db

Diameter 35 mm

Diameter 65 mm

Autoclavable Yes

Autoclavable No

CIP Yes

CIP No

Operating Temperature Range -10 to 140 °C

Operating Temperature Range -10 °C to 130 °C

Max. Pressure bar g 3 bar

Max. Pressure bar g 16 bar

Product Family FlowCell

O-ring Material —

O-ring Material EPDM
See compliance details in Material Specification document

Internal Volume —

Internal Volume Approx. 5.5 mL

Mounting —

Mounting Bottom Screw Mount (4 pcs)

Weight —

Weight 1200 g

IECEx Approval —

IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db

EAC Ex Approval —

EAC Ex Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db

UKEx Approval —

UKEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db

Steam Sterilizable —

Steam Sterilizable Yes
