Compare Products
Arc Modbus Profinet Converter
The Arc Modbus Profinet Converter is a 24VDC DIN rail mounted device that can be used with up to four Arc sensors and converts their Modbus output to Profinet.
Arc Modbus OPC Converter
The Arc Modbus OPC UA Converter seamlessly transforms Modbus protocol to OPC UA, supporting all Arc parameters.

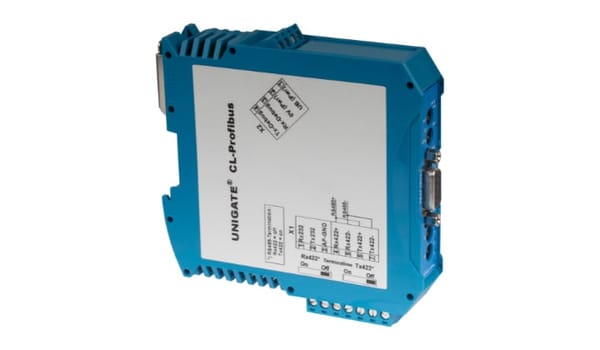

Arc Modbus Profibus Converter
The Arc Modbus to Profibus Converter is a 24VDC DIN rail-mounted device that supplies power to up to four Arc sensors and translates their Modbus signals into Profibus DP communication.
Arc Modbus FOUNDATION Fieldbus Converter
The Arc Modbus to FOUNDATION Fieldbus Converter facilitates seamless communication and data transfer between Arc sensors and process systems that operate using the FOUNDATION Fieldbus protocol.
Housing Material
Polyamid
Housing Material
Aluminium, powder-coated
Housing Material
Polyamid
Housing Material
—
Measuring Channels
4
Measuring Channels
—
Measuring Channels
4
Measuring Channels
4
Dimensions (W x D x H)
23 x 115 x 111 mm
Dimensions (W x D x H)
11 x 8.3 x 6.6 cm
Dimensions (W x D x H)
23 x 115 x 111 mm
Dimensions (W x D x H)
99 x 22.5 x 114.5 mm
Sensor Compatibility
pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
Sensor Compatibility
pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
Sensor Compatibility
pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
Sensor Compatibility
pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
Digital Interface
Profinet
Digital Interface
Ethernet connection with RJ45 (OPC UA)
MicroSD card
MicroSD card
Digital Interface
Profibus DP
Digital Interface
FOUNDATION Fieldbus H1
Operating Voltage
10 to 33 VDC
Operating Voltage
12 VDC
Operating Voltage
10 to 33 VDC
Operating Voltage
9 - 32 VDC, 13.8 mA Current Consumption
Operating Temperature Range
-40 to 85 °C
Operating Temperature Range
0 to 45 °C
Operating Temperature Range
-40 to 85 °C
Operating Temperature Range
-40 to +80°C, -40 to +185 ° F
Protection Rating
IP20
Protection Rating
IP30
Protection Rating
IP20
Protection Rating
—
Power Supply
—
Power Supply
12VDC, 3A
Power Supply
—
Power Supply
—
Operating Humidity
—
Operating Humidity
5 to 95 %
Operating Humidity
—
Operating Humidity
—
Sensor Connectors
—
Sensor Connectors
4, M8 4 pole (M) Connectors
Sensor Connectors
—
Sensor Connectors
—
Mounting
—
Mounting
—
Mounting
—
Mounting
DIN
