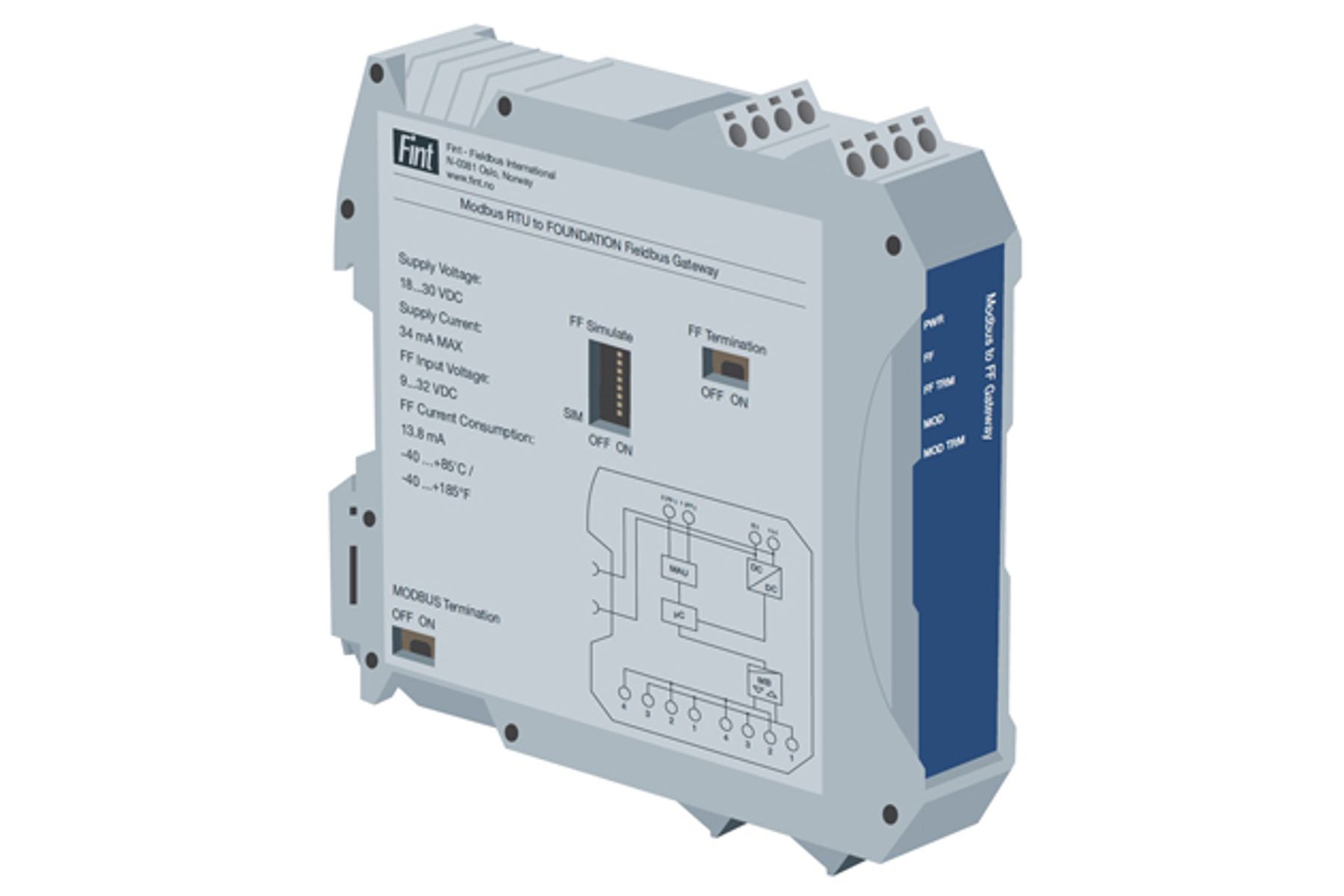

Arc Modbus FOUNDATION Fieldbus Converter

Part # 10164990

The Arc Modbus to FOUNDATION Fieldbus Converter facilitates seamless communication and data transfer between Arc sensors and process systems that operate using the FOUNDATION Fieldbus protocol.

Receive More Information

Minimum: 1, Maximum: 1000

Arc Modbus FOUNDATION Fieldbus Converter Details

The Arc Modbus FOUNDATION Fieldbus Converter is designed to enable communication and data exchange between Arc sensors and process systems that use the FOUNDATION Fieldbus communication protocol. It enhances the connectivity of components within a process.

Enhances the connectivity and interoperability of components within a process or control system.

Direct communication removes the cost and time for intermediate devices or extensive programming.

Enhanced system compatibility with Hamilton sensors for maximum reliability of sensor data.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Arc Modbus FOUNDATION Fieldbus Converter Specifications

Print
Measuring Channels 4
Dimensions (W x D x H) 99 x 22.5 x 114.5 mm
Sensor Compatibility pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
Mounting DIN
Digital Interface FOUNDATION Fieldbus H1
Operating Voltage 9 - 32 VDC, 13.8 mA Current Consumption
Operating Temperature Range -40 to +80°C, -40 to +185 ° F

Arc Modbus FOUNDATION Fieldbus Converter Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton Arc Air manual

Article

ArcAir 3.11 Downloads

Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Arc Sensors - Signal Averaging

Certain applications may introduce conditions that create fluctuating or "noisy" measurements. The noisy measurement can make process control challenging. One way to improve signal stability is to adjust the moving average setting using ArcAir software.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Modbus Communication Basics for Arc Intelligent Sensors

This simple primer article discusses the basic setup of Modbus for Arc intelligent sensors and VisiFerm ECS DO sensors.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How do I communicate with an Arc sensor?

Arc sensors have a built-in micro-transmitter within the sensor. ArcAir software is a powerful tool to access data, configure and calibrate the sensor. This can be done with Bluetooth wireless communication or with a wired connection directly to a PC.
