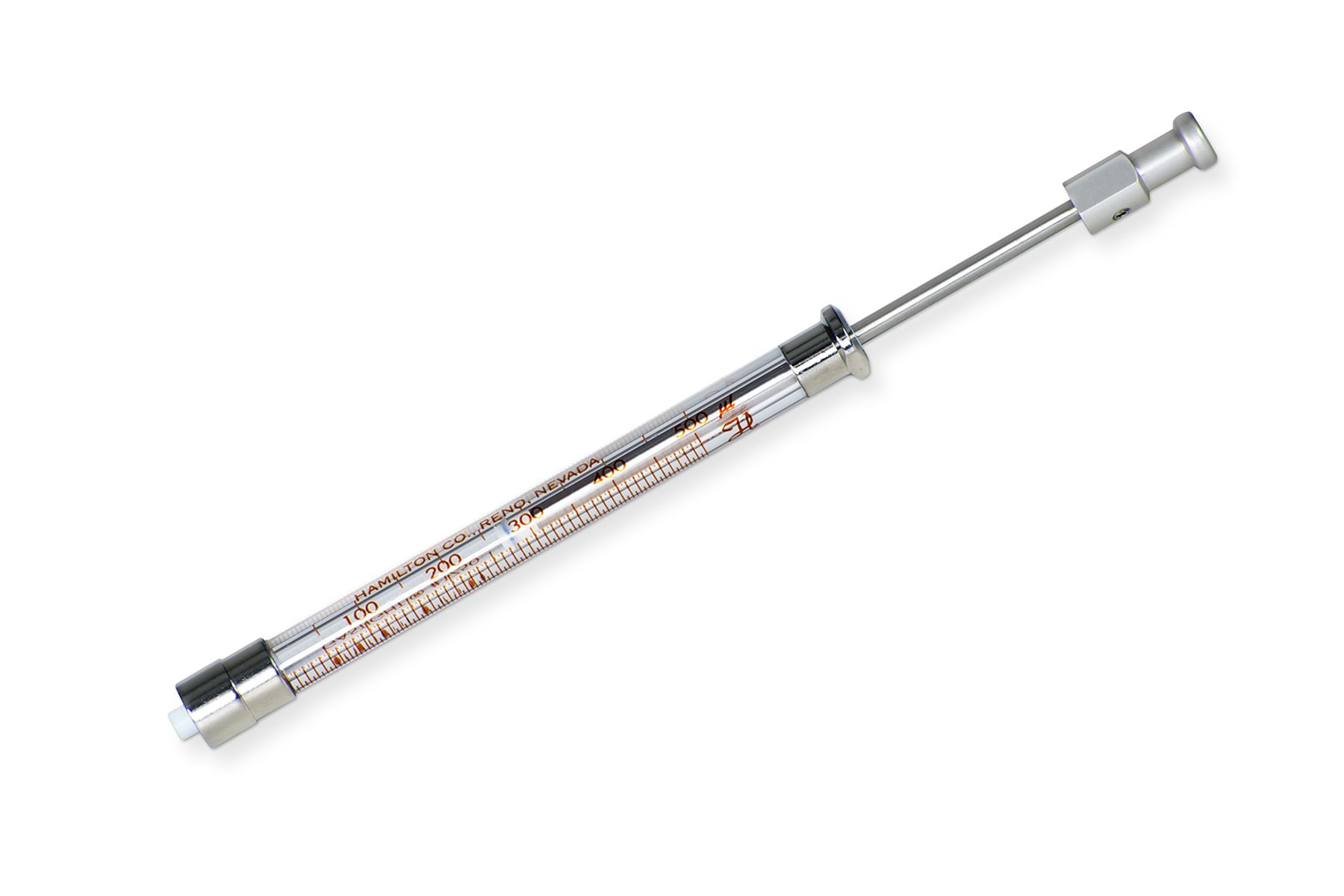

500 µL, Long-Life Gastight Syringe, PTFE Luer Lock (TLL), PN: 8300-30

No Needle Available

Part # 8300-30

This 1700 series Gastight #1750 syringe is designed for heterogeneous, volatile, and viscous samples. Their polymer tip ensures a leak-free seal. The 500 µL syringe (PN: 8300-30) is manufactured with high-quality, chemically resistant materials.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

500 µL, Long-Life Gastight Syringe, PTFE Luer Lock (TLL), PN: 8300-30 Details

Hamilton's 1700 series, Long-life Gastight #1750 PTFE Luer Lock (TLL) Syringes with X-Style plunger is designed for durability and precision. Featuring a plunger tip made from Ultra High Molecular Weight Polyethylene (UHMWPE), this syringe offers superior resistance to abrasion. It is specifically developed to withstand extreme and harsh conditions, ensuring reliable performance in demanding environments. Compatible with Hamilton's PSD/ 6 Syringe Pumps.

Longlife Polymeric Plunger Tip

  • Crafted from Ultra High Molecular Weight Polyethylene (UHMWPE) for exceptional abrasion resistance.
  • Engineered to endure extreme and harsh conditions.

X-Style Plungers

  • The plunger button features a 6-32 threaded hole, commonly used for mounting the syringe into a syringe pump.
  • Syringes with X-Style Plunger Buttons can also be used manually.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

500 µL, Long-Life Gastight Syringe, PTFE Luer Lock (TLL), PN: 8300-30 Specifications

Print
Volume 500 µL
Syringe Type Long-Life Gastight
Syringe Series 1700
Termination PTFE Luer Lock (TLL)
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE, UHMWPE
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.128 inches (3.26 mm)
Barrel Outer Diameter 0.305 inches (7.75 mm)
Sales Quantity 1 syringe per pack
Syringe Model Number 1750

500 µL, Long-Life Gastight Syringe, PTFE Luer Lock (TLL), PN: 8300-30 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Instructions Bubble Free Prime Syringes

Instruction

Instructions - Bubble-Free Prime Syringes

The BFP syringe manufactured by Hamilton Company is intended for scientific research and laboratory use only and is not intended for human in vivo use. These instructions outline installation of syringes into new and existing valves.
HAM Spec Sheet PSD6 OEM

Specification Sheet

PSD/6 Specification Sheet

Discover the specifications of the PSD/6 full-height syringe pump, designed for precise dispensing of volumes up to 50 mL. Ideal for demanding applications requiring long dispense times and versatile configurations.
HAM Instructions Gastight Syringes

Instruction

Instructions - Gastight Syringes

Get instructions for Hamilton Gastight® Instrument Syringes—precision liquid measuring devices built for longevity and accuracy. Learn how to insert, clean, and maintain your syringe for optimal performance.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?

Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
