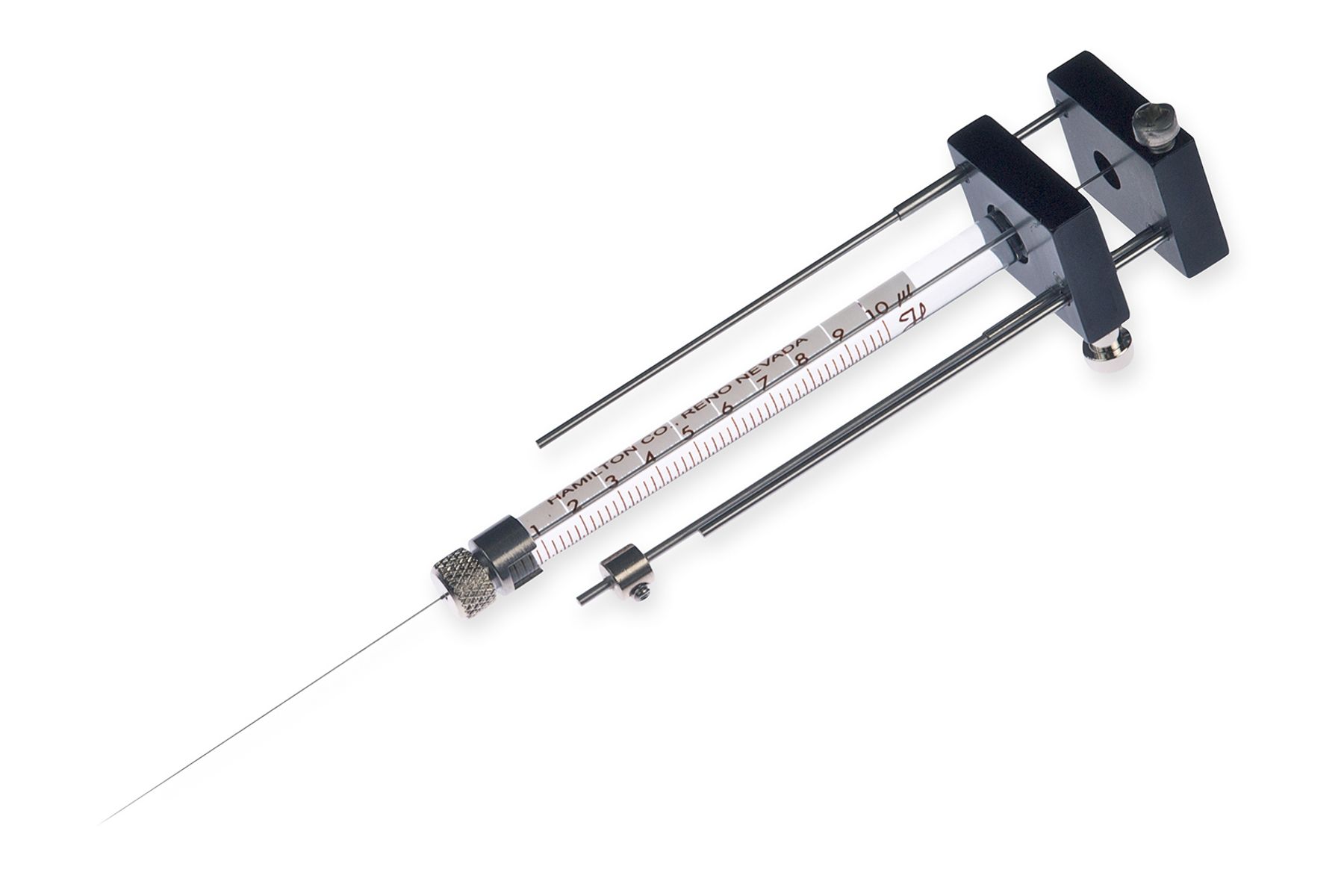

10 µL, Microliter Syringe, Removable Needle (RN), PN: 80334

26s gauge, 2 inch (51 mm), Point Style 2: Curved, Beveled

Part # 80334

This 700 series Microliter #701 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This syringe (PN: 80334) is made from high-quality and chemically resistant materials. Compatible with Small Hub RN needles.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Quantity: 1| Print

10 µL, Microliter Syringe, Removable Needle (RN), PN: 80334 Details

Hamilton's 700 series, Microliter # 701 Removable Needle (RN) Syringe with a built-in Chaney Adapter assures repetitive and identical syringe plunger location, eliminating subjectivity when setting a syringe plunger at a specific volume. This 700 series syringe features a stainless-steel plunger crafted to fit the glass barrel, offering a velvet feel with a tolerance of less than three-thousandths of a millimeter. These syringes are manufactured from high-quality, chemically resistant materials and ensure dimensional accuracy, optimal needle length with superior durability, and accuracy within 1%.

Common applications Veterinary Sciences

Chaney Adapter

  • Ensures reproducible and identical plunger positioning on the syringe.
  • Features an adjustable stop for precise and repeatable fill volume setting.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

10 µL, Microliter Syringe, Removable Needle (RN), PN: 80334 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Removable Needle (RN)
Needle Small RN
Gauge 26s gauge
Point Style 2: Curved, Beveled
Needle Length 2 inch (51 mm)
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.005 inches (0.13 mm)
Needle Outer Diameter 0.0187 inches (0.47 mm)
Std Needle Dead Volume 0.64 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 701

10 µL, Microliter Syringe, Removable Needle (RN), PN: 80334 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Instructions Microliter Syringes

Instruction

Instructions - Microliter Syringes

Discover the proper use and care instructions for Hamilton Microliter™ Syringes—precision instruments crafted for accurate low-volume liquid handling. Includes best practices for handling, cleaning, and prolonging syringe life.
HAM Instructions Syringe Calibration

Instruction

Instructions - Syringe Calibration

Learn about Hamilton’s precise syringe calibration procedure using gravimetric measurements. Follow our standardized method to ensure syringe accuracy and reliability.
HAM Instructions Built in Chaney Adapter

Instruction

Instructions - Built-in Chaney Adapter

Download the instruction sheet for Hamilton Syringes with Built-in Chaney Adapters to ensure accurate and repeatable fluid measurements with minimal user error.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
800series MICROLITER Syringes

Article

Microliter Syringe Operating Parameters

Explore detailed operating parameters of microliter syringes to ensure precise liquid handling and enhance your lab performance with Hamilton’s expert guidance.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
