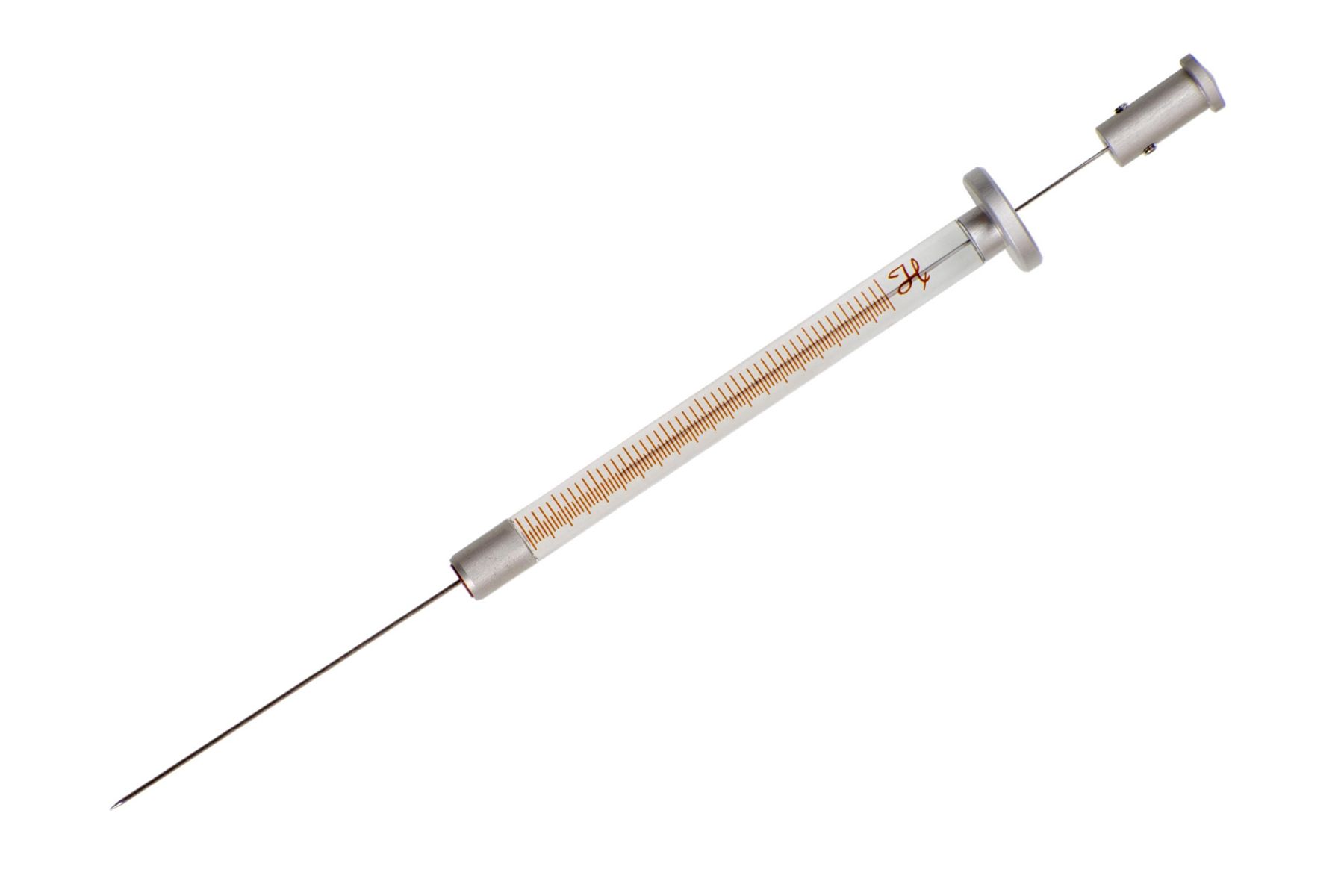

10 µL, Microliter Autosampler CTC Syringe (6.6 mm), PN: 203363

Special Fixed Needle 23s gauge, 2 in, (50.8 mm), curved, beveled

Part # 203363

This 700 series #701 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This 10 µL syringe (PN: 203363) is made from high-quality and chemically resistant materials. View Compatible Autosamplers

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Quantity: 1| Print

10 µL, Microliter Autosampler CTC Syringe (6.6 mm), PN: 203363 Details

Hamilton's 700 series, Microliter #701 Fixed Needle (N) Syringe is designed for use with CTC/LEAP PAL GC autosamplers.

C-Line syringes incorporate several unique design features that ensure superior performance. The unique flange alignment design aids in installation and results in fewer bent needles while the plunger button can be adjusted to prevent plunger tip damage. An innovative direct attachment design of the needle to the barrel minimizes sample carryover

Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Compatible Autosamplers:

GC C-Line Syringes



Common applications Veterinary Sciences

C-Line Design

  • The unique plunger and flange design ensures reliable installation and alignment of the plunger barrel.
  • The Fixed Needle termination features an improved needle design for zero carryover and enhanced solvent compatibility.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

10 µL, Microliter Autosampler CTC Syringe (6.6 mm), PN: 203363 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Fixed Needle (FN)
Needle Fixed Needle, no glue or cement
Gauge 23s gauge
Point Style 2: Curved, Beveled
Needle Length 2.00 inches (50.8 mm)
Plunger Style X-Style CTC
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 50°C / 122°F
Minimum Operating Temperature 20°C / 68°F
Needle Inner Diameter 0.010 inches (0.25 mm)
Needle Outer Diameter 0.025 inches (0.64 mm)
Std Needle Dead Volume 0.54 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 701

10 µL, Microliter Autosampler CTC Syringe (6.6 mm), PN: 203363 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Data Sheet CTC Combi PAL GC Autosampler Syringes

Datasheet

Datasheet - CTC Combi PAL GC Autosampler Syringes

Access the datasheet for Hamilton’s S-Line and C-Line syringes, designed for use with CTC PAL GC and Combi PAL autosamplers. Engineered for high-speed injections, solvent compatibility, and reduced installation errors.
HAM Instructions Microliter Syringes

Instruction

Instructions - Microliter Syringes

Discover the proper use and care instructions for Hamilton Microliter™ Syringes—precision instruments crafted for accurate low-volume liquid handling. Includes best practices for handling, cleaning, and prolonging syringe life.
HAM Instructions Syringe Calibration

Instruction

Instructions - Syringe Calibration

Learn about Hamilton’s precise syringe calibration procedure using gravimetric measurements. Follow our standardized method to ensure syringe accuracy and reliability.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1700 Series

Article

Find Your Syringe

Not sure which syringe you’re using? Follow these simple steps to identify your Hamilton syringe and locate the correct part number based on model, volume, and termination style.
800series MICROLITER Syringes

Article

Microliter Syringe Operating Parameters

Explore detailed operating parameters of microliter syringes to ensure precise liquid handling and enhance your lab performance with Hamilton’s expert guidance.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
