Single Pore Glass

Part # 238160

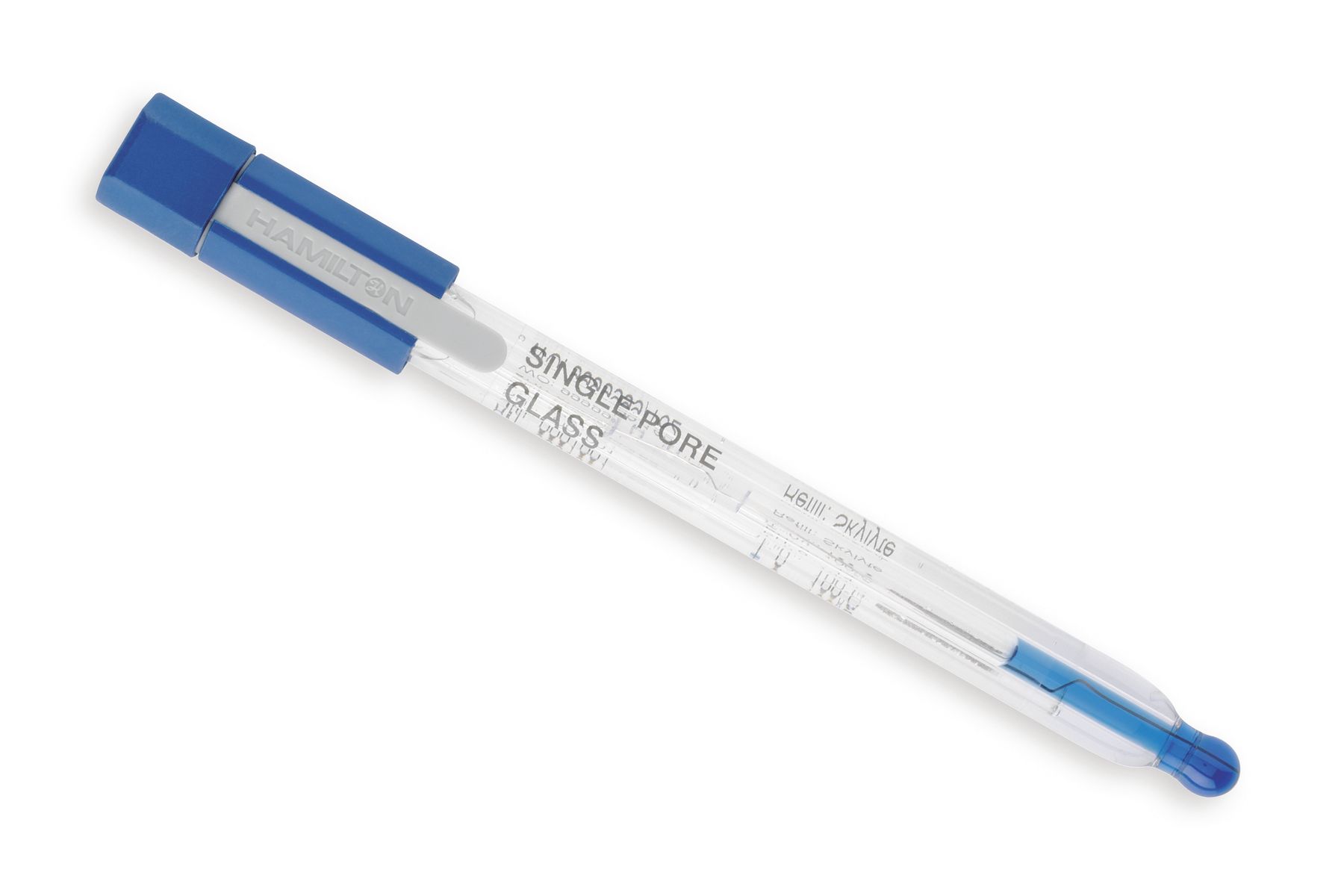

Hamilton’s Single Pore Glass Lab pH Sensor provides reliable pH monitoring with fast stabilization and exceptional accuracy. Its patented single pore technology prevents contamination and electrode clogging during pH measurements.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Single Pore Glass Details

The Single Pore Glass pH Sensor delivers high-precision pH measurement with a fast stabilization and response time, making it ideal for any laboratory application. Unlike traditional pH sensors, its patented single pore, clog-resistant design prevents contamination and electrode clogging to ensure  long-lasting performance and stable pH measurements with low drift, even in harsh environments. Designed to enable effortless  operation, the  glass pH electrode reduces maintenance time and effort so that you can maintain superior pH monitoring and overall laboratory efficiency. As reported by PTB, it stands out as the most accurate laboratory electrode tested.

Common applications Chemical Processes

Patented design prevents fouling for low-maintenance while extending the service life of the pH sensor.

Accurate real-time pH monitoring through rapid stabilization and response time.

 Excels with aggressive chemicals and suspended solid solutions.

Low-maintenance pH Monitoring

  • No frequent cleaning needed, even when monitoring pH levels in emulsions and suspension or high-viscosity samples.
  • Smooth, small pore design prevents contaminant buildup.

Patented Single Pore Design

  • Single pore junction prevents contamination and electrode clogging or fouling.
  • Optimized contact between electrolyte and sample for reliable and fast pH measurements.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Single Pore Glass Specifications

Print
Sensor Family Single Pore Glass
Wetted Parts GΙass
Ceramic
pH Glass Hamilton Type H Glass
Electrical Connector S7
a-length 120 mm
Parameter pH
Measuring Range pH 0 to 14
Electrolyte Skylyte-CL
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Single Pore
Number of Diaphragms 1
Reference System Hamilton Everef
Temperature Sensor No
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
Diameter 12 mm
Operating Temperature Range 0 to 100 °C
Pressure Range bar g Atmospheric pressure
