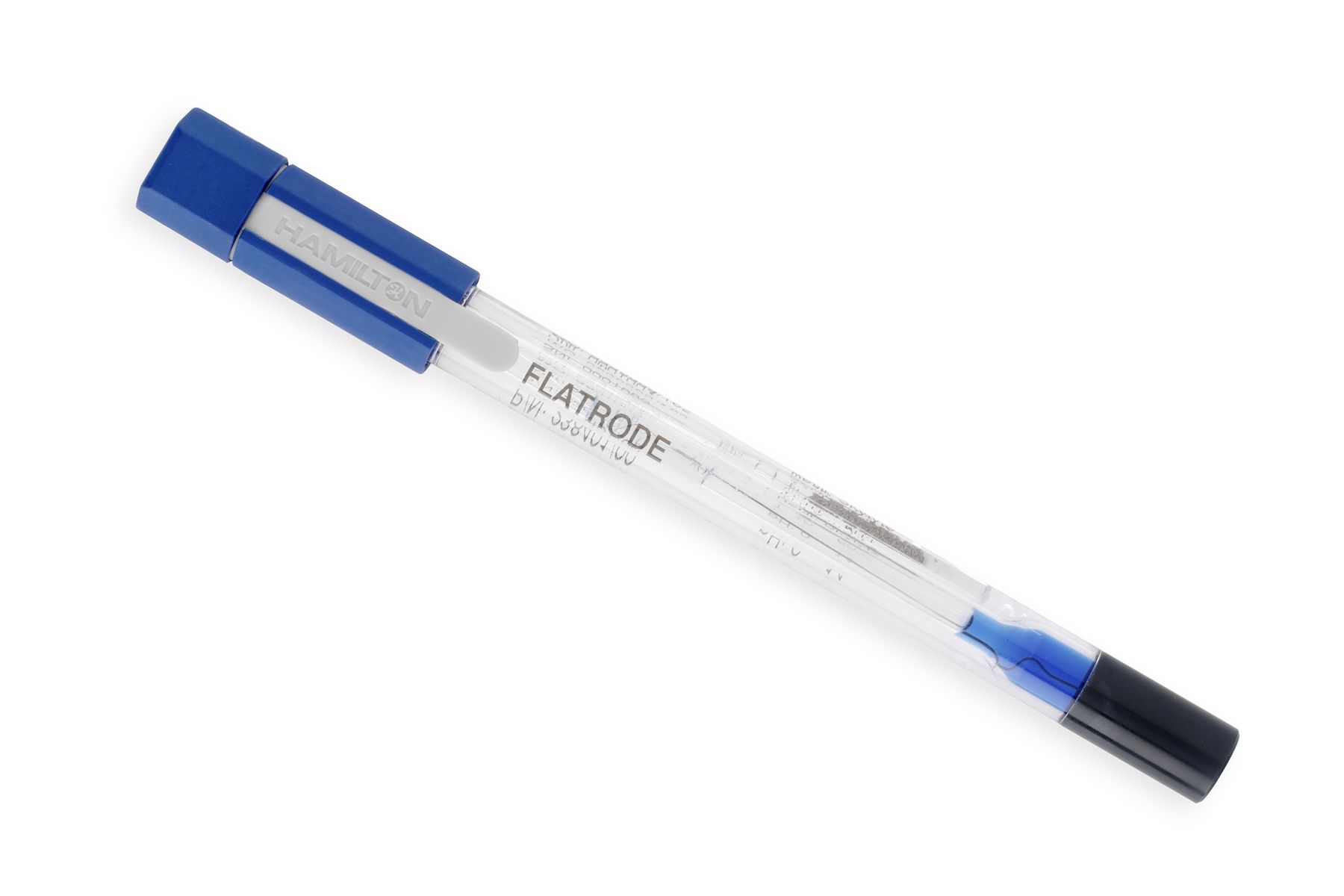

FlaTrode

Part # 238401

The FlaTrode pH Sensor is engineered for fast, accurate pH measurements on paper, agar plates, and many other flat surfaces. Its flat membrane and ring diaphragm junction ensure optimal sample contact for precise pH results.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

FlaTrode Details

The FlaTrode pH Electrode is designed for precise flat surface pH measurements, making it ideal for laboratory applications such as testing paper, agar plates, or other truly flat samples. It features a chemically resistant glass body shielded by a shatter-proof plastic shaft.

This pH probe also includes a Single Pore ring diaphragm to enhance contact between the sample and reference while further resisting corrosion and preventing clogs. This serialized pH probe operates across the full pH range of 0 to 14 with a temperature range of 0 to 60 °C. The Hamilton Everef reference system ensures long-term stability, and the electrode connects via an S7 connector head.

Repeatable, precise pH surface measurements in flat samples

Rapid response time from enhanced contact between sample and reference

Long, reliable pH sensor performance supported by durable materials

Specialty Flat Surface pH Measurements

  • True flat membrane with 1 mm immersion depth ensures full sample contact.
  • Single Pore ring diaphragm enhances contact between flat sample and reference electrode.

Durable pH Electrode Construction

  • Glass body is chemically resistant and easy to clean.
  • Plastic SAN sheath protects the glass body from physical damage.
  • Everef reference system and Polisolve polymer reference support long pH electrode life.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

FlaTrode Specifications

Print
Sensor Family FlaTrode
Wetted Parts GΙass
SAN (Polystyrene-Acrylonitrile)
pH Glass Hamilton Type HF Glass
Electrical Connector S7
a-length 120 mm
Parameter pH
Measuring Range pH 0 to 14
Electrolyte Polisolve
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Flat
Diaphragm Single Pore ring
Number of Diaphragms 1
Reference System Hamilton Everef
Temperature Sensor No
Minimum Immersion Depth 1 mm
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
Diameter 12 mm
Operating Temperature Range 0 to 60 °C
Pressure Range bar g Atmospheric pressure
