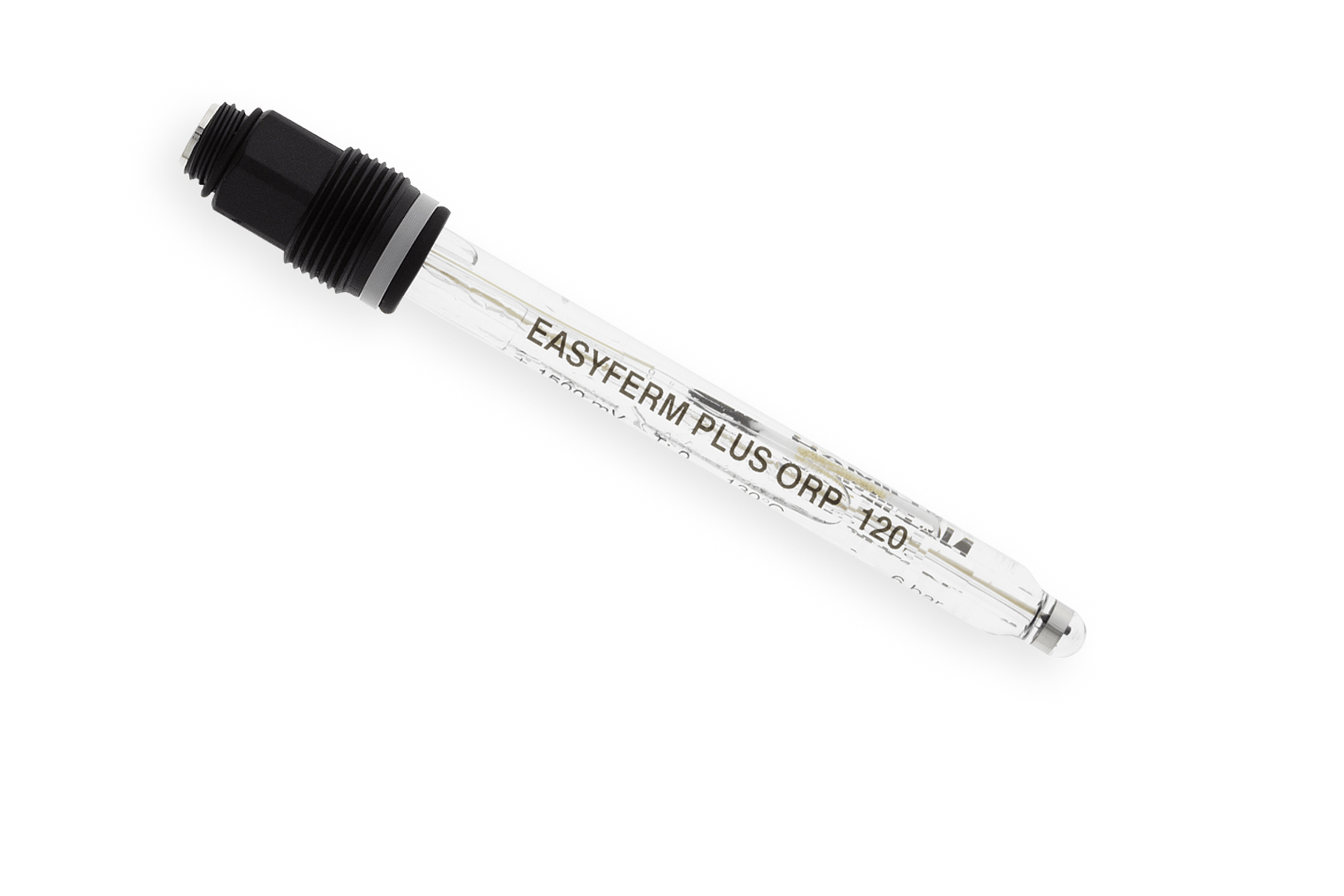

EasyFerm Plus ORP S8

The EasyFerm ORP S8 sensor is a pre-pressurized, fouling-resistant ORP sensor with a self-cleaning platinum electrode for extended life. Its non-clogging diaphragm ensures durability, and it's compatible with CIP, SIP, and autoclaving.

Receive More Information

  • ORP EasyFerm Plus S8

Commonly Grouped Accessories

EasyFerm Plus ORP S8 Details

Traditional EasyFerm ORP sensors are designed for demanding pharmaceutical and chemical applications, with features built in to resist fouling. A pre-pressurized reference electrolyte prevents the diffusion of samples into the sensors. The Everef-F reference design ensures that the Phermlyte electrolyte remains free of silver and precipitation. The HP Coatramic diaphragm is designed to prevent coating and fouling. EasyFerm ORP sensors are compatible with autoclavation, CIP, and SIP.

Common applications Agri-Food and Beverage

Engineered for demanding chemical and pharma use.

Enables almost drift-free measurement.

 Ensures stable measurement signals after sterilization, autoclavation, and CIP.

Robust Design

Designed  to withstand demanding applications in pharmaceutical and chemical industries.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in troubleshooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

EasyFerm Plus ORP S8 Specifications

Print
Measurement Principle Combination electrode; ORP potential measured against reference
Electrical Connector S8
Measuring Range -2000 mV to +2000 mV
Electrolyte Pressurized Phermlyte
ORP Element Pt ring
Membrane Shape Spherical
Diaphragm HP-Coatramic
Number of Diaphragms 1
Reference System Hamilton Everef-F, Silver ion barrier included
Liquid Earth No
Temperature Sensor No
O-ring Material See compliance details in Material Specification document
Wetted Parts GΙass
Platinum
EPDM (Ethylene propylene elastomer)
See compliance details in Material Specification document
Process Connection PG13,5
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured value in ORP buffer +475 mV
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable Yes
Steam Sterilizable Yes
CIP Yes
Operating Temperature Range 0 to 140 °C
Sample min Conductivity 100 µS/cm
Pressure Range bar g 0 to 6 bar

EasyFerm Plus ORP S8 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Bilinear Analog Outputs with Arc Sensors

Bilinear analog (4 to 20mA) outputs are a feature in Arc sensors but are often not well understood. This article provides a brief description of these outputs along with some examples where they can be used.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Warnings and Errors with Arc pH / ORP Sensors

The advanced diagnostics of Hamilton Arc pH / ORP sensors are indicated by warnings and errors. This article dives into the different types of warnings and errors as well as how they are defined.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Firmware Updates for Arc Products

Hamilton Arc and VisiFerm ECS sensors rely upon internal firmware for their operation. Periodic firmware updates ensure that the sensor has the latest features and fixes any pre-existing bugs that may exist.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How do I clean an ORP sensor?

The platinum band around the tip of the ORP sensor can oxidize over time. Light scrubbing with a mild abrasive such as toothpaste will remove the oxidization. Rinse with potable water and store in storage solution prior to usage
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is a pre-pressurized sensor and why would I choose it?

The electrolyte within the sensor is pressurized at the factory. This feature helps prevent against clogging and poisoning of the sensor due to the process liquid. The design is hygienic and well suited for fermentation applications found in biopharma, food, and beverage markets.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is the effect of temperature on ORP?

Temperature compensation is a common requirement for accurate pH measurements, but not generally used for ORP. Why? pH is a measurement of the hydrogen ion concentration by the glass membrane. The voltage output of this glass membrane is temperature dependent, as is the hydrogen ion activity in the liquid. Temperature compensation will correct the pH voltage output back to a standardized 25°C. ORP differs from pH as it is not tied to a specific ion. The effects of temperature can be different depending on oxidizing and reducing substances present in the liquid. Due to this uncertainty, the ORP sensor output is uncompensated millivolts.
