Conducell UPW PG 13,5

Part # 243640

The Conducell UPW sensor provides industry-leading accuracy and sensitivity for producing pure and ultrapure water in the pharmaceutical industry. The sensor is USP 645, EP, JP and FDA compliant.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Conducell UPW PG 13,5 Details

The Conducell UPW sensor provides industry-leading, accuracy and sensitivity for producing pure and ultra-pure water in the pharmaceutical industry.  The sensor is USP 645, EP, JP and FDA compliant, therefore appropriate for Pharmaceutical and pure water treatment applications. The Conducell UPW sensor is suitable for use in hazardous areas and is ATEX and IECEx approved.

Common applications Pharma & Biopharma, Water, Energy, & Environment, Water and Wastewater, Chemical Processes, Small Molecules Pharmaceuticals

Enables exceptional temperature compensation.

Enables exceptional temperature compensation.

Makes seamless integration possible.

USP 645, EP and JP compliance ensures easy cleaning.

Makes Seamless Integration Possible

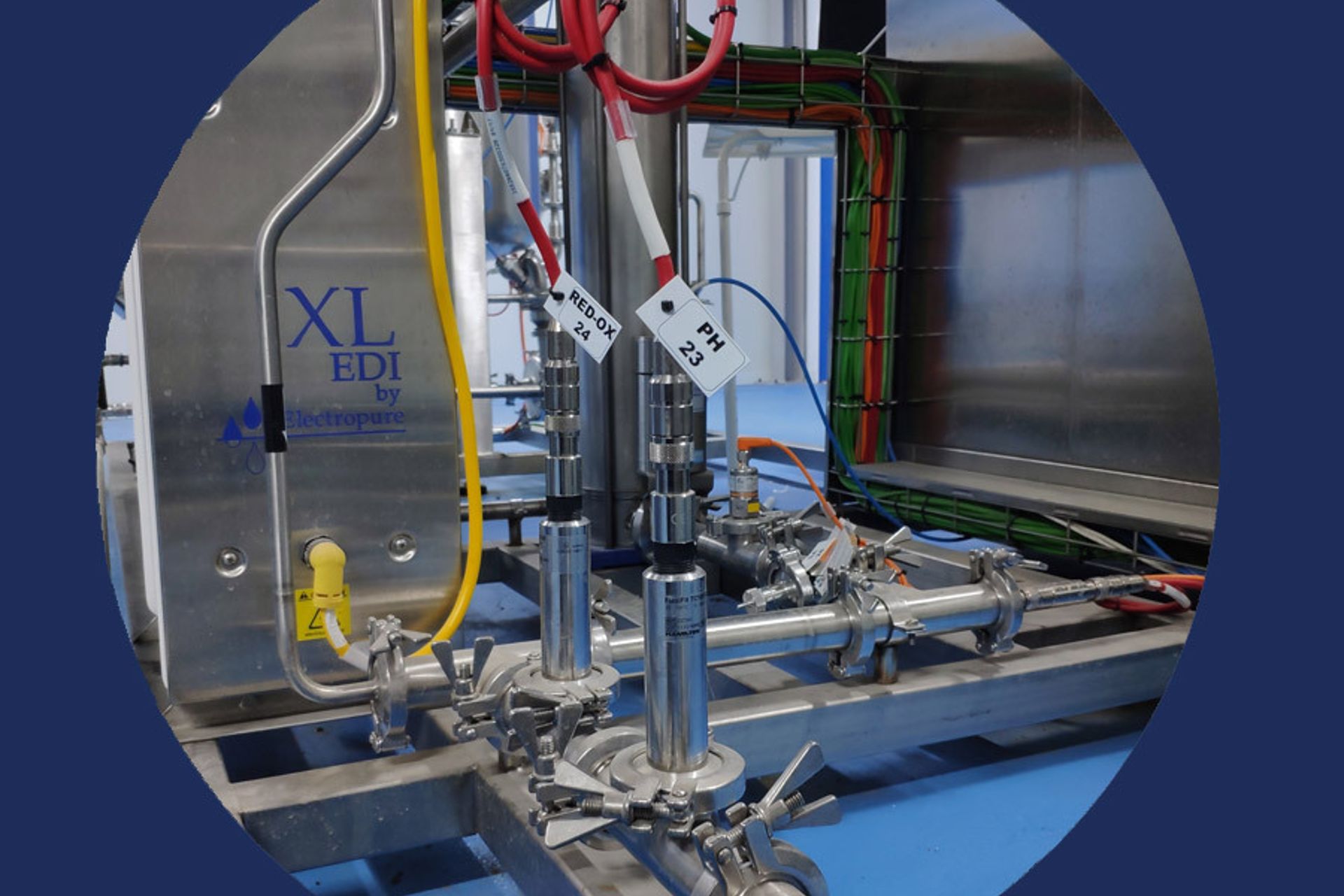

Pure water production
Use case

How It's Used

Arc sensors for conductivity, pH and ORP measurement in pure water treatment

Discover how Conducell UPW enables precise, real-time monitoring in ultrapure water (UPW) systems, critical for pharmaceutical and skid-based installations.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton sensors enhance safety, efficiency, and reliability in chemical processes.

    Hamilton sensors and retractable fittings are not only essential for monitoring and controlling our chemical processes, but also make preventive maintenance and fault diagnosis much easier. The robustness and durability of the products mean fewer emergency call-outs and greater overall plant effectiveness. Overall, the sensors make a significant contribution to the safety, efficiency and reliability of our operating processes and help us to meet and exceed our high standards.

    Dimitri Brumm
    EMR Operating Engineer - Cassella Chemiepark

Conducell UPW PG 13,5 Specifications

Print
Process Connection PG13,5
Sensor Family Conducell UPW
Wetted Parts Stainless Steel 1.4435
PEEK (Polyetheretherketone)
EPDM (Ethylene propylene elastomer)
(FDA 21 CFR 177.2600; EU 1935/2004; USP <88> Class VI - 121 °C)
(FDA 21 CFR 177.2415; EU 1935/2004, EU 10/2011; USP <88> Class VI - 121 °C)
See compliance details in Material Specification document
Electrical Connector VP6
a-length 120 mm
Parameter Conductivity (2-pole)
Sensor Output Traditional
Measuring Range 0.02 to 2000 µS/cm
Cell Constant < 0.1 / cm
Temperature Sensor Pt1000
Surface Quality of Steel Ra < 0.4 µm (N5, electropolished)
Serial Number Yes
Certificate Yes, with nominal and actual cell constant
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
Diameter 12 mm
Autoclavable Yes
Steam Sterilizable Yes
CIP Yes
Operating Temperature Range -10 to 140 °C
Pressure Range bar g 0 to 10 bar g (130 °C)
Max. Pressure bar g 10 bar g (130 °C)

Conducell UPW PG 13,5 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Glossary of Sensor & Biopharma Acronyms & Abbreviations

Acronyms and abbreviations are commonly used with process analytics measurements found in the biopharma industry. This glossary is an attempt to de-code some of the more frequently used acronyms.
Translucent plastic wash bottle with screw cap and dispensing tube, partially filled with clear liquid

Article

Pure Water Conductivity Measurements

Conductivity measurements are very common in pure water. Learn about special considerations for these applications.
Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Arc Sensors - Signal Averaging

Certain applications may introduce conditions that create fluctuating or "noisy" measurements. The noisy measurement can make process control challenging. One way to improve signal stability is to adjust the moving average setting using ArcAir software.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does temperature affect conductivity measurement?

Yes, temperature has a direct impact on conductivity. Increasing temperature increases the mobility of ions within a solution and results in higher conductivity measurements. Temperature compensation can be performed using empirically derived temperature coefficients, which may be different for various solutions.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can Hamilton conductivity sensors be used with my existing transmitter?

In most cases, yes! Transmitters specifically designed for either 2-pole, 4-pole conductivity are generally compatible with Hamilton Conducell products. The transmitter temperature sensor input (PT1000) should be checked to ensure it matches the sensor.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

How much torque is needed to install a sensor with PG13.5 threads?

Sensors with PG13.5 threads rely on the o-ring to seal against process pressure. Finger-tight (approximately 2 Newton Meter or 18 inch-lb) should be sufficient to install the sensor without leakage. Additional tightening beyond this can deform the o-ring or strip the threads.
