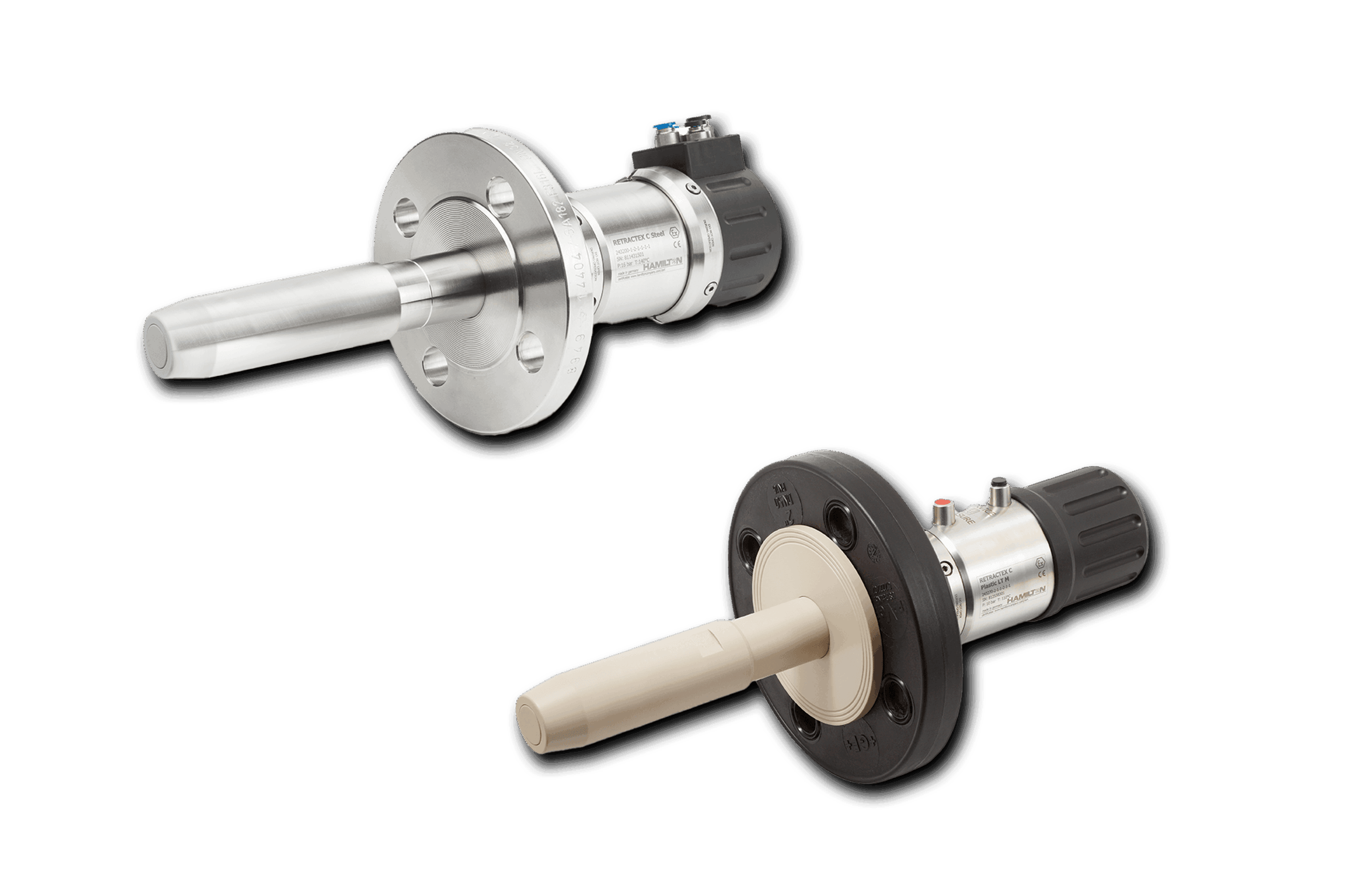

Retractex C LT Retractable Housing for Sensors

Long sensor insertion
207 mm
Minimum seal wear
Pneumatic
Retractable
Manual
Compatible materials
Chemical applications
12 mm sensors

Boosting Efficiency in Your Process

The compact Retractex C LT seamlessly integrates with continuous processes in your chemical or pharmaceutical workflow. Pneumatic or manual retraction facilitates thorough in-place while your processing continues uninterrupted.

Retractex C LT Retractable Housing for Sensors

Ideal for Chemical Processes

The Retractex C LT housing supports process sensing applications in a wide range of chemical applications. This space-saving sensor housing has a 36 mm stroke to conserve seal wearing along with flanged process connections.

This sensor housing is used with our 12 mm diameter sensors for process analytics and offers an insertion depth up to 207 mm.

Easy Cleaning

Once pneumatically or manually retracted, the housing’s sensor can be thoroughly cleaned without disturbing the overall process or risking harm to users.


Stainless steel syringe needle with retractable tip mechanism and O-ring seal at base
Stainless steel syringe needle with retractable tip mechanism and O-ring seal at base

Stainless steel or PVDF and PEEK wetted material options and other sealing materials work with a wide range of chemical solutions.

The Retractex C LT housing retracts so that the sensor and housing surfaces can be fully cleaned and disinfected offline while the process continues to run.

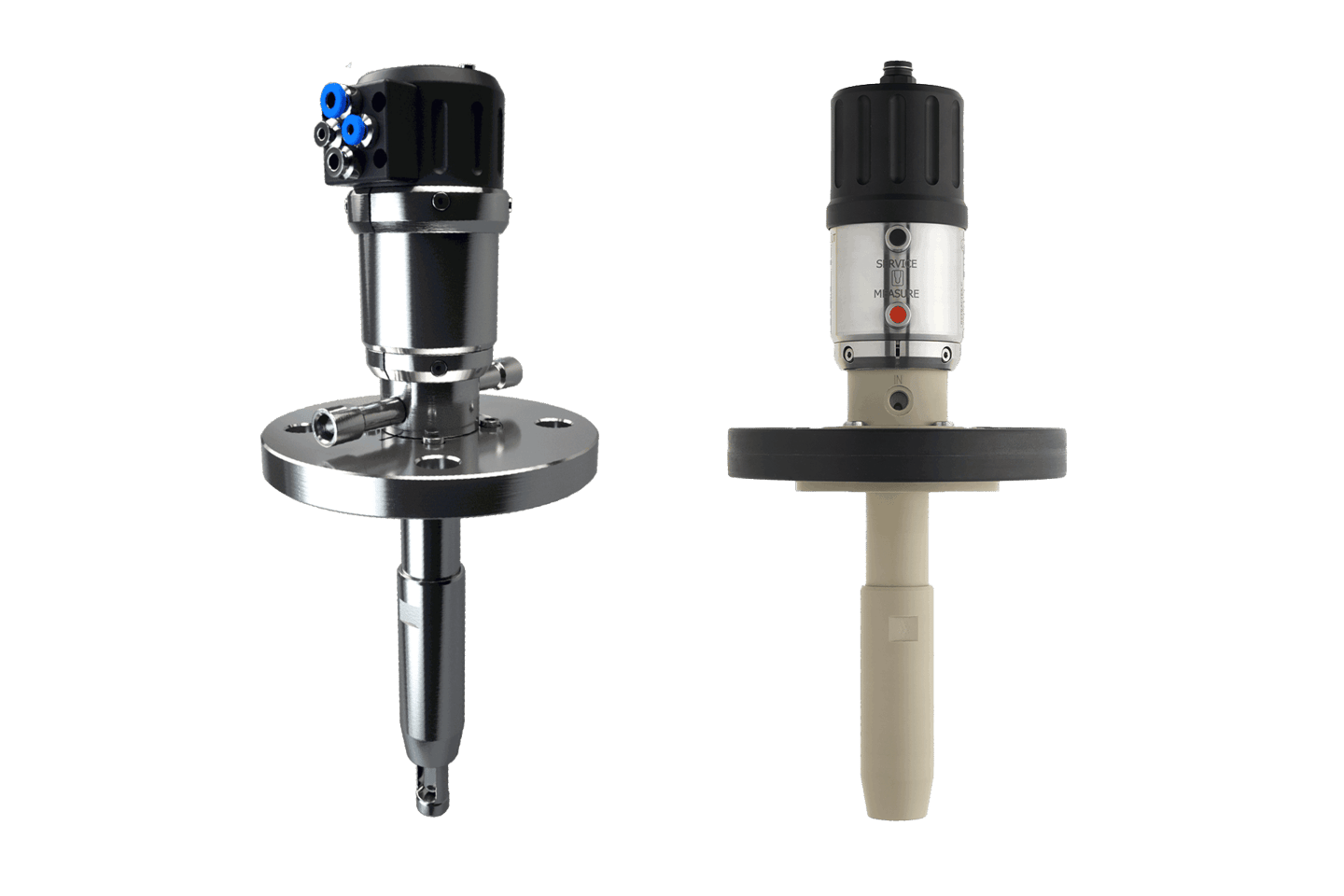

Two inline process sensors with retractable housings: a stainless steel flanged assembly with pneumatic fittings and a beige-bodied sensor with a black mounting disc labeled SERVICE and MEASURE.

Retractec C LT features

1

Steel or Plastic Housing

Housing material choices support chemical compatibility requirements
2

Integration with Sensors

Retractex C LT works with 12 mm diameter Hamilton sensors.
3

Sensor Integration

Retractex C LT may be used with Hamilton’s sensors for process analytics that are 325 mm long and 12 mm in diameter.

4

Retract for Cleaning

Completely clean sensor and housing surfaces while the larger process continues to run
5

Access Ports for Cleaning

Connect with our RetractoControl 2 for automated cleaning, or manually manage it
6

Build-up prevention

A Small PTFE Scraper with an insertion tube O-ring prevents materials from building up in the housing

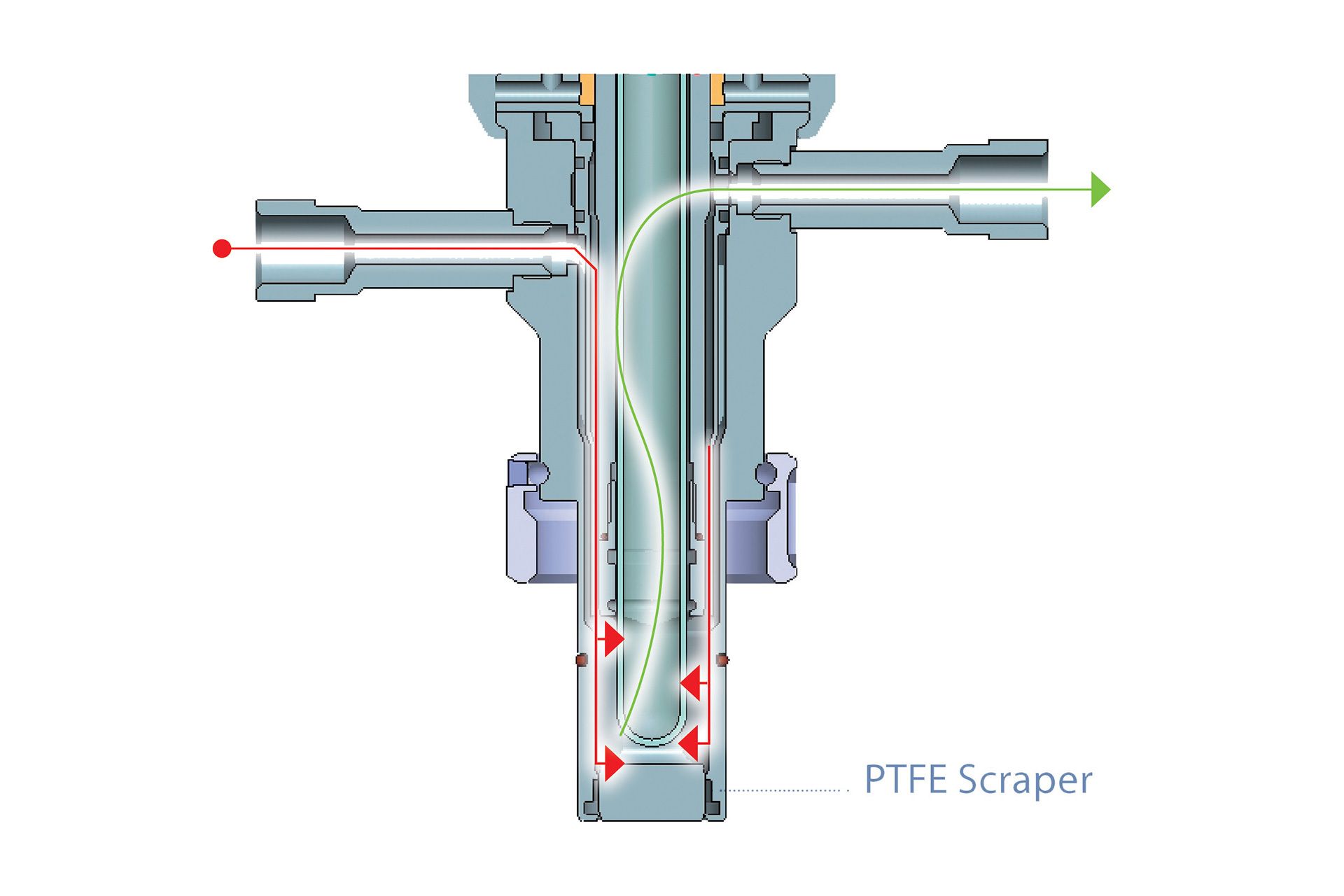

Cross-section diagram of a syringe valve assembly with PTFE scraper, showing fluid flow paths via red and green arrows.

Sensor Cleaning with the Retractex C LT

Once retracted, the sensor can be cleaned while the process is running. Cleaning fluid is connected through external ports where either manual cleaning or automated cleaning with the RetractoControl can occur.

A PTFE scraper with o-ring built into the insertion tube guarantees that process build-up stays outside of the armature and does not harm the internal o-ring seals

Retractex C LT Ordering Information

Retractex C LT Steel

Retractex C LT Plastic

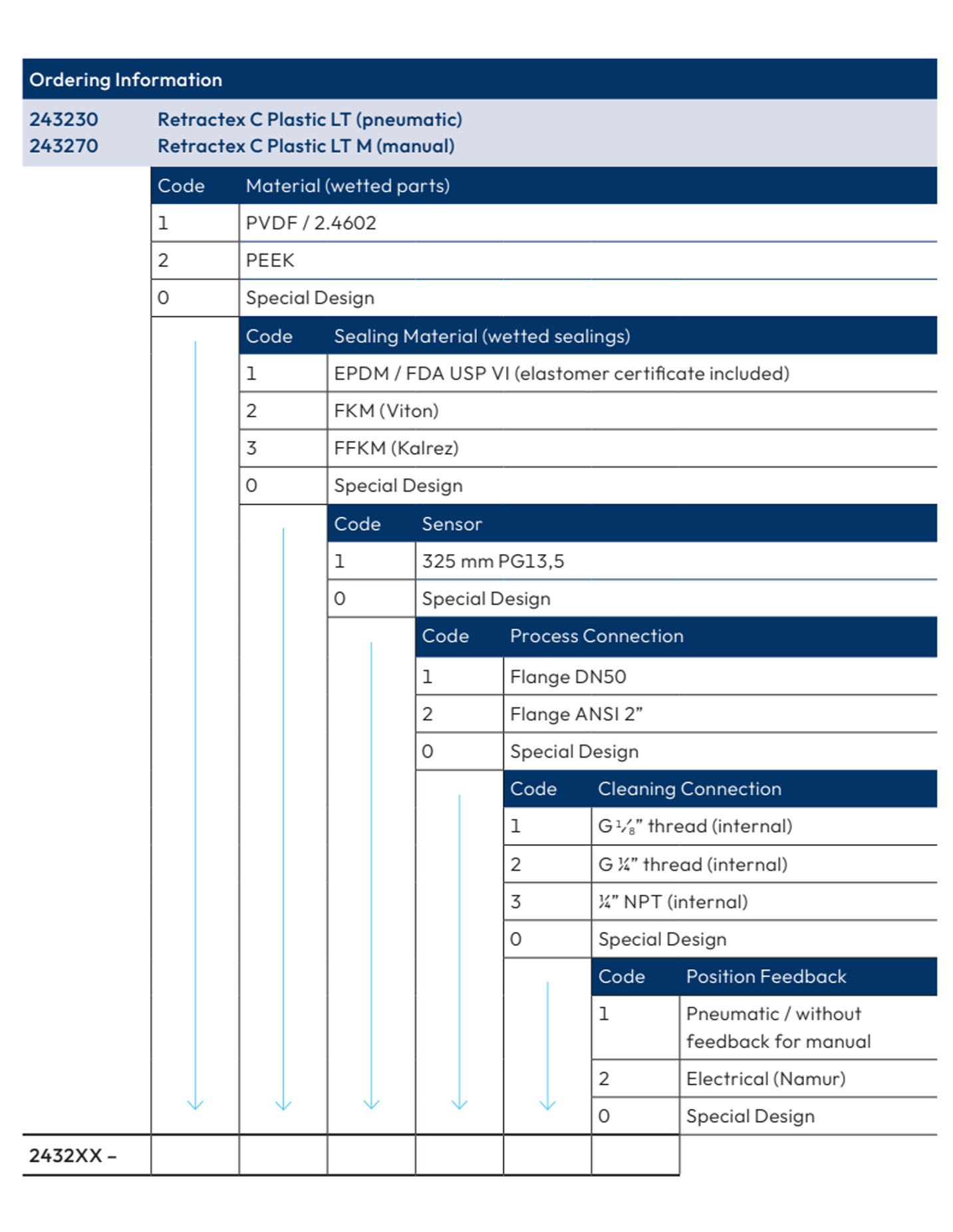

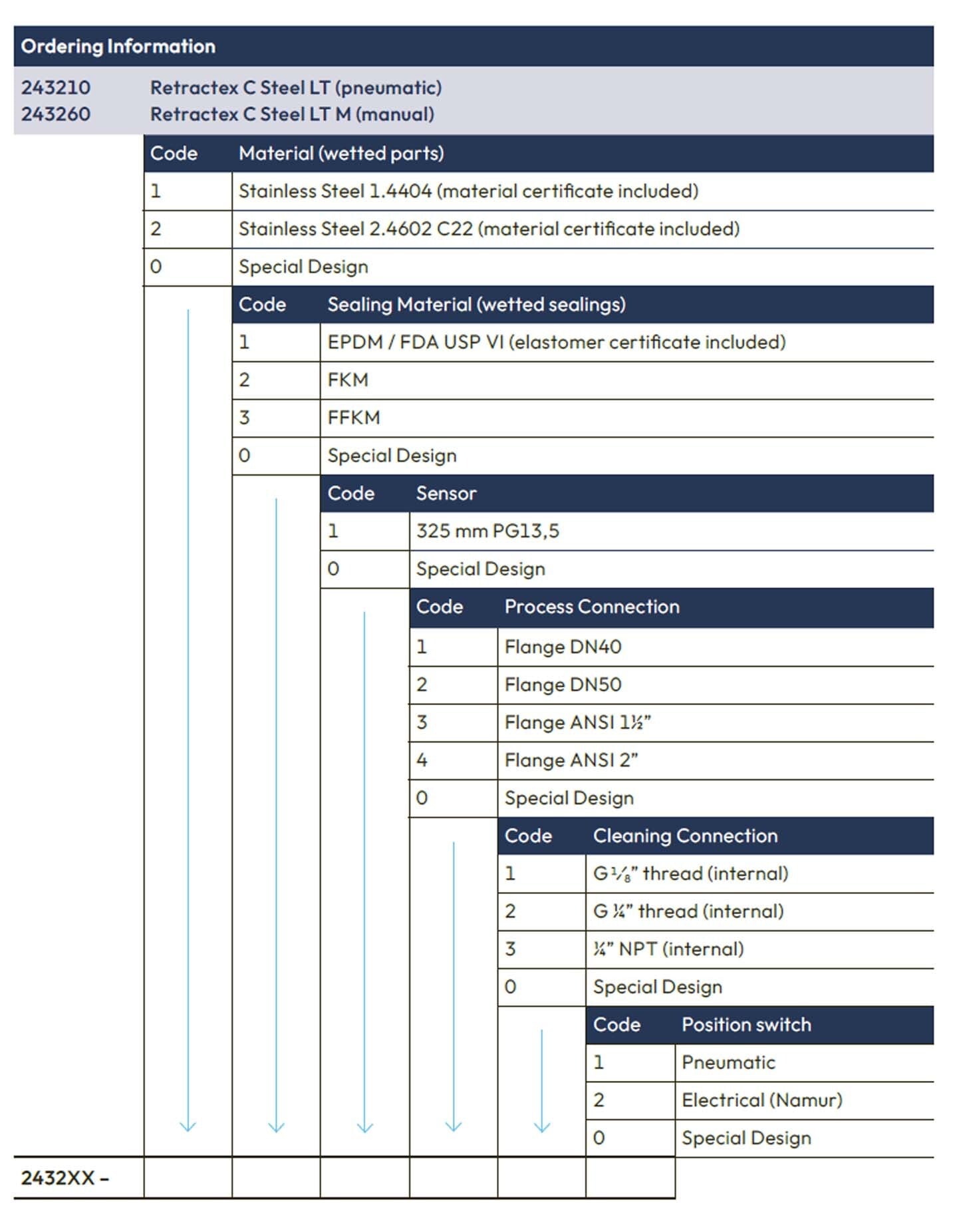

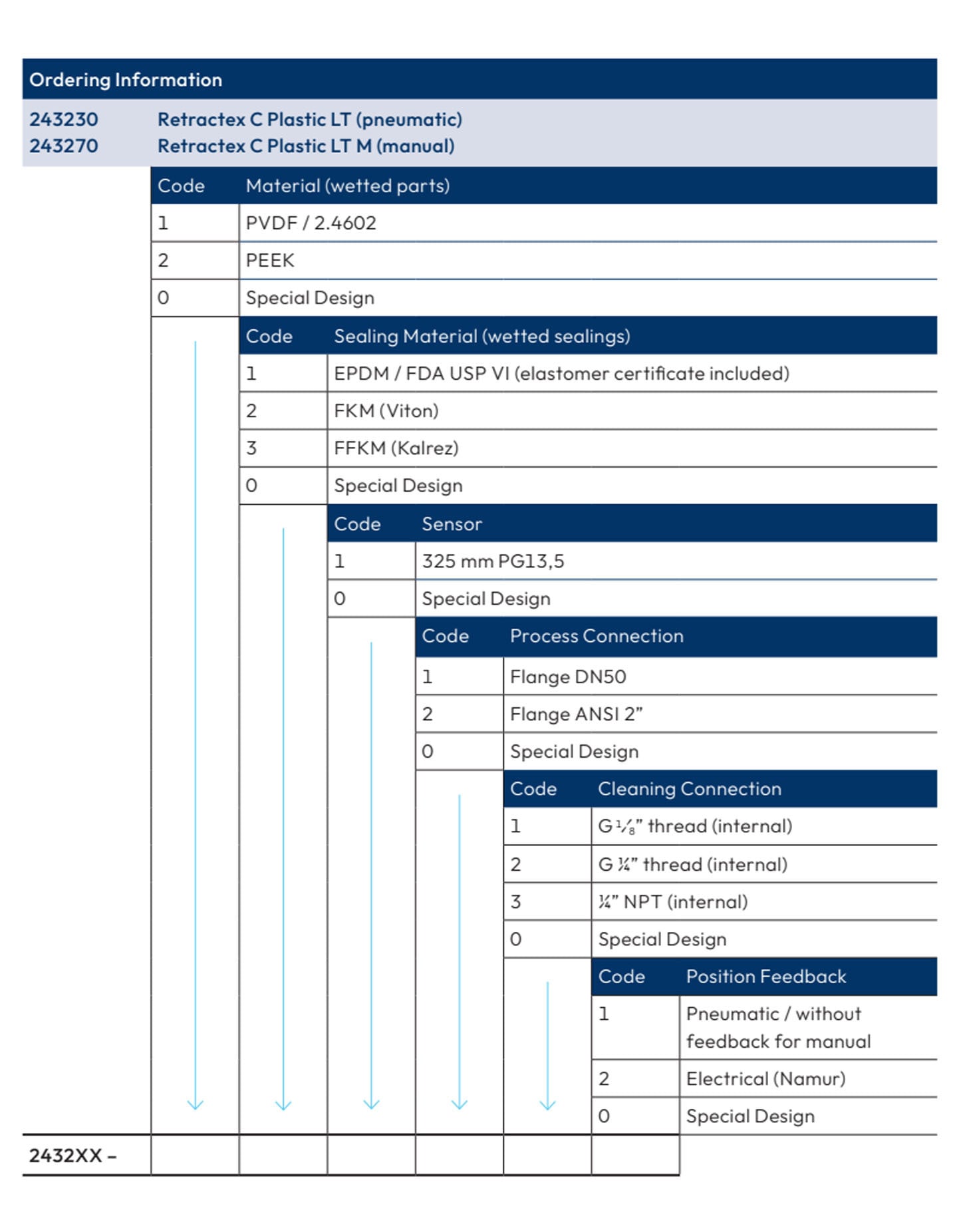

retractex C LT steel ordering informationretractex c lt plastic ordering information
