Largest Capacity, Longest Dispense Time

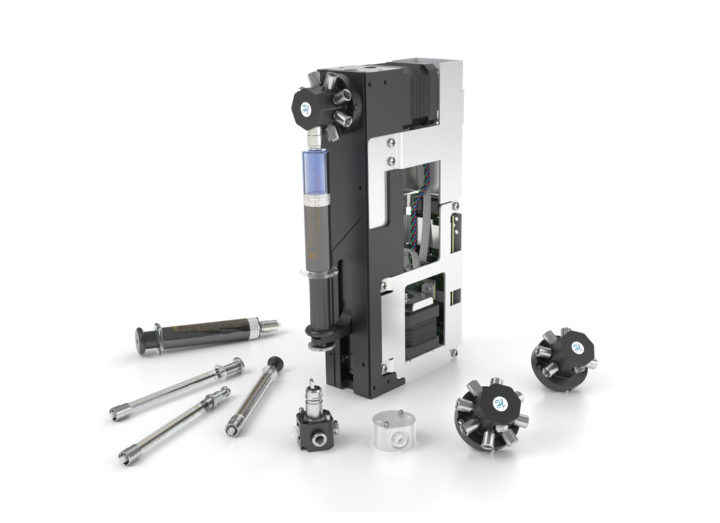

The PSD/6 is Hamilton's newest syringe pump. Extending the PSD/4 design to use a 60 mm full-height syringe, increases the syringe capacity to 50 mL and increases the max dispense time to 16 hours.

  • 60 mm stroke length
  • Variety of mounting options — front, back, top, bottom, and side
  • Easy serviceability: Modular design allows quick plug and play replacement
  • RoHS and CE compliant

Request a Manual or CAD file

  • PSD/6 Pumps

    Part # / Ref # Description
    63133-01 PSD/6 Standard
    99196-01 PSD/6 High Lift Force
    99197-01 PSD/6 High Valve Torque
    99198-01 PSD/6 High Valve Torque and Lift Force
    99199-01 PSD/6 Smooth Flow
  • PSD/6 Syringes

    Part # / Ref # Description
    80222 25 µL, Model 1702 TLLX SYR, Instrument Syringe
    80922 50 µL, Model 1705 TLLX SYR, Instrument Syringe
    81022 100 µL, Model 1710 TLLX SYR, Instrument Syringe
    81122 250 µL, Model 1725 TLLX SYR, Instrument Syringe
    81222 500 µL, Model 1750 TLLX SYR, Instrument Syringe
    81323 1 mL, Model 1001 TLLX SYR, Instrument Syringe w/ Adjustable Stop Collar
    81420 2.5 mL Gastight Syringe Model 1002 TLL, PTFE Luer Lock, Needle Sold Separately
    81520 5 mL Gastight Syringe Model 1005 TLL, PTFE Luer Lock, Needle Sold Separately
    81620 10 mL Gastight Syringe Model 1010 TLL, PTFE Luer Lock, Needle Sold Separately
    82521 25 mL, Model 1025 TLL no Flange SYR, NDL Sold Separately
    8300-15 50 µL, Model 1705 TLL SYR, Long Life Instrument Syringe
    8300-20 100 µL, Model 1710 TLL SYR, Long Life Instrument Syringe
    8300-25 250 µL, Model 1725 TLL SYR, Long Life Instrument Syringe
    8300-30 500 µL, Model 1750 TLL SYR, Long Life Instrument Syringe
    8300-35 1 mL, Model 1001 TLL SYR, Long Life Instrument Syringe
    8300-40 2.5 mL, Model 1002 TLL SYR, Long Life Instrument Syringe
    8300-45 5 mL, Model 1005 TLL SYR, Long Life Instrument Syringe
    8300-50 10 mL, Model 1010 TLL SYR, Long Life Instrument Syringe
    85021 50 mL, Model 1050 TLL no Flange SYR, NDL Sold Separately
  • PSD/6 Valves

    Part # / Ref # Description
    57252-01 "Y" PTFE, HV, VALVE, PSD/4
    58889-01 VALVE, PTFE, HV, 3-3, PSD/4/6/8
    59943-01 VALVE, CERAMIC, HVCX 8-5 1025/1050
    7991-01 VALVE, CERAMIC, HVC, 3-5, PSD/4
    7992-01 VALVE, CERAMIC, HVCX, 4-5, PSD/4
    7993-01 VALVE, CERAMIC, HVCX, 8-5, PSD/4
    8063-01 VALVE, CERAMIC, HVC, 3-3, PSD/4
    8778-01 Y CERAMIC VALVE, PSD/4
    9234-01 VALVE, CERAMIC, 4-2, PSD/4
    9537-01 "Y" CTFE MANIFOLD VALVE BLOCK, PSD4
    9998-01 VALVE, CERAMIC, HVCX, 6-5, PSD4
  • PSD/6 Starter Kit

    Part # / Ref # Description
    57025-01 Demo Communication Cable for PSD/4, MVP/4 and PSD/6
    64316-04 Starter Kit for the PSD/4, MVP/4 and PSD/6

Syringe Pump Specifications

PSD/6 Type
Highest Resolution
(steps/stroke)
Fastest/Slowest
(time/stroke)
Size = D X H X W
(in)
Linear Force Capability
(lbf)
Valve Torque Capability
(in oz)
Weight
(lbs)
Standard
48,000
2 sec / 100 min
4.2 x 8.99 x 1.75
20
25
3.65
Smooth Flow
384,000
28.2 sec / 960 min
4.2 x 8.99 x 1.75
22
25
3.77
High Lift Force
109,714
8.1 sec / 228.6 min
4.2 x 8.99 x 1.75
40
25
3.65
High Valve Torque
48,000
2 sec / 100 min
4.99 x 8.99 x 1.75
20
75
4.22
High Valve Torque and Lift Force
109,714
8.1 sec / 228.6 min
4.99 x 8.99 x 1.75
40
75
4.22
