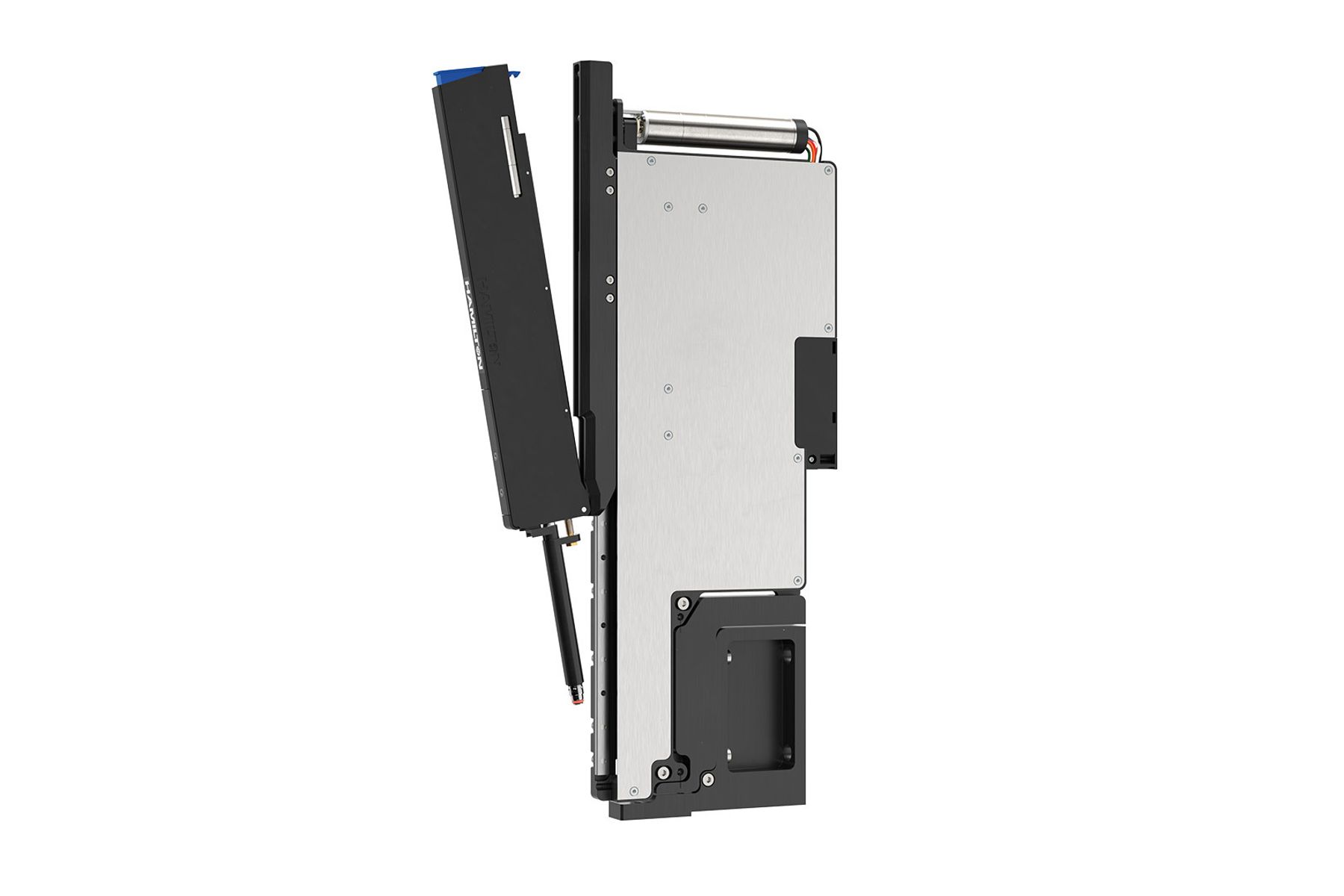

ZEUS X1 Automated Air Displacement Pipette, PN: 6606801-01

Part # 6606801-01

ZEUS X1 (Z-Excursion Universal Sampler™ - eXchange Series 1mL) is a pipetting module designed for seamless integration. Combining Hamilton’s revolutionary air displacement pipetting technology with the CO-RE® II (compressed O-ring expansion) technology puts you far ahead of the industry, guaranteeing accurate and precise liquid handling from 1 µL to 1 mL.

Receive More Information

Minimum: 1, Maximum: 1000

ZEUS X1 Automated Air Displacement Pipette, PN: 6606801-01 Specifications

Print
Accuracy <1% at 1000 µL, <5% at 1 µL
Precision <0.75% at 1000 µL, <4% at 1 µL
Weight 1075 g
Power Requirements 36.9-50 VDC, 2 A
Communication Interface CAN (Hamilton protocol), FCC connector
Baud Rate 125,500 kBaud (others on request)
Operating Temp High 32 °C (90 °F)
Operating Temp Low 18 °C (64 °F)
Operating Humidity 15% to 85% (no condensation, indoors)
Storage Temp High 70 °C (158 °F)
Storage Temp Low -25 °C (-13 °F)
Storage Humidity 15% to 85% (no condensation, indoors)
z-Drive Excursion 200 mm
z-Drive Resolution 0.1 mm
z-Drive Maximum Speed 350 mm/sec
Volume Range 1 - 1,000 µL
Pipetting Resolution 0.1 µL
Maximum Pipetting Speed 1,428 µL/s (peak speed)
Pipetting Mode Single and aliquot dispensing
Tip Detection Yes
Liquid Level Detection Pressure-based (pLLD) and capacitive detection (cLLD)
Pipetting Security Qualitative Pipette Monitoring (QPM) Anti-Droplet Control (ADC)
Operating Noise < 60 dBA, Indoor use only
Device Addressing up to 31 modules on a single CAN bus
Dimensions (D x H x W) 161 mm x 335 mm x 16 mm
Compatible CO-RE®II Tips 10 µL, 50 µL, 300 µL, 1 000 µL
RoHS Compliant Yes
