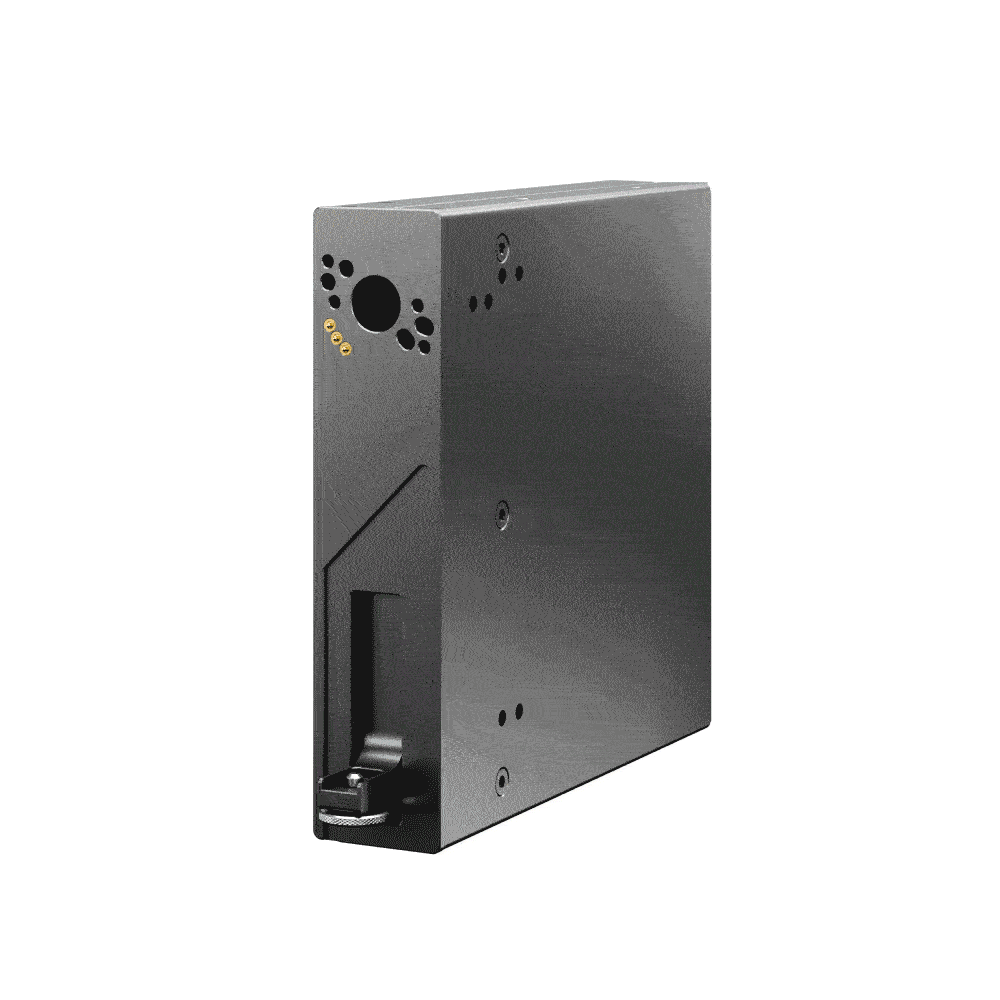

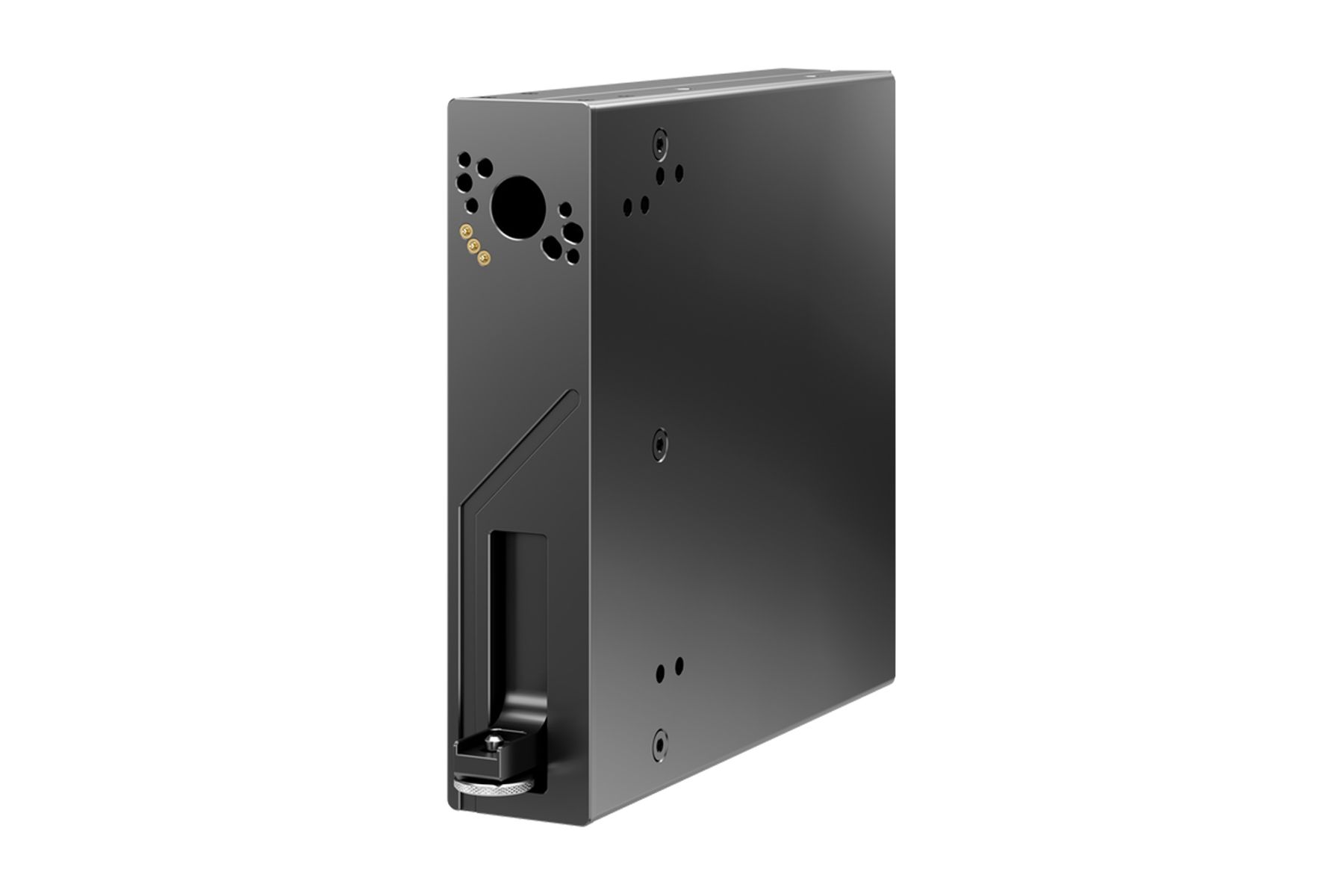

PSD SmartSense Pro, PN: 10167207

30 mm stroke length, smart detection capability

Part # 10167207

This intelligent syringe pump (PN: 10167207) combines the compact design with SmartSense auto-detection to streamline setup and improve integration. Compatible with a variety of Smart syringes and valves, the PSD SmartSense delivers precise, repeatable dispensing with minimal manual configuration.

Receive More Information

Minimum: 1, Maximum: 1000

PSD SmartSense Pro, PN: 10167207 Details

The PSD SmartSense Pro (PN: 10167207) is a compact OEM syringe pump that ensures fast, reliable fluid handling with SmartSense-enabled auto-recognition of syringes and valves. Designed for high-performance OEM applications it delivers high-resolution dispensing, offering enhanced accuracy (±0.5% at full stroke) and fine control with up to 3,510,836 microsteps per stroke. With a 30 mm stroke and support for volumes from 12.5 μL to 2.5 mL, it delivers accurate performance in a small footprint. Built-in support for Smart pressure and bubble sensors enables closed-loop monitoring and safety in applications where precision and reliability are non-negotiable.

High-resolution microstepping ensures steady plunger movement, supporting smooth flow with minimal pulsation

Smart auto-detection and software-guided setup minimize development effort

Built for embedded OEM use without compromising on precision or durability

SmartSense Valves

When paired with Smart Valves and Smart Syringes, the PSD SmartSense offers automatic valve configuration and syringe volume detection for optimal process control.

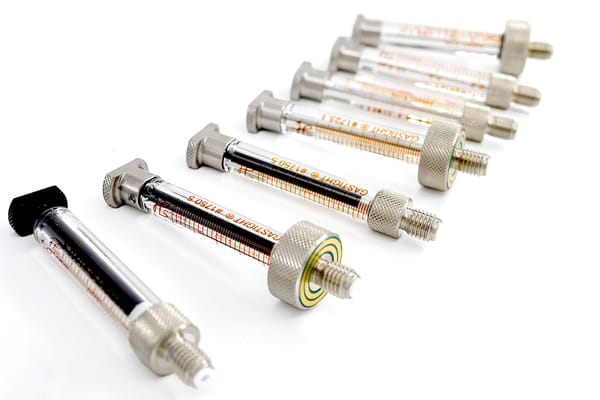

Smart Syringe Recognition

  • Embedded technology enables automatic identification of syringe volume and type by the PSD SmartSense pump
  • No need for manual input or configuration during setup

PSD SmartSense Pro, PN: 10167207 Specifications

Print
Accuracy ±0.5% @ 100% of stroke
Precision ≤ 0.05% @ 100% stroke
Fluid Path Borosilicate glass, PTFE, PFA, CTFE, or ceramic
Weight 1.25 kg ± 0.1 kg
Power Requirements 24 VDC, 900 mA maximum, 2A maximum
Syringe Drive Mechanism Stepper motor driven lead screw and optical encoder
Syringe Speed 10 second to 16.25 hours stroke
Syringe Stroke Length 30 mm
Syringe Resolution Selectable up to 3,510,836 microsteps
Syringe Drive Linear Force Capability 14 lbf (6.35 kgf)
Valve Drive Type Direct Drive DC stepper motor with 1-degree resolution and optical encoder
Valve Drive Speed 400ms per 360-degree rotation
Valve Fittings ¼-28 TLL
Communication Interface RS-232, RS-485, CAN and USB
Communication Protocol Terminal and Standard
Baud Rate 9600 or 38400 (RS-232, RS-485) and 100,000 or 125,000 (CAN)
Data Bits 8
Parity None
Stop Bit 1, Half duplex
Daisy Chain Length Up to 16 syringe pumps or valve positioners
Operating Temp High 40 °C (105 °F)
Operating Temp Low 15 °C (60 °F)
Operating Humidity 20% to 95%, non-condensing
Storage Temp High 65 °C (150 °F)
Storage Temp Low -20 °C (-4 °F)
Storage Humidity 20% to 95%, non-condensing
Dimensions (D x H x W) 163.5 mm (± 1 mm) x 133 mm (± 1 mm) x 30.5 mm (± 1 mm)
RoHS Compliant Yes
