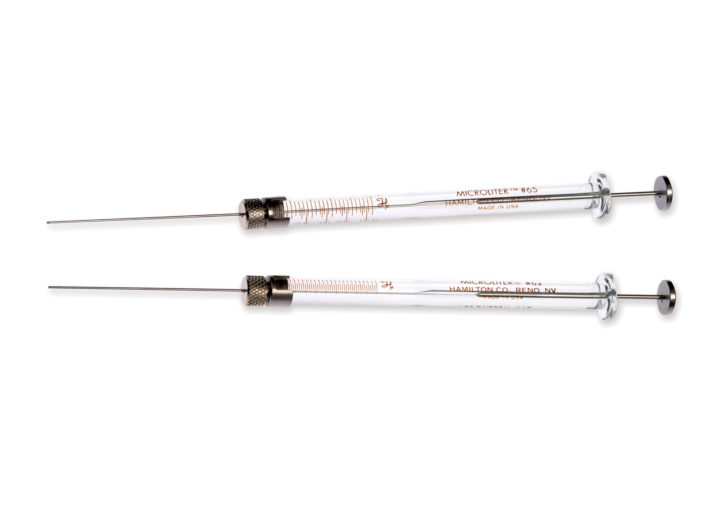

The 600 series syringes are a half stroke version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 0.25 μL up to 5 μL. The 600 series is often used in applications that require one handed operation because of the short stroke length and the reinforced plunger.
|Model Number||Volume||Barrel Inner Diameter||Stroke Length||Operating Pressure||Operating Temperature|
|62||2.5 µL||0.34 mm||27 mm||14 MPa||10 - 115 °C1|
|65||5 µL||0.48 mm||27 mm||14 MPa||10 - 115 °C1|
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Hamilton Needle Point Style GuideHamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
Needle Gauge ChartIn addition to being inert stainless steel, lab needles require proper sizing in order to function properly. The diameter of a needle is defined by its gauge. In addition to being inert stainless steel, lab needles require proper sizing in order to function properly. Hamilton company offers a wide spectrum of gauges. This index displays the internal and outer dimensions as well as the dead volume.
Work with R&D engineers to customize Hamilton parts
Hamilton's "Custom Built" program puts you directly in contact with a Hamilton R&D Engineer to discuss your application and product needs. The engineer will point you to a standard solution or propose a customized solution to meet your needs.Talk to an engineer
