Microlab 700, Single Syringe Dispenser, PN: 10103460

ML720-DIS

Part # 10103460

This Microlab 700 Single Syringe Dispenser with Premium controller, PN: 10103460 is designed to increase the throughput and repeatability of any manual pipetting application. Have confidence in your semi-automated liquid handling, diluting, and dispensing processes with 99%+ accuracy and a highly inert fluid path for even the most sensitive techniques.

Receive More Information

This product is not available for purchase in your region.

Microlab 700, Single Syringe Dispenser, PN: 10103460 Details

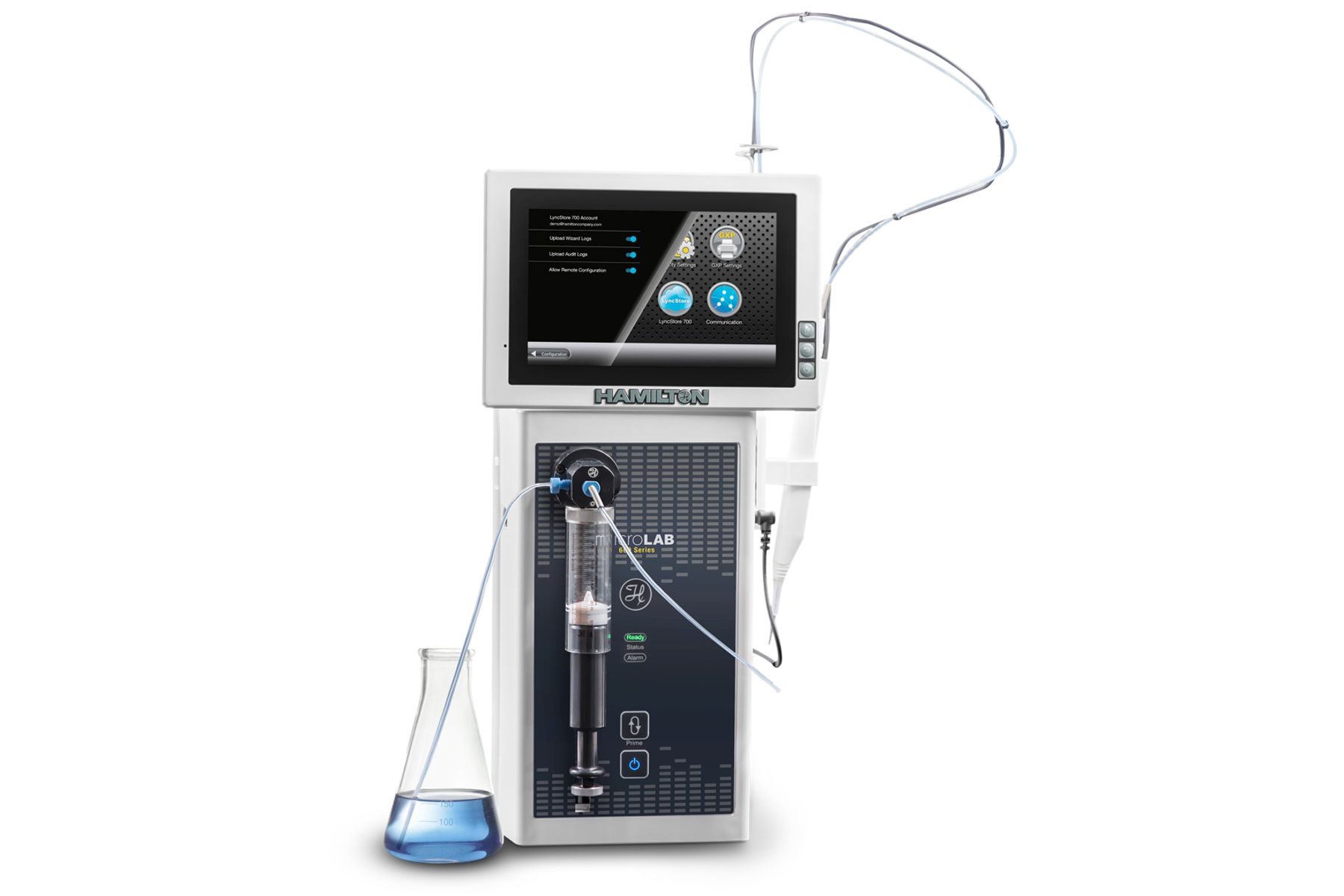

Hamilton's Microlab 700 Single Syringe Dispenser with Premium controller, PN:10103460, ML720-DIS setup is designed to dispense precise volumes of liquid from a reservoir out through a hand probe. It has a single valve that connects the syringe to tubing.

Includes: (1) Single Syringe Pump, (1) Premium Controller, (1) Concorde Hand Probe, (1) Valve (Left), (1) Fill Tubing Assembly, (1) Syringe*, (1) Dispense Tubing Assembly, (1) Valve Plug, (1) Tubing Clip, (1) Power Supply/ Cord.

*Syringe volume must be selected

Common applications Analytical Chemistry, Liquid Chromatography-Mass Spectrometry, Dilutions and Dispensing

Increased Efficiency & Throughput

Integrated Data Management with LyncStore 700

Single Syringe Operation

  • Designed with a single syringe setup, the dispenser offers efficient, high-precision fluid handling when only one reagent or sample is needed
  • A practical, space-saving solution for laboratories in pharmaceutical, biotech, and chemical industries that don’t require dual-syringe operations

LyncStore 700 Integration

  • Grants access to LyncStore, Hamilton’s cloud-based management platform for Microlab 700
  • Enables remote log management, automatic backups, audit trail archiving, and data export/import
Scientific Citations

Microlab 700, Single Syringe Dispenser, PN: 10103460 Specifications

Print
Power Rating 24 VDC, 2.5A
Power Requirements 100-240V 1.5A max 50-60 Hz
Program Memory 2 GB
Valve Setup Single Syringe Dispenser
Syringe Drive Mechanism Stepper motor driven high precision lead screw with encoder
Controller Premium
Number of Syringe Drives One
Probe Concorde CT Hand Probe
Syringes Included Includes one user selected syringe
Fluid Path Materials FEP, CTFE, PTFE, Borosilicate Glass

Microlab 700, Single Syringe Dispenser, PN: 10103460 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Services
Installation Qualification & Operational Qualification

Validate correct configuration, functionality and regulatory compliance of your Microlab Diluter-Dispenser.

Application Support

Receive expert guidance to ensure you’re using your Microlab Diluter-Dispenser instrument to its full potential.

Single Package Maintenance

Whether you need maintenance, testing, or repair, we provide reliable support for your Microlab Diluter-Dispenser single-syringe system.

Prepaid Single Package Maintenance

Whether you need maintenance, testing, or repair, we provide reliable support for your Microlab Diluter-Dispenser single-syringe system with this prepaid service.
