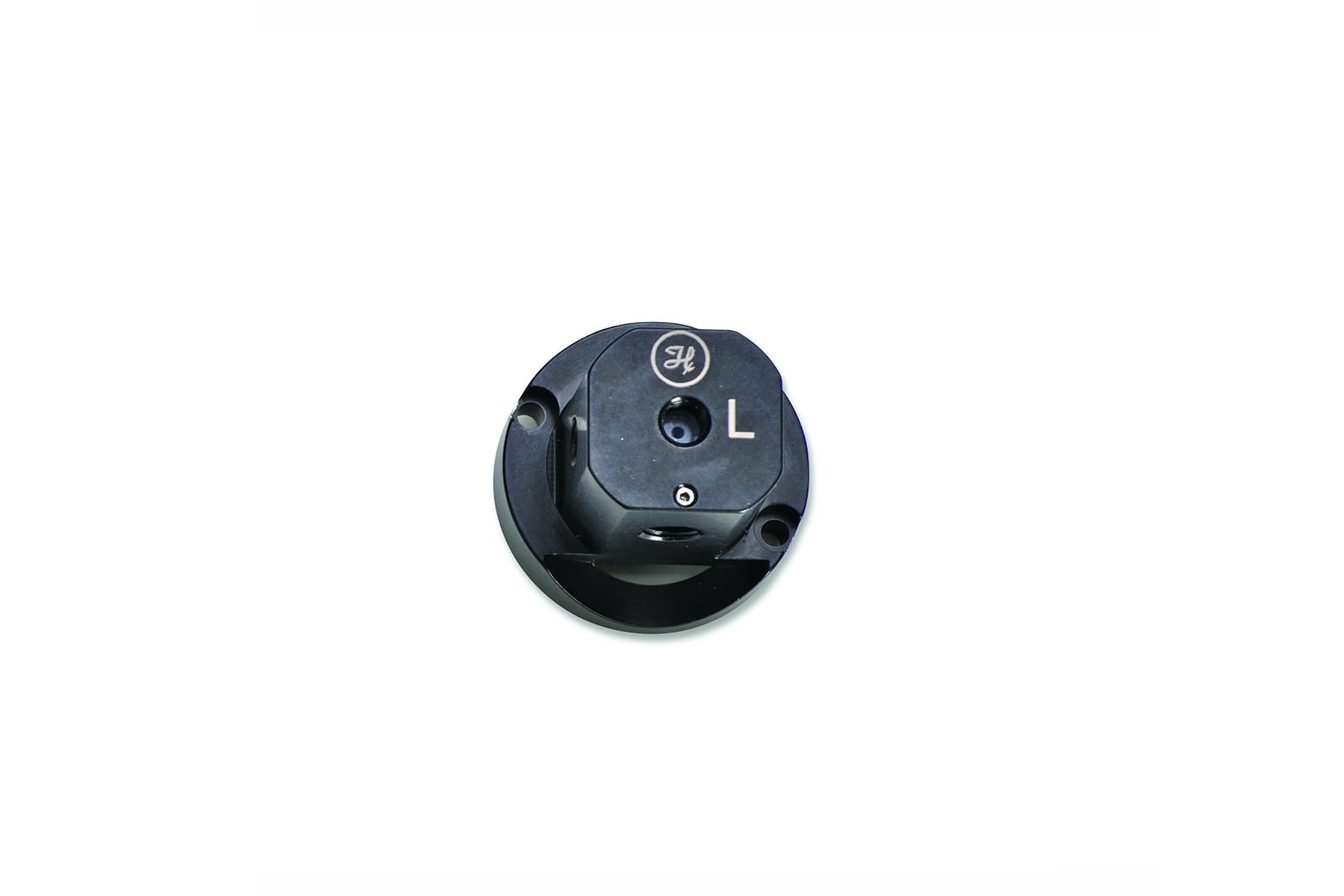

Microlab 600 Universal Valve - Left

Part # 60676-01

​​The user-replaceable left universal valve supports single, dual, and continuous dispensing as well as diluting using a Microlab 600 Series Dispenser or Diluter.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Microlab 600 Valves

  • Featuring "L" and "R" labels for easy left/right replacement, these valves are compatible with all Microlab 600 diluting and dispensing applications.
Scientific Citations

Microlab 600 Universal Valve - Left Specifications

Print
Valve Model Description Microlab 600 Universal Valve Left
Fluid Path PTFE/CTFE
Nominal Port Diameter 0.059 inch (1.5 mm)
Housing Material PEEK
Actuated All Microlab 600 instruments
Break Away Torque 65 in oz. (455 mNm)
Panel Mounting No
Threaded Connection ¼-28
Operating Temp High 38 °C (100 °F)
Operating Temp Low -12 °C (10 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 38 °C (100 °F)
Storage Temp Low -18 °C (0 °F)

Compatibility with Hamilton Devices
