OxyGold G 120

OxyGold G traditional dissolved oxygen sensors are well suited for trace level oxygen measurement applications such as boiler feedwater and pure water used in microelectronic rinse. The sensor offers an industry standard VP connector with a traditional nanoamp (nA) current output for connection with most commercially available controllers and transmitters

OxyGold G 225

OxyGold G traditional dissolved oxygen sensors are well suited for trace level oxygen measurement applications such as boiler feedwater and pure water used in microelectronic rinse. The sensor offers an industry standard VP connector with a traditional nanoamp (nA) current output for connection with most commercially available controllers and transmitters

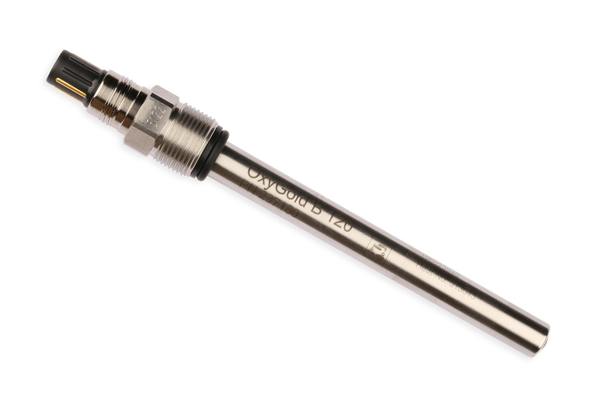

OxyGold B 120

OxyGold B traditional dissolved oxygen sensors are well suited for applications that contain carbon dioxide or other acidic gases. The sensor offers an industry standard VP connector with a traditional nanoamp (nA) output for connection with most commercially available controllers and transmitters.

OxyGold B 225

OxyGold B traditional dissolved oxygen sensors are well suited for applications that contain carbon dioxide or other acidic gases. The sensor offers an industry standard VP connector with a traditional nanoamp (nA) output for connection with most commercially available controllers and transmitters.

OxyGold G Arc 120

The OxyGold G Arc polarographic dissolved oxygen sensors are a great solution for trace part-per-billion oxygen measurement combined with Arc intelligent sensor technology. Industry standard 4 - 20mA and Modbus outputs allow the OxyGold G to be directly connected to the PCS control system with no need for a transmitter or controller. All configuration and calibration can be accomplished through ArcAir software.

OxyGold G Arc 225

The OxyGold G Arc polarographic dissolved oxygen sensors are a great solution for trace part-per-billion oxygen measurement combined with Arc intelligent sensor technology. Industry standard 4 - 20mA and Modbus outputs allow the OxyGold G to be directly connected to the PCS control system with no need for a transmitter or controller. All configuration and calibration can be accomplished through ArcAir software.

Process Connection PG13,5

Sensor Family OxyGold G

Sensor Family OxyGold B

Sensor Family OxyGold G

Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
FKM (Fluorocarbon Elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document

Electrical Connector VP6

Electrical Connector VP8

Measuring Range 1 ppb to 40 ppm (DO) or 0.02 to 1000 mbar (pO₂)

Measuring Range 8 ppb to 40 ppm (DO) or 0.2 to 1000 mbar (pO₂)

Measuring Range 1 ppb to 40 ppm (DO) or 0.02 to 1000 mbar (pO₂)

Electrolyte Oxylyte G

Electrolyte Oxylyte B

Electrolyte Oxylyte G

Drift at Room Temperature < 1 % per week

Membrane Cap Standard

Oxygen Consumption Ca. 100 ng/h in air at 25 °C

Temperature Sensor NTC 22 kOhm

Current in Air at 25 °C 180 to 500 nA

Current in Air at 25 °C —

O-ring Material —

Surface Quality of Steel Ra < 0.4 µm (N5)

Electrode system Silver platinum combination

Polarization Voltage and Time -670 ± 50 mV, ≥ 2 hours

Polarization Voltage and Time 0 ± 50 mV, ≥ 24 hours

Polarization Voltage and Time -670 ± 50 mV, ≥ 2 hours

Serial Number Yes

Response Time t98% < 60 s at 25 °C

Response Time t98% 30 to 60 s at 25 °C, from air to nitrogen

Certificate Material and Performance Test Certificate

Certificate Yes, with parameter settings and materials used

ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db

ATEX Approval No

IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db

IECEx Approval —

Diameter 12 mm

Autoclavable Yes

Autoclavable No

Autoclavable Yes

Steam Sterilizable Yes

Steam Sterilizable No

Steam Sterilizable Yes

CIP Yes

Operating Temperature Range 0 to 130 °C

Operating Temperature Range 0 to 100 °C

Operating Temperature Range Analog interface: 0 to 110 °C; Digital interface: 0 to 130 °C

Pressure Range bar g 0 to 12 bar

Max. CO₂ Partial Pressure 0.01 bar

Max. CO₂ Partial Pressure 12 bar

Max. CO₂ Partial Pressure 0.01 bar

Required Flow ≥ 0.1 m/s

a-length 120 mm

a-length 225 mm

a-length 120 mm

a-length 225 mm

a-length 120 mm

a-length 225 mm

Accuracy at 25 °C —

Accuracy at 25 °C ± 2 %

Configurable Values —

Configurable Values Dissolved oxygen (DO): mbar, %-sat, %-vol, μg/l ppb, mg/l ppm, ppm gas; Temperature: °C, °F, K

Analog Interface 1 —

Analog Interface 1 4 to 20 mA for DO, programmable

Analog Interface 2 —

Analog Interface 2 4 to 20 mA for Temp., programmable

Analog Interface 1 and 2 —

Analog Interface 1 and 2 Galvanically not isolated; pulse width modulation 3.5 kHz

Baud Rate —

Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd

Operating Voltage —

Operating Voltage 7 to 30 VDC max. 150 mW

Automatic Polarization —

Automatic Polarization Yes, max. 2 hours stabilisation time
